Alloy Steel Boiler Tubes, Superheater Tubes, Kub Exchanger Tubes
Loj: Sab Nraud Dia: 3/4 "mus rau 4", Phab Ntsa Thickness: 1mm txog 20mm
Standard: SA-213M T11, T12, T5, T9, SA-209M T1A,ASTM A335 Cov Lus Qhia Tshwj XeebP11, P22, P5, P9, GB / T 5103
Daim ntawv thov: Alloy Steel Tubes (Cov kav dej) yog cov raj kub siab Boiler, uas feem ntau yog siv rau Super Cua sov, Reheaters, Dej Phab Ntsa, Economizers ntawm Super Critical thiab Ultra Super Critical Boilers, Alloy Tubes yuav tsum muaj lub zog siab creep rupture.

txheem		chemical muaj pes tsawg leeg (%)	-	-	-	-	-	-	-	-	-	-	-	-	-
C	Si	Mn	P	S	Cr	Mo	Cu	Ni	V	Al	W	Ti	Nb	N	-
wb 3087	10	0.07-0.13	0.17-0.37	0.38-0.65	Tsawg dua lossis sib npaug rau 0.030	Tsawg dua lossis sib npaug rau 0.030	0.3-0.65	/	Tsawg dua lossis sib npaug rau 0.25	Tsawg dua lossis sib npaug rau 0.30	/	/	-	-	-
20	0.17-0.23	0.17-0.37	0.38-0.65	Tsawg dua lossis sib npaug rau 0.030	Tsawg dua lossis sib npaug rau 0.030	0.3-0.65	/	Tsawg dua lossis sib npaug rau 0.25	Tsawg dua lossis sib npaug rau 0.30	/	/	-	-	-	-
wb 5310	20G	0.17-0.24	0.17-0.37	0.35-0.65	Tsawg dua lossis sib npaug rau 0.030	Tsawg dua lossis sib npaug rau 0.030	Tsawg dua lossis sib npaug rau 0.25	Tsawg dua lossis sib npaug rau 0.15	Tsawg dua lossis sib npaug rau 0.20	Tsawg dua lossis sib npaug rau 0.25	Tsawg dua lossis sib npaug rau 0.08	-	-	-	-
20 MnG	0.17-0.24	0.17-0.37	0.70-1.00	Tsawg dua lossis sib npaug rau 0.030	Tsawg dua lossis sib npaug rau 0.030	Tsawg dua lossis sib npaug rau 0.25	Tsawg dua lossis sib npaug rau 0.15	Tsawg dua lossis sib npaug rau 0.20	Tsawg dua lossis sib npaug rau 0.25	Tsawg dua lossis sib npaug rau 0.08	-	-	-	-	-
25 MnG	0.18-0.24	0.17-0.37	0.80-1.10	Tsawg dua lossis sib npaug rau 0.030	Tsawg dua lossis sib npaug rau 0.030	Tsawg dua lossis sib npaug rau 0.25	Tsawg dua lossis sib npaug rau 0.15	Tsawg dua lossis sib npaug rau 0.20	Tsawg dua lossis sib npaug rau 0.25	Tsawg dua lossis sib npaug rau 0.08	-	-	-	-	-
15 CrMo	0.12-0.18	0.17-0.37	0.40-0.70	Tsawg dua lossis sib npaug rau 0.030	Tsawg dua lossis sib npaug rau 0.030	0.80-1.10	0.40-0.55	Tsawg dua lossis sib npaug rau 0.20	Tsawg dua lossis sib npaug rau 0.30	-	-	-	-	-	-
12Cr2MoG	0.08-0.15	Tsawg dua lossis sib npaug rau 0.50	0.40-0.70	Tsawg dua lossis sib npaug rau 0.030	Tsawg dua lossis sib npaug rau 0.030	2.00-2.50	0.90-1.20	Tsawg dua lossis sib npaug rau 0.20	Tsawg dua lossis sib npaug rau 0.30	-	-	-	-	-	-
12Cr1MoV	0.08-0.15	0.17-0.37	0.40-0.70	Tsawg dua lossis sib npaug rau 0.030	Tsawg dua lossis sib npaug rau 0.030	0.90-1.20	0.25-0.35	Tsawg dua lossis sib npaug rau 0.20	Tsawg dua lossis sib npaug rau 0.30	0.15-0.30	-	-	-	-	-
12Cr2MoWVTiB	0.08-0.15	0.45-0.75	0.45-0.65	Tsawg dua lossis sib npaug rau 0.030	Tsawg dua lossis sib npaug rau 0.030	1.60-2.10	0.50-0.65	Tsawg dua lossis sib npaug rau 0.20	Tsawg dua lossis sib npaug rau 0.30	0.28-0.42	-	0.30-0.55	0.08-0.15	B 0.002-0.008	-
10Cr9Mo1VNb	0.08-0.12	0.20-0.50	0.30-0.60	Tsawg dua lossis sib npaug rau 0.020	Tsawg dua lossis sib npaug rau 0.010	8.00-9.50	0.85-1.05	Tsawg dua lossis sib npaug rau 0.20	Tsawg dua lossis sib npaug rau 0.40	0.18-0.25	Tsawg dua lossis sib npaug rau 0.015	-	-	0.06-0.10	0.03-0.07
ASME SA210	SA210A -1	0.13-0.19	Ntau dua lossis sib npaug rau 0.1	0.45-0.65	Tsawg dua lossis sib npaug rau 0.030	Tsawg dua lossis sib npaug rau 0.030	-	-	-	-	-	-	-	-	-
SA 210 C	0.18-0.24	Ntau dua lossis sib npaug rau 0.1	0.80-1.10	Tsawg dua lossis sib npaug rau 0.030	Tsawg dua lossis sib npaug rau 0.030	-	-	-	-	-	-	-	-	-	-
ASME SA213	TIAB SA 213 T11	0.05-0.15	0.50-1.0	0.30-0.60	Tsawg dua lossis sib npaug rau 0.030	Tsawg dua lossis sib npaug rau 0.030	1.00-1.50	0.50-1.00	-	-	-	-	-	-	-
TIAB SA 213 T12	0.05-0.15	Tsawg dua lossis sib npaug rau 0.50	0.30-0.61	Tsawg dua lossis sib npaug rau 0.030	Tsawg dua lossis sib npaug rau 0.030	0.80-1.25	0.44-0.65	-	-	-	-	-	-	-	-
TIAB SA 213 T22	0.05-0.15	Tsawg dua lossis sib npaug rau 0.50	0.30-0.60	Tsawg dua lossis sib npaug rau 0.030	Tsawg dua lossis sib npaug rau 0.010	1.90-2.60	0.87-1.13	-	-	-	-	-	-	-	-
TIAB SA 213 T23	0.04-0.10	Tsawg dua lossis sib npaug rau 0.50	0.10-0.60	Tsawg dua lossis sib npaug rau 0.030	Tsawg dua lossis sib npaug rau 0.030	1.90-2.60	0.05-0.30	-	-	-	Tsawg dua lossis sib npaug rau 0.030	1.45-1.75	B 0.0005-0.006	0.02-0.08	Tsawg dua lossis sib npaug rau 0.040
TIAB SA 213 T91	0.08-0.12	0.20-0.50	0.30-0.60	Tsawg dua lossis sib npaug rau 0.020	Tsawg dua lossis sib npaug rau 0.010	8.00-9.50	0.85-1.05	-	Tsawg dua lossis sib npaug rau 0.40	0.18-0.25	Tsawg dua lossis sib npaug rau 0.015	-	-	0.06-0.10	0.03-0.07
TIAB SA 213 T92	0.07-0.13	Tsawg dua lossis sib npaug rau 0.50	0.30-0.60	Tsawg dua lossis sib npaug rau 0.020	Tsawg dua lossis sib npaug rau 0.010	8.50-9.50	0.30-0.60	-	Tsawg dua lossis sib npaug rau 0.40	0.15-0.25	Tsawg dua lossis sib npaug rau 0.015	1.50-2.00	B 0.001-0.006	0.04-0.09	0.03-0.07
TIAB SA 17175	ST45.8 / Ⅲ	Tsawg dua lossis sib npaug rau 0.21	0.10-0.35	0.40-1.20	Tsawg dua lossis sib npaug rau 0.040	Tsawg dua lossis sib npaug rau 0.040	-	-	-	-	-	-	-	-	-
15 hmo 3	0.12-0.20	0.10-0.35	0.40-0.80	Tsawg dua lossis sib npaug rau 0.035	Tsawg dua lossis sib npaug rau 0.035	-	0.25-0.35	-	-	-	-	-	-	-	-
13 CrMo44	0.10-0.18	0.10-0.35	0.40-0.70	Tsawg dua lossis sib npaug rau 0.035	Tsawg dua lossis sib npaug rau 0.035	0.70-1.10	0.45-0.65	-	-	-	-	-	-	-	-
10 CrMo910	0.08-0.15	Tsawg dua lossis sib npaug rau 0.50	0.30-0.70	Tsawg dua lossis sib npaug rau 0.025	Tsawg dua lossis sib npaug rau 0.020	2.00-2.50	0.90-1.10	Tsawg dua lossis sib npaug rau 0.30	Tsawg dua lossis sib npaug rau 0.30	-	Tsawg dua lossis sib npaug rau 0.015	-	-	-	-

txheem		Tensile zog (MPa)	Yield zog (MPa)	Elongation (%)	tawv
wb 3087	10#	335-475	Ntau dua lossis sib npaug rau 195	Ntau dua lossis sib npaug li 24	/
20#	410-550	Ntau dua lossis sib npaug li 245	Ntau dua lossis sib npaug li 20	/	-
GB / T5310	20G	410-550	Ntau dua lossis sib npaug li 245	Ntau dua lossis sib npaug li 24	/
20 MnG	Ntau dua lossis sib npaug rau 415	Ntau dua lossis sib npaug li 240	Ntau dua lossis sib npaug 22	/	-
25 MnG	Ntau dua lossis sib npaug rau 485	Ntau dua lossis sib npaug li 275	Ntau dua lossis sib npaug li 20	/	-
15 CrMoG	440-640	Ntau dua lossis sib npaug rau 235	Ntau dua lossis sib npaug li 21	/	-
12Cr2MoG	450-600	Ntau dua lossis sib npaug li 280	Ntau dua lossis sib npaug li 20	/	-
12Cr1MoVG	470-640	Ntau dua lossis sib npaug li 255	Ntau dua lossis sib npaug li 21	/	-
12Cr2MoWVTiB	540-735	Ntau dua lossis sib npaug rau 345	Ntau dua lossis sib npaug li 18	/	-
10Cr9Mo1VNb	Ntau dua lossis sib npaug li 585	Ntau dua lossis sib npaug rau 415	Ntau dua lossis sib npaug li 20	/	-
ASME SA210	SA210A -1	Ntau dua lossis sib npaug rau 415	Ntau dua lossis sib npaug li 255	Ntau tshaj los yog sib npaug rau 30	Tsawg dua lossis sib npaug rau 143HB
SA 210 C	Ntau dua lossis sib npaug rau 485	Ntau dua lossis sib npaug li 275	Ntau tshaj los yog sib npaug rau 30	Tsawg dua lossis sib npaug rau 179HB	-
ASME SA213	TIAB SA 213 T11	Ntau dua lossis sib npaug rau 415	Ntau dua lossis sib npaug rau 205	Ntau tshaj los yog sib npaug rau 30	Tsawg dua lossis sib npaug rau 163HB
TIAB SA 213 T12	Ntau dua lossis sib npaug rau 415	Ntau tshaj los yog sib npaug rau 220	Ntau tshaj los yog sib npaug rau 30	Tsawg dua lossis sib npaug rau 163HB	-
TIAB SA 213 T22	Ntau dua lossis sib npaug rau 415	Ntau dua lossis sib npaug rau 205	Ntau tshaj los yog sib npaug rau 30	Tsawg dua lossis sib npaug rau 163HB	-
TIAB SA 213 T23	Ntau dua lossis sib npaug li 510	Ntau dua lossis sib npaug li 400	Ntau dua lossis sib npaug li 20	Tsawg dua lossis sib npaug rau 220HB	-
TIAB SA 213 T91	Ntau dua lossis sib npaug li 585	Ntau dua lossis sib npaug rau 415	Ntau dua lossis sib npaug li 20	Tsawg dua lossis sib npaug li 250HB	-
TIAB SA 213 T92	Ntau dua lossis sib npaug rau 620	Ntau dua lossis sib npaug li 440	Ntau dua lossis sib npaug li 20	Tsawg dua lossis sib npaug li 250HB	-
DIN17175	ST45.8 / Ⅲ	410-530	Ntau dua lossis sib npaug li 255	Ntau dua lossis sib npaug li 21	/
15 hmo 3	450-600	Ntau dua lossis sib npaug li 270	Ntau dua lossis sib npaug 22	/	-
13 CrMo44	440-590	Ntau dua lossis sib npaug li 290	Ntau dua lossis sib npaug 22	/	-
10 CrMo910	480-630	Ntau dua lossis sib npaug li 280	Ntau dua lossis sib npaug li 20	/	-

Alloy Seamless Steel Pipes

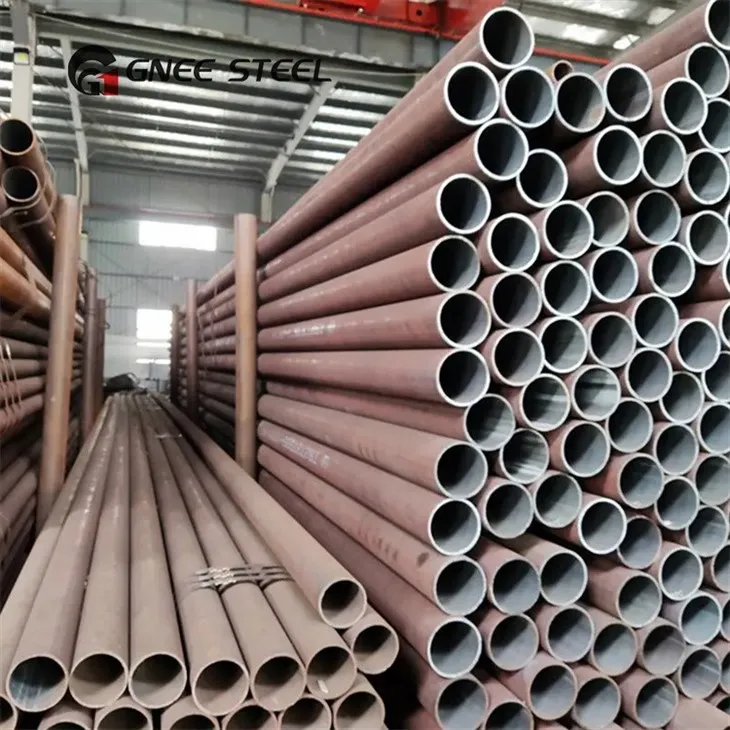

Alloy Steel Seamless Pipe

GNEE Cov kev pabcuam muaj nqis ntxiv
UT (Ultrasonic kuaj)
AR (Raws li Kub Rolled nkaus xwb)
TMCP (Thermal Mechanical Control Processing)
N (Normalized)

Gnee khoom daim ntawv pov thawj

Seamless Alloy Boiler Tube
