Raws li ib tug kws tshaj lij welded yeeb nkab exporter, GNEE muaj ntau tshaj 16 xyoo ntawm kev paub nyob rau hauv steel yeeb nkab export thiab muaj 12 EFW steel yeeb nkab ntau lawm kab nrog ib tug txhua xyoo tso zis ntawm 50, 000 tons.
Ntawm lawv, tus qauv loj ntawm ASTM A691 Gr 9Cr kav xa khoom yog NPS (Nominal Pipe Size) 1/4 nti mus rau 48 ntiv tes, thiab Teem caij yog SCH 10 txog SCH 160. Cov kav dej tuaj yeem kho tau raws li qhov kev xav tau tshwj xeeb. Qhov luaj li cas yog nyob ntawm qhov xav tau tiag tiag ntawm cov neeg siv khoom.
ASTM A691 9CR alloy kav yog siv dav hauv roj av, tshuaj, hluav taws xob, boiler thiab lwm yam kev lag luam.

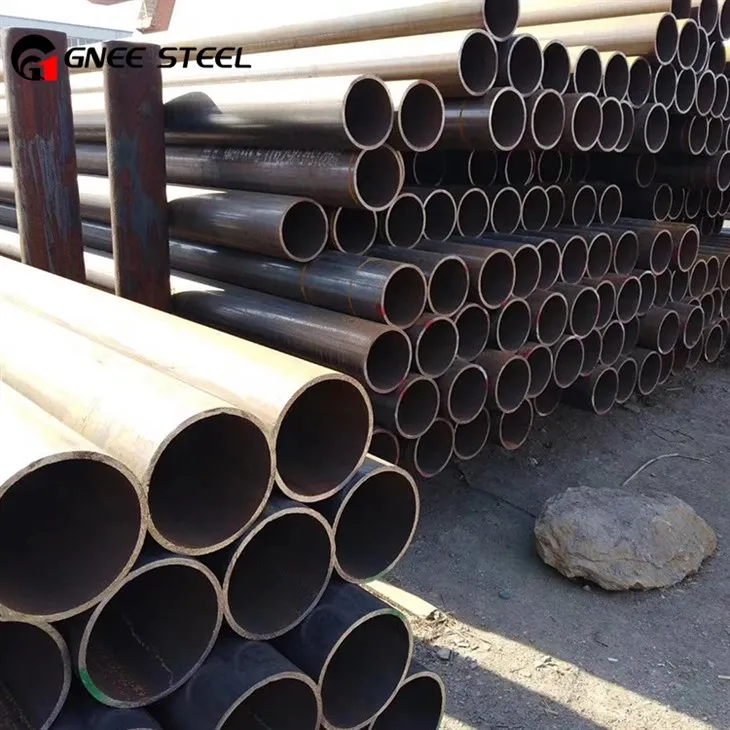

High Pressure Steel EFW Gr 9 Cr yeeb nkab
Tshuaj muaj pes tsawg leeg ntawm ASTM A691 Alloy Steel Gr 9Cr Pipes
| Qib | C | Si | Mn | P | S | Cr | Mo | V |
| Hlau alloy 9Cr | 0.15 | 1.00 | 00.30-0.60 | 0.025 | 0.025 | 8.00-10.00 | 0.90-1.10 | 0.04 |
Alloy Steel Gr 9Cr EFW Tube Mechanical Properties
| ASTM A691 Cov Lus Qhia Tshwj Xeeb | Qhov taw qhia tawm (N / mm2) | Tensile zog (N / mm2) | Elongation (%) |
| Alloy Steel Qib 9Cr | 205 feeb | 415 – 585 | 18 |
Specification ntawm A691 Alloy Steel Gr 9Cr Cl.42 EFW Pipes
Kev qhia: ASTM A691 / ASME SA691
Dimension Txuj: ANSI B36.19M, ANSI B36.10
Hom: EFW (Electric Fusion Welded Pipes)
Outer Diameter: 16 "NB txog 100" NB (Nominal Bore Size)
EFW Pipes : 6" NB - 24" NB
Ntev: 5 txog 7 Meters, 09 txog 13 Meters, Ib Leeg Random Length, Ob Chav Random Length Thiab Customize Loj
Pipe Ends: Plain Ends / Beveled Ends / threaded Ends / Coupling
Kev xa khoom: Raws li Rolled, Normalizing Rolled, Thermomechanical Rolled / Tsim, Normalizing Tsim, Normalized thiab Tempered / Quenched thiab Tempered - BR / N / Q / T
Ntim: Loose / Bundle / Ntoo Pallet / Ntoo Box / Plastic Cloth Wraps / Yas End Caps / Beveled Protector.
Qhov zoo ntawm Kev Xaiv GNEE A691 9 Cr Welded Pipes
GNEE raug xa tawm mus rau ntau dua 80 thaj chaw suav nrog South Asia, Middle East, South America, Africa, North America, thiab Europe.
GNEE tuaj yeem muab seamless / ERW / welded / fabricated thiab lwm yam ntau thiab tsawg. Cov duab yog round, square, rectangular, hydraulic thiab lwm yam.
