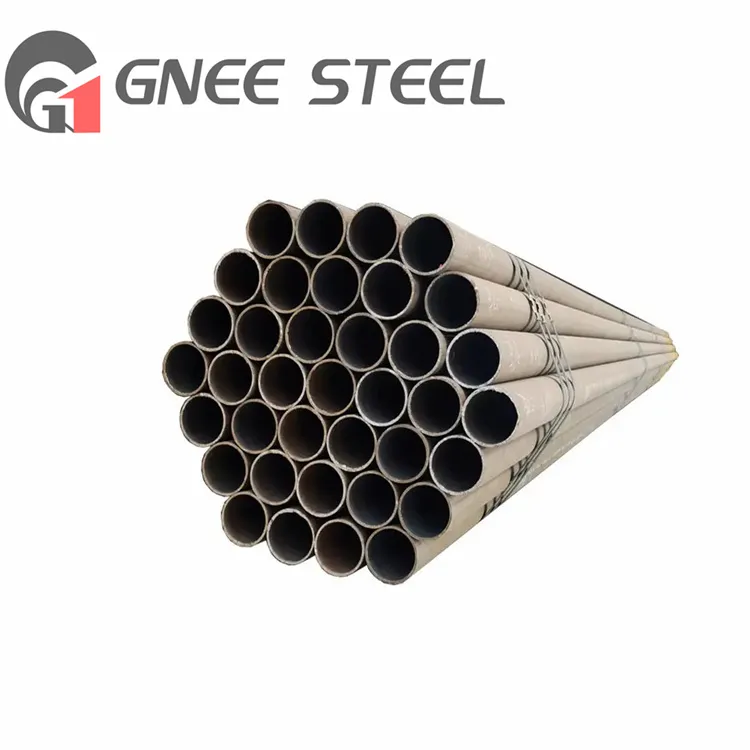

16Mo3 seamless alloy yeeb nkab
16Mo3 steel yeeb nkab yog chromium-molybdenum alloy hlau uas nws cov tshuaj muaj pes tsawg leeg yog tsim los ntawm chromium (Cr), molybdenum (Mo) thiab ib qho me me ntawm cov hlau impurities. Cov hlau alloy no muaj lub zog siab thiab kub ua haujlwm thiab tsim nyog rau kev ua haujlwm hauv qhov kub thiab txias ib puag ncig.
Cov khoom siv tshuab: 16Mo3 Cov yeeb nkab seamless muaj lub zog siab thiab tawv, nws lub zog tensile nyob nruab nrab ntawm 430-590MPa, thiab nws lub zog tawm los yog siab dua 280MPa. Cov khoom siv hluav taws xob: 16Mo3 steel hlau yeeb nkab muaj cov cua sov zoo thiab tuaj yeem ua haujlwm nyob rau hauv qhov kub thiab txias ib puag ncig ntev. Nws qhov kub-resistant kub yog nyob nruab nrab ntawm 450-600 degrees Celsius thiab muaj kev ruaj ntseg zoo thaum tshav kub kub-resistant. Corrosion kev ua tau zoo: 16Mo3 seamless alloy steel tubing muaj corrosion kuj zoo, stability zoo rau cov kua qaub, alkalis thiab oxides, thiab yog haum rau hnyav ua hauj lwm ib puag ncig.
16Mo3 Seamless Alloy Steel Yeeb Nkab / Tube Chemical Composition:
|
C, % |
Si,% |
Mn,% |
P, % |
S, % |
Mo,% |
|
0.12-0.20 |
0.35 max |
0.40-0.90 |
0.025 max |
0.020 max |
0.25-0.35 |
DIN17175 Seamless Steel Pipes Mechanical Properties:
|
Tensile zog, MPa |
Yield zog, MPa |
Elongation,% |
|
450-600 |
280 feeb |
22 feeb |
16Mo3 Cov Yeeb Nkab Sab Nraud & Ntev:
|
Kub dov |
Sab nraud txoj kab uas hla, mm |
Ua siab ntev |
|
OD Tsawg dua lossis sib npaug rau 219.1 |
± 1% lossis ± 0.5mm |
|
|
OD>219.1 |
± 1% lossis ± 0.5mm |
|
|
Txias Drawn |
Sab nraud txoj kab uas hla, mm |
Ua siab ntev |
|
OD Tsawg dua lossis sib npaug rau 114 |
± {{0}}.5% lossis ± 0.3mm |
16Mo3 Alloy Steel Round kav
Txheem: EN 10216-2
Cov qauv sib npaug: DIN 17175, ASTM A213, ASME SA213, ASTM A335, ASTM A / SA 209
Khoom siv: 16Mo3, 1.5415
Cov ntaub ntawv sib npaug: 15Mo3
Ntev: 5800mm; 6000mm; 10000mm; 11500mm; 11800mm; thiab lwm yam.
Max ntev: 25000mm
Daim ntawv thov thaj chaw: 16Mo3 Alloy Piping yog dav siv nyob rau hauv petrochemical, hluav taws xob fais fab, nuclear zog thiab boiler manufacturing industries. Nws yog feem ntau siv rau hauv kev tsim cov khoom siv xws li cov hlab ntsha siab, cov khoom siv hluav taws xob, cov kav dej boiler thiab chav turbine Cheebtsam.
Kev ua tau zoo: 16Mo3 muaj cov yas zoo thiab weldability, thiab tuaj yeem kho cua sov thiab ua haujlwm txias. Nws tuaj yeem ua tiav rau hauv qhov chaw ntawm ntau yam duab thiab ntau thiab tsawg los ntawm cov txheej txheem xws li kub dov, forging, vuam thiab txiav.
