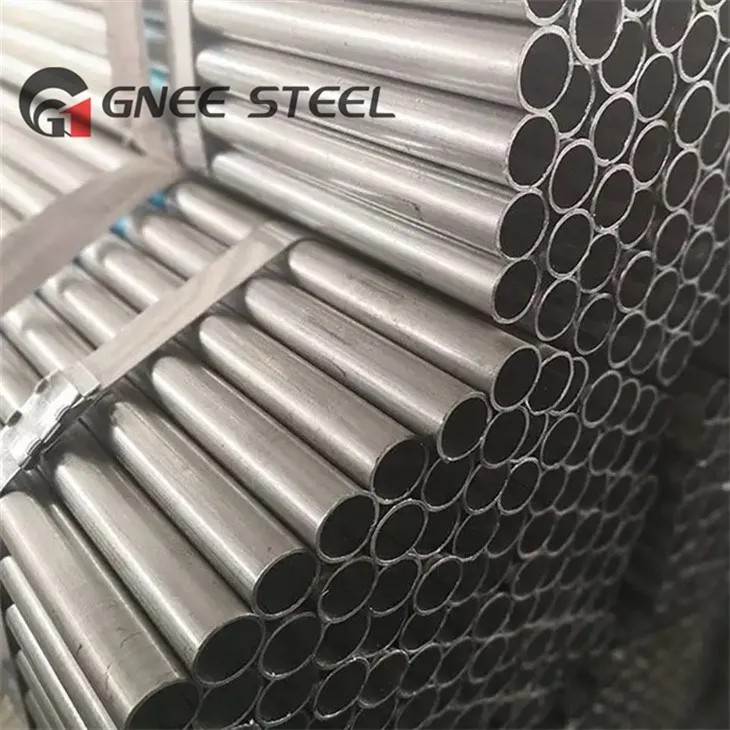

E215 txias drawn tube yog ib tug precision seamless steel raj ua raws li cov qauv tshwj xeeb (xws li EN 10305-1).
Tom qab txheej txheem kos duab khaub thuas, cov qauv siv lead ua kom muaj zog, thiab kev cuam tshuam tsis taus, yog li kev txhim kho lub hardness thiab lub zog. Yog li ntawd, E215 txias drawn seamless raj yog dav siv nyob rau hauv tsheb tsim, mechanical khoom, hydraulic systems, instrumentation thiab lwm yam teb, tshwj xeeb tshaj yog nyob rau hauv cov kua kis tau tus mob systems uas yuav tsum tau high precision thiab muaj kev ntseeg siab.
E215 Seamless Precision Hlau Tube
Qhov zoo ntawm Kev Xaiv GNEE E215 seamless precision raj
Raws li tus kws tshaj lij alloy steel yeeb nkab tsum, GNEE muaj 15 carbon steel yeeb nkab ntau lawm kab, 10 galvanized yeeb nkab ntau lawm kab, ua 150 tons ntawm steel kav ib hnub twg, thiab tag nrho cov kav dej muaj ntawv pov thawj thiab traceable, nrog rau lub cub tawg batch naj npawb luam nyob rau hauv txhua random ntev. . Ntxiv rau, EN 10305-1 seamless txias drawn kav,E235 precision kav, E355 precision kav, thiab lwm yam kuj muaj.
Yog tias koj tab tom nrhiav rau cov kav dej seamless, thov hu rau peb hauv lub sijhawm kom tau txais nqe lus!sales@gneetube.com
Txheem: EN 10305-1
Loj: 4mm -260mm
WT: 0.5mm-25mm
Puab: Round
Ntau hom: Txias kos los yog txias dov
Qib: E215, E235, E355
Chemical Composition (wt%) Ntawm E215 Carbon Steel Pipe
| Qib Steel | Chemical Components (%) | ||||||
| Lub npe hlau | Hlau Number | C max. |
Si max. |
Mn max. |
P max. |
S max. |
AL min. |
| E215 | 1.0212 | 0.10 | 0.05 | 0.7 | 0.025 | 0.025 | 0.025 |
Mechanical Properties Ntawm E215 Steel Pipe
| Mechanical zog ntawm chav tsev kub | |||||||||||||
| Qib Steel | Yam tsawg kawg nkaus rau qhov kev xa khoom | ||||||||||||
| Lub npe hlau | Hlau Number | +C | + LC | + SR | +A | +N | |||||||
| Rm Mpa |
A % |
Rm Mpa |
A % |
Rm Mpa |
ReH Mpa |
A % |
Rm Mpa |
A % |
Rm Mpa |
ReH Mpa |
A % |
||
| E215 | 1.0212 | 430 | 8 | 380 | 12 | 380 | 280 | 16 | 280 | 30 | 290-430 Nws | 25 | 30 |
GNEE muab kev tshuaj xyuas thiab kev sim rau EN 10305 tus qauv
| Kev tshuaj xyuas lossis kuaj hom | Xeem zaus | |
| Kev kuaj sab hauv | Kev lees txais | |
| Tshuaj ntsuam xyuas | M | M |
| Kev ntsuas tensile | M | Ib qho kev sim batch |
| Flattening test los yog extension test | M | Ob leeg rau ib pawg kuaj |
| Kev txheeb xyuas qhov ntev | M | M |
| Kev tshuaj xyuas qhov muag | M | M |
Factory ib puag ncig ntawm Medium carbon steel yeeb nkab
Gnee Cov neeg tuaj xyuas
EN 10305-1 Qib E215 Pipes Supplier
FAQ
Q.Vim li cas thiaj xaiv Gnee?
A. Nrog peb, koj yuav tau txais tus nqi sib tw tshaj plaws, lav zoo, lav kev xa khoom thiab kev pab cuam tom qab muag.
Q.Koj puas muaj kev tswj xyuas zoo?
A. Yog, peb muaj peb tus kheej lub chaw soj ntsuam zoo. Cov kev pabcuam thib peb kuj tseem muaj.
Cim npe nrov: en 10305-1 e215 txias drawn tubes, Tuam Tshoj en 10305-1 e215 txias drawn tubes manufacturers, lwm tus neeg, Hoobkas
