API 5CT L80 casing feem ntau yog siv rau hauv cov roj qhov dej ua cov phab ntsa zoo los xyuas kom meej cov txheej txheem drilling thiab kev siv cov roj tag nrho tom qab ua tiav. cov
L80-9Cr casing belongs rau cov pab pawg neeg corrosion-resistant casing steel, tshwj xeeb tshaj yog haum rau CO2 ib puag ncig. Nyob rau hauv ib puag ncig corrosive dominated los ntawm carbon dioxide, L80-9Cr qhia siab corrosion kuj. Piv nrog L80-1, L80-9Cr thiab L80-13Cr yog ob qho tib si corrosion-resistant roj kav, feem ntau yog siv nyob rau hauv hnyav corrosive qhov dej. cov
API 5CT L80 tshwj xeeb roj casing ntev feem ntau pib nrog tsab ntawv R, muab faib ua R1, R2, R3. Raws li API cov cai, R-1 yog 4.88 ~ 7.62m, R-2 yog 7.62 ~ 10.36m, thiab R-3 yog 10.36m mus ntev. cov
Feem ntau, cov khoom yog liab qab. Xov hom: feem ntau muab faib ua non-thickened (NUE), thickened (EUE), thiab tshwj xeeb clearance (SCC).
Cov ntaub ntawv khoom
API 5CT L80 Steel Roj Casing Pipe specification
Tshuaj muaj pes tsawg leeg
| Qib | Hom | C | Mn | Mo | Cr | Nim max. | Cu max. | P max. | S max. | Si max. | ||||
| min. | max. | min. | max. | min. | max. | min. | max. | |||||||
| L80 | 1 | – | 0.43 a | – | 1.9 | – | – | – | – | 0.25 | 0.35 | 0.03 | 0.03 | 0.45 |
| L80 | 9 cr ua | – | 0.15 | 0.3 | 0.6 | 0.9 | 1.1 | 8.0 | 10.0 | 0.5 | 0.25 | 0.02 | 0.01 | 1.00 |
| L80 | 13 Cr | 0.15 | 0.22 | 0.25 | 1.00 | – | – | 12.0 | 14.0 | 0.5 | 0.25 | 0.02 | 0.01 | 1.00 |
Mechanical Property
| Qib | Yield zog (Mpa) | Tensile zog (Mpa) | Elongation nyob rau hauv load,% | Hardness, HRC |
| L80-1/L80-9Cr/13C | 552-655 | 655 | 0.5 | 23 |
Cov khoom tso tawm

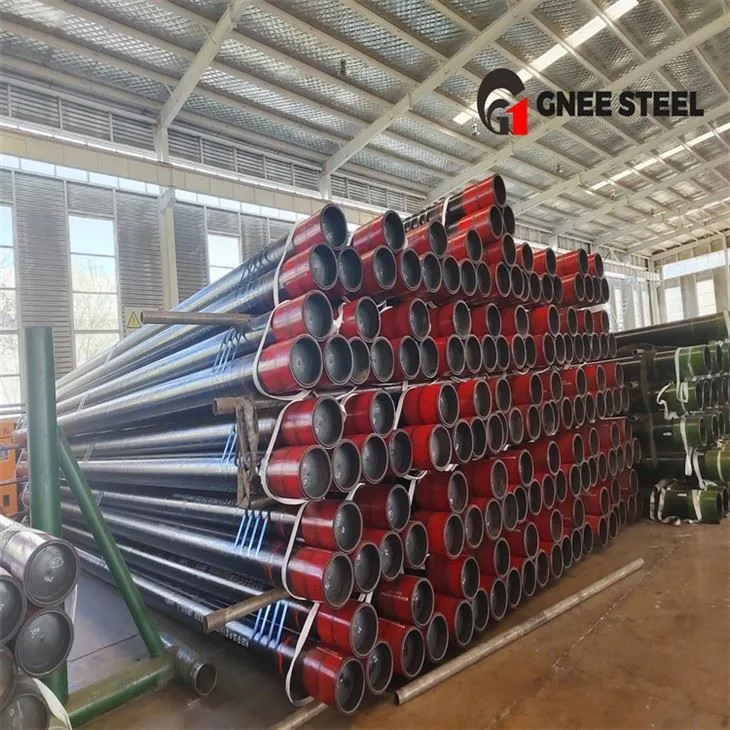

API 5CT L80 Casing thiab Piping
Vim li cas thiaj xaiv GNEE
GNEE muaj cov khoom siv ntau lawm, kev tshawb fawb thiab kev tswj xyuas tsim nyog, kev tshuaj xyuas nruj thiab cov khoom tsim nyog. OEM lossis ODM raug lees txais, thiab tuab, qhov loj me thiab txheej kuj tuaj yeem kho raws li cov neeg siv khoom xav tau.
Yog tias muaj lus nug, thov hu rau peb dawb los ntawm E-mail lossis Xov Tooj.sales@gneetube.com
GNEE CUSTOMER VAJTSWV
GNEE GROUP PARTICIPATED IN THE NECC EXHIBITION
GNEE Factory Environment
GNEE packaging thiab Shipping
FAQ
Q: Qhov zoo li cas?
A: Kev tshuaj xyuas thib peb yog txais tos. Xws li BV, SGS, thiab lwm yam.
Q: Lub sijhawm khoom xa tuaj ntev npaum li cas?
A: Yog tias nws nyob hauv Tshuag, nws feem ntau yog li ntawm 5-10 hnub. Yog tias nws tsis nyob hauv Tshuag, nws yog 15-20 hnub. Nws kuj nyob ntawm qhov ntau.
Q: Kuv puas tuaj yeem kho cov yeeb nkab steel?
A: Tau kawg, peb tuaj yeem tsim raws li koj qhov yuav tsum tau ua, koj tuaj yeem xa CAD lossis kos duab kos duab.
