"API 5L" yog cov yeeb nkab steel yeeb nkab qauv tsim los ntawm American Petroleum Institute. Nws teev cov kev cai rau kev tsim khoom, kev sim, thiab kev lees txais ntawm cov kav dej steel kav; "L485" thiab "X70" sawv cev rau qib yield zog ntawm cov yeeb nkab steel, uas yog, cov yeeb nkab steel yog raug rau qhov siab tshaj plaws kev ntxhov siab nws tuaj yeem tiv taus thaum sab nraud quab yuam yog 485MPa lossis 70ksi.
L485 kabmuaj cov cuab yeej zoo heev, suav nrog lub zog siab, siab toughness thiab zoo heev weldability. Nws lub zog tensile feem ntau yog siab tshaj 570MPa, uas tuaj yeem ua tau raws li cov kev xav tau ntawm kev thauj mus los ntawm kev kub siab thiab cov kua dej loj.
Tsis tas li ntawd, seamless carbon steel yeeb nkab L485 kuj muaj qhov kub thiab txias toughness thiab hydrogen-induced cracking (HIC) tsis kam, thiab tuaj yeem tswj kev ua haujlwm ruaj khov hauv ib puag ncig huab cua.
Chemical Properties ntawm ISO 3183 L485 Yeeb Nkab
| API 5L X70 PSL 1 | ||||||||
|---|---|---|---|---|---|---|---|---|
| Qib | Kev sib xyaw,% | |||||||
| C max | Mn max | P | S max | V max | Nb max | Tau max | ||
| min | max | |||||||
| B | 0.28 | 1.2 | - | 0.03 | 0.03 | c.d | c,d | d |
| X70 | 0.28 | 1.4 | - | 0.03 | 0.03 | f | f | f |
5 l gr. X70 Tube Khoom
API 5l X70 Tensile Strength
| Qib | Yield zog Mpa | Tensile zog Mpa | Raito | Elongation | ||
|---|---|---|---|---|---|---|
| min | max | min | max | max | min | |
| BN | 245 | 450 | 415 | 655 | 0.93 | f |
| BQ | ||||||
| X70Q | 485 | 635 | 570 | 760 | 0.93 | f |
| Qib | Yield zog | Tensile zog | Yield rau Tensile | Elongation |
|---|---|---|---|---|
| min. (KSI) | min. (KSI) | Qhov ratio (max) | % | |
| API 5L X70 | 70 | 82 | 0.93 | 17 |

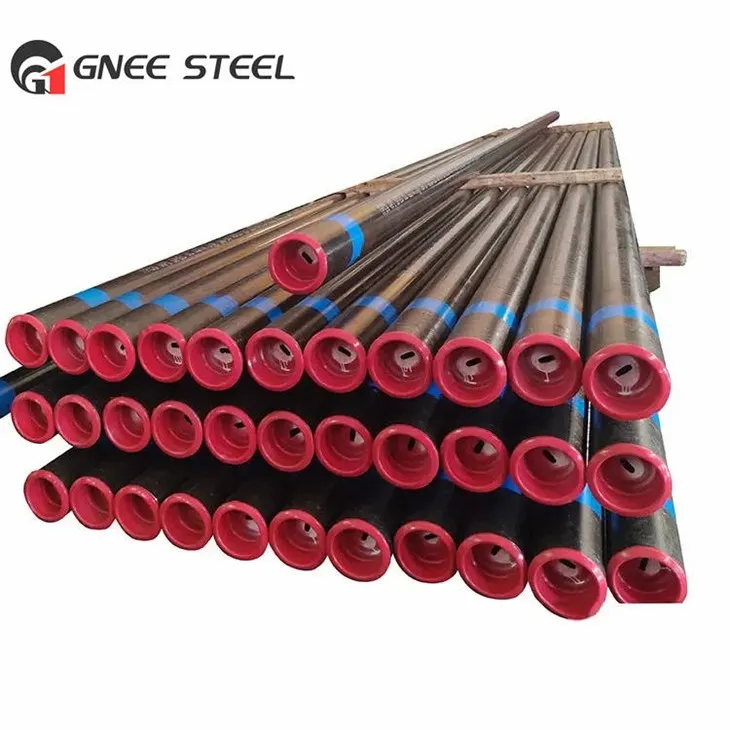

API 5L L485 Seamless yeeb nkab
Api 5l X70 Pipe Pressure Rating Chart
| cev OD (hauv.) |
Phab ntsa Thickness ntawm cov yeeb nkab (inch) | |||||||
|---|---|---|---|---|---|---|---|---|
| .028 | .035 | .049 | .065 | .083 | .095 | .109 | .120 | |
| Ua haujlwm siab (psig) | ||||||||
| 1/8 | 7900 | 10100 | ||||||
| 1/4 | 3700 | 4800 | 7000 | 9500 | ||||
| 5/16 | 3700 | 5400 | 7300 | |||||
| 3/8 | 3100 | 4400 | 6100 | |||||
| 1/2 | 2300 | 3200 | 4400 | |||||
| 3/4 | 2200 | 3000 | 4000 | 4600 | ||||
| 1 | 2200 | 2900 | 3400 | 3900 | 4300 | |||
Qib L485 yog qib siv feem ntau teev hauv ISO 3183 tus qauv. GNEE khoom thiab muag ISO Gr L390 PSL1, PSL2 steel yeeb nkab, ISO 3183 Gr L485 LSAW / seamless / welded yeeb nkab nyob rau hauv ntau qhov ntau thiab tsawg thiab specifications, yog tias koj tab tom nrhiav rau cov khoom no, thov hu rau peb los yog tau txais ib nqe lus. Tsis tsuas yog peb muaj ntau qhov ntau thiab tsawg, tab sis peb kuj muaj ntau yam nyuaj-nrhiav qhov ntau thiab tsawg.sales@gneetube.com
Gnee Factory ib puag ncig
Gnee Ntim thiab shipping
FAQ
Koj puas tuaj yeem muab cov qauv?
Peb tuaj yeem muab lawv dawb, koj yuav tsum tau them tus nqi thauj khoom.
Peb cia siab rau koj lub tuam txhab li cas?
Peb tshwj xeeb hauv kev lag luam steel rau ntau xyoo, tau lees paub los ntawm SGS, txais tos tuaj xyuas peb lub Hoobkas.
Koj cov khoom puas tuaj yeem kho tau?
Yog lawm, peb tuaj yeem tsim thiab ua raws li koj xav tau.
