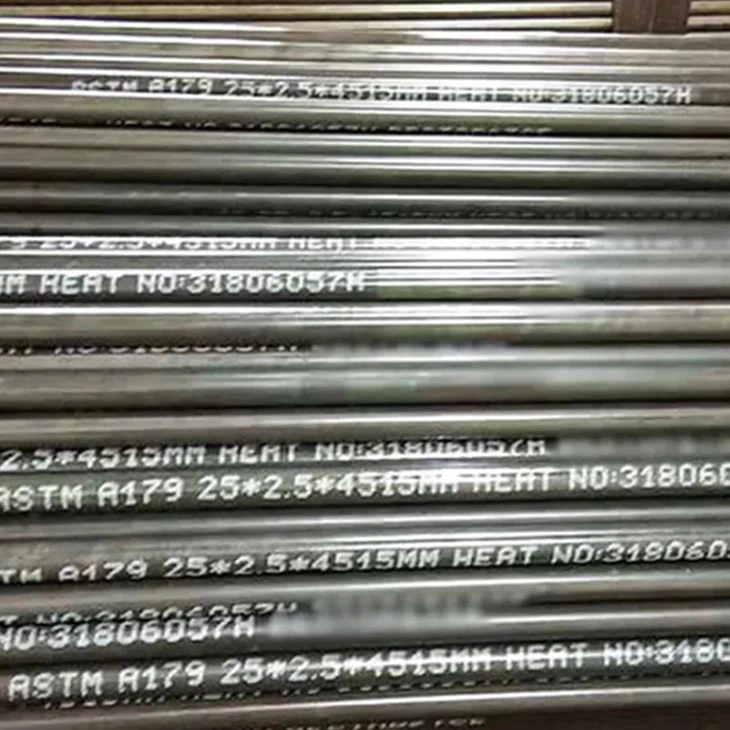

ASME SA 179 Carbon Steel Seamless Tubes

ASME SA-179/SA-179M yog ib hom American seamless steel yeeb nkab qauv, tshwj xeeb tshaj yog tsim rau seamless txias-draw low-carbon steel kav rau cua sov exchangers thiab condensers.

ASME SA179 steel kavmuaj qhov tshwj xeeb phab ntsa tuab thiab dav siv hauv tubular heat exchangers, condensers thiab cov khoom siv hluav taws xob zoo sib xws.
Cov tshuaj muaj pes tsawg leeg ntawm ASME SA 179 carbon steel seamless kav yog nyob nruab nrab ntawm 0.06 thiab 0.18% carbon, cov silicon thiab manganese cov ntsiab lus yog mus txog 0. 37% thiab 0.63% rau 0.93% feem, thiab cov ntsiab lus phosphorus thiab sulfur yuav tsum tsis pub tshaj 0.035%.
SA179 seamless steel kav yuav tsum muaj lub zog tensile tsawg kawg yog 325MPa, lub zog tawm los ntawm tsawg kawg yog 180MPa, thiab elongation tsawg kawg yog 35%.

ASME SA179 Seamless Tsawg Carbon Steel Tube

ASME SA 179 Carbon Steel Seamless Tubes

Chemistry Composition ntawm ASTM A179 Condenser Tubes

C, %	Mn,%	P, %	S, %
0.06-0.18	0.27-0.63	0.035 max	0.035 max

Mechanical Properties ntawm SA179 High Pressure Tubes

Tensile zog, MPa	Yield zog, MPa	Elongation,%	Hardness, HRB
325 min	180 feeb	35 feeb	72 max ua

Sab nraud Diameter & Tolerance ntawm ASTM A179 cov khoom siv

Sab nraud txoj kab uas hla, mm	Siab ntev, mm
3.2 Tsawg dua lossis sib npaug rau OD＜25.4	±0.10
25.4 Tsawg dua lossis sib npaug rau OD Tsawg dua lossis sib npaug rau 38.1	±0.15
38.1 OD 50.8	±0.20
50.8 Tsawg dua lossis sib npaug rau OD＜63.5	±0.25
63.5 Tsawg dua lossis sib npaug rau OD＜76.2	±0.30
76.2	±0.38

Qhov zoo ntawm Kev Xaiv GNEE A179 seamless Steel Pipe

GNEE muaj10 kub dov seamless steel yeeb nkab ntau lawm kabthiab5 txias-draw seamless steel yeeb nkab ntau lawm kab. Nws tuaj yeem tsim cov kav dej seamless ntawm ntau yam tshwj xeeb thiab cov khoom siv.
ASME SA-179 tus qauv muab los ntawm GNEE kuj tseem hais tias sab nraud ntawm cov yeeb nkab steel yuav tsum nyob nruab nrab ntawm 1/8 nti thiab 3 ntiv tes (3.2 txog 76.2mm).
Pob: Txheem seaworthy pob hauv pob lossis raws li qhov xav tau.
Shipping: peb yuav npaj cov khoom xa tuaj hauv 7 hnub tom qab tau txais qhov tso nyiaj.

Yog tias koj txaus siab rau kev yuav khoom zoo seamless raj los ntawm GNEE txhim khu kev qha, thov email tam sim no!sales@gneetube.com

Gnee Cov neeg tuaj xyuas

Gnee Customer visit

Gnee Factory ib puag ncig

Gnee Factory environment

Gnee Ntim thiab shipping

Gnee Packaging and shipping

FAQ

Q.Peb ntseeg koj lub tuam txhab li cas?
A. Peb tshwj xeeb hauv kev lag luam steel rau ntau xyoo, tau lees paub los ntawm SGS, txais tos tuaj xyuas peb lub Hoobkas.
Q. Koj puas tuaj yeem muab cov qauv?
A. Peb tuaj yeem muab lawv dawb, koj yuav tsum tau them tus nqi thauj khoom.
Q. Koj qhov kev pab cuam tom qab muag yog dab tsi?
A. Peb muab kev pab cuam tom qab muag thiab 100% kev ruaj ntseg zoo rau peb cov khoom.

Cim npe nrov: asme SA 179 carbon steel seamless raj, Tuam Tshoj asme sa 179 carbon steel seamless raj manufacturers, lwm tus neeg, Hoobkas
