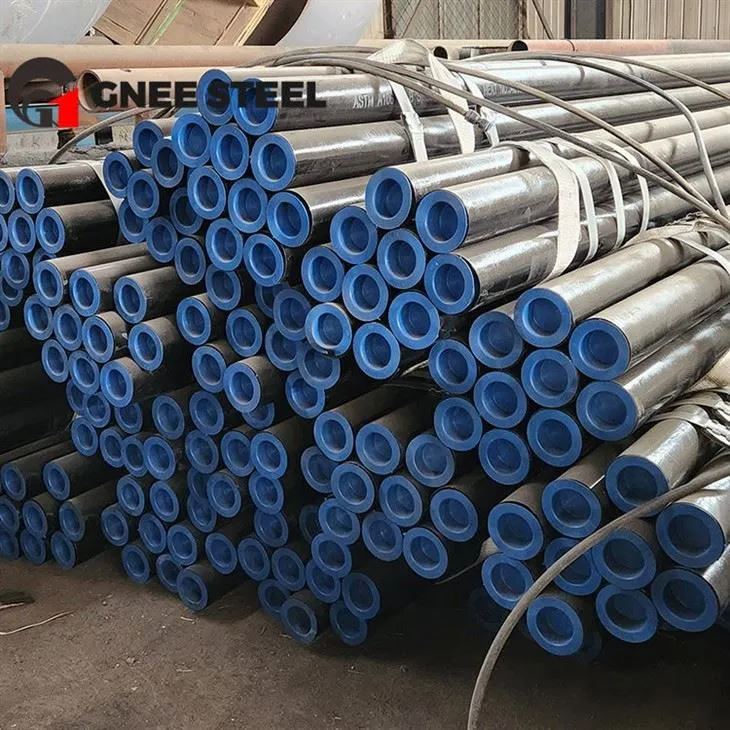

ASTM A106 yog tus qauv tshwj xeeb rau seamless carbon steel yeeb nkab rau kev siv kub.
A106 Gr.B SCH40 specification yog hais txog qib tshwj xeeb (Qib B) thiab rooj (SCH40) ntawm cov yeeb nkab.A106 Gr.B SCH40 yeeb nkabtsim los ntawm GNEE yog ua los ntawm cov pa roj carbon steel thiab yog tsim los tiv taus qhov kub thiab txias. Cov yeeb nkab yog tsim los ntawm kub dov, kos duab txias los yog ua ke ntawm ob txoj kev. SCH40 lub rooj hais txog qhov tuab ntawm cov yeeb nkab phab ntsa. Tus naj npawb loj dua, qhov tuab ntawm cov yeeb nkab phab ntsa.
ASTM A106 Gr.B Seamless Carbon Steel Yeeb Nkab Specification
Specifications: ASTM A106 SCH40 Seamless Carbon Steel Pipes
Khoom Specification: A106 Gr B Seamless Tube
Pipe Loj: a) ½ "Sch 40 [15NB] rau 34" Sch40 [900NB]
Dimension Standard: B36.10 M [ANSI Txuj]
Random Length: 5m mus rau 7m
Tag nrho cov kav dej tsis muaj xeb, pitting thiab zoo zoo.
ASME SA106 seamless yeeb nkab
ASTM A106 B SCH40 Seamless Carbon Steel Pipes (OD, WT, IB METER)
| SA106 B SCH40 Seamless Pipes | ||||||||
| N | Loj | Kev piav qhia | KGS/MTR | |||||
| OD | WT | |||||||
| Ntiv | mm | sch | mm | AB | ||||
| 1 | 1/2 | 21.3 | xoj 40 | 2.77 | Txias Drawn | 1.266 | ||
| 2 | 3/4 | 26.7 | xoj 40 | 2.87 | Txias Drawn | 1.687 | ||
| 3 | 1 | 33.4 | xoj 40 | 3.38 | Txias Drawn | 2.502 | ||
| 4 | 1 1/4 | 42.2 | xoj 40 | 3.56 | Kub Rolled | 3.392 | ||
| 5 | 1 1/2 | 48.3 | xoj 40 | 3.68 | Kub Rolled | 4.049 | ||
| 6 | 2 | 60.3 | xoj 40 | 3.91 | Kub Rolled | 5.437 | ||
| 7 | 2 1/2 | 73 | xoj 40 | 5.16 | Kub Rolled | 8.632 | ||
| 8 | 3 | 88.9 | xoj 40 | 5.49 | Kub Rolled | 11.292 | ||
| ASTM A106 GR B SCH40 Seamless Carbon Steel Yeeb Nkab | ||||||||
| N | Loj | Kev piav qhia | KGS/MTR | |||||
| OD | WT | |||||||
| Ntiv | mm | sch | mm | AB | ||||
| 1 | 8 | 219.1 | xoj 40 | 8.18 | Kub Rolled | 42.547 | ||
| 2 | 10 | 273 | xoj 40 | 9.27 | Kub Rolled | 60.288 | ||
| 3 | 12 | 323.8 | xoj 40 | 10.31 | Kub Rolled | 79.703 | ||
| 4 | 14 | 355.6 | xoj 40 | 11.13 | Kub Rolled | 94.545 | ||
| 5 | 16 | 406.4 | xoj 40 | 12.7 | Kub Rolled | 123.3 | ||
| 6 | 20 | 508 | xoj 40 | 15.09 | Kub Rolled | 183.421 | ||
| 7 | 24 | 609.6 | xoj 40 | 17.48 | Kub Rolled | 255.237 | ||
GNEE muab A106 B steel kav nyob rau hauv txawv specifications thiab phab ntsa thicknesses. A106 Class B kab yeeb nkab cov khoom siv yog qhov muaj zog heev thiab tsim kom muaj kev tiv thaiv corrosion zoo thiab lub zog zoo hauv kev thauj khoom. SA106 Class B Schedule 40 yeeb nkab yog muaj nyob rau hauv nominal yeeb nkab qhov ntau thiab tsawg 1/4 mus rau 32. Cov kav dej muaj phab ntsa thickness ntawm 6.02 hli thiab sab nraud txoj kab uas hla ntawm 114.30 hli.
Yog tias koj muaj lus nug lossis xav paub ntxiv txog A106 yeeb nkab, thov hu rau peb.sales@gneetube.com
Gnee Factory ib puag ncig
