A106 B seamless steel yeeb nkab yog cov khoom siv hauv Asmeskas tus qauv ASTM A106M. ASTM A106 GR B steel yeeb nkab yog qhov zoo ib yam li cov khoom siv hauv tsev 20G. Lub hom phiaj ntawm cov khoom siv no yog siv rau cov kav dej-txias phab ntsa hauv cov phab ntsa dej txias, cov khoom siv nyiaj txiag, thiab cov kav dej reheater.

SA106 B Seamless Pipe specification ntau yam: sab nraud txoj kab uas hla ntawm 21.3mm mus rau 762mm, thiab phab ntsa thickness li ntawm 2.0 mus rau 140mm. Ib qhov ntev yog 3-13 meters.

Txhawm rau txhim kho qhov kev tiv thaiv corrosion ntawm ASME SA106 Gr.B steel carbon yeeb nkab, GNEE feem ntau ua rau kev kho deg. Cov txheej txheem kev kho saum npoo feem ntau suav nrog txheej, galvanizing, txau, thiab lwm yam.
Cov txheej txheej tuaj yeem tsim cov yeeb yaj kiab tiv thaiv ntom ntom ntawm cov yeeb nkab steel los tiv thaiv kev nkag mus ntawm cov xov xwm corrosive.

SA106 GR B Carbon Steel Tube

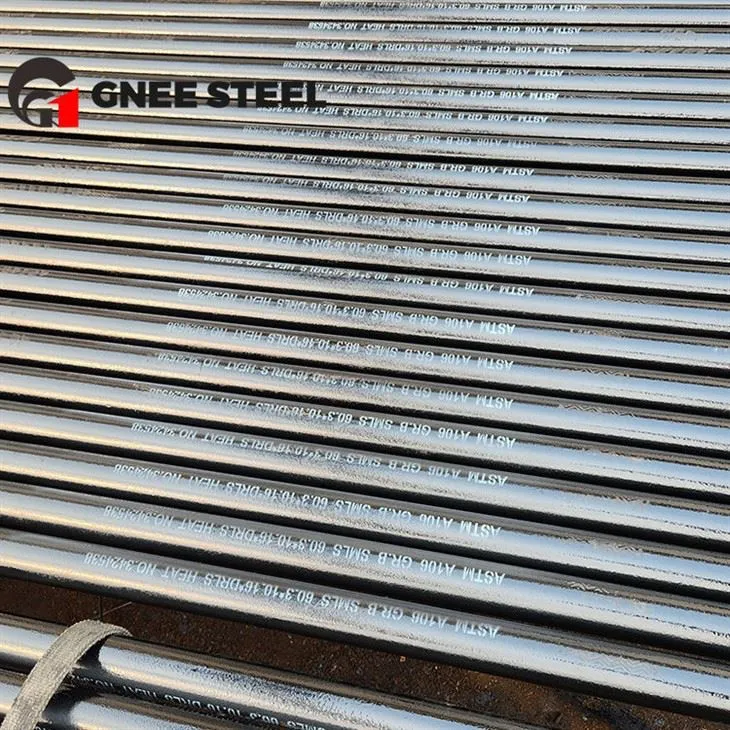

ASTM A106 Grade B Seamless Pipe

GNEE ASTM A106 GR B Carbon Steel Yeeb Nkab Specifications
Cov qauv kev coj ua: ASMESA-106/SA-106M ASTM A106/A106M
Tshuaj muaj pes tsawg leeg ntawm A106 B seamless steel yeeb nkab:
Cov pa roj carbon tsawg dua lossis sib npaug rau {{0}}.30, manganese: 0.29 ~ 1.{{10}}}6, phosphorus: Tsawg dua lossis sib npaug rau 0.035, sulfur: Tsawg dua lossis sib npaug rau 0.035, silicon: Ntau dua lossis sib npaug rau 0.10, chromium: Tsawg dua los yog sib npaug rau 0.40, npib tsib xee: Tsawg dua lossis sib npaug rau 0.40, tooj liab: Tsawg dua lossis sib npaug rau 0.40, molybdenum: Tsawg dua lossis sib npaug rau 0.15, vanadium: Tsawg dua lossis sib npaug rau 0.08
Tensile zog: Ntau dua los yog sib npaug rau 415MPa, yield zog: 240MPa,
Khoom specifications: sab nraud txoj kab uas hla 21.3 ~ 762mm, phab ntsa thickness 3.0 ~ 140mm

Vim li cas thiaj xaiv GNEE ASTM A106 Qib B Seamless Carbon Steel Yeeb Nkab

GNEE yog lub chaw tsim khoom lag luam ntawm A106 GR B smls yeeb nkab, nrog rau cov zis txhua xyoo ntawm 100, 000 tons. 80% ntawm cov zis raug xa tawm, thiab txhua A106 B round carbon steel yeeb nkab raug kuaj raws li hauv qab no ua ntej tawm hauv lub Hoobkas.
Hydrostatic xeem
Txhua cov yeeb nkab yuav tsum raug kuaj xyuas hydrostatic yam tsis muaj qhov xau los ntawm cov yeeb nkab phab ntsa. Qhov siab tshaj plaws ntsuas hydrostatic test siab rau cov kav dej nominal nrog ib txoj kab uas hla ntawm 88.9 mm los yog tsawg dua yuav tsis pub tshaj 2500 psi (17.2 MPa), thiab rau txhua qhov loj ntawm cov kav dej uas muaj lub cheeb sab nraud ntau dua 88.9 mm yuav tsis pub tshaj 2800 psi (19.3 MPa). )
Kev ntsuam xyuas
Cov kav hlau uas muaj txoj kab uas hla sab nraud ntau dua 60.3 hli yuav tsum raug kuaj kom haum.
Khoov xeem
Kev ntsuas kev khoov yuav tsum tau ua rau cov kav dej uas muaj txoj kab uas hla sab nraud tsawg dua lossis sib npaug li 60.3 hli.
Kev kuaj tsis raug
Muaj feem xyuam rau seamless carbon steel nominal kav rau kub kev pab cuam los ntawm NPS 1/8 rau NPS 48, nrog nominal (nruab nrab) phab ntsa thickness raws li muab nyob rau hauv ANSIB36.10.

Yog tias koj tab tom nrhiav rau cov kav dej seamless, thov hu rau peb hauv lub sijhawm kom tau txais nqe lus!sales@gneetube.com

Factory ib puag ncig ntawm Medium carbon steel yeeb nkab

Factory environment of Medium carbon steel pipe
