Cov khoom lag luam
ASTM A178 / A178M Cov qauv qhia tshwj xeeb npog cov qauv hluav taws xob {}}}}}}}}}} bead flues, boiler blues, boiler flues, thiab muaj kev nyab xeeb xaus. Cov hlau yuav tsum yog cov qhab nia a (qis}}}} {{{{{{manganese steel). Txhua txoj hlab yuav tsum xa mus rau kev kho cua sov tom qab vuam, ua raws li los ntawm txias. Cov hlau yuav tsum ua raws li cov carbon hais plaub, manganese, phosphorus, leej faj, thiab silicon. Cov qib C thiab D yuav tsum ua raws li kev yuav tsum tau ua rau lub zog, uas yog lub zog, tawm lub zog, thiab elongation. Cov ntaub ntawv yuav tsum tau ua kom tiaj, flange, nro, rov qab ua kom tiaj, thiab hydrostative (lossis siv hluav taws xob ntxiv). Tsaus xeem yuav tsum tau ua yog nug los ntawm tus neeg yuav khoom. Qhov tsawg kawg nkaus elongation muaj nuj nqis kuj tseem muab.
Lub tubing ntau thiab tsawg feem ntau yog cov khoom siv no yog 1/2 rau 57 mm], suav nrog rau cov phab ntsa qis dua. Tubing muaj lwm txoj kev muaj lwm qhov ntev tuaj yeem muab cov raj txheej ua kom ua tiav nrog txhua lwm cov kev xav tau ntawm cov lus qhia tshwj xeeb.
Tshuaj lom neeg muaj pes tsawg leeg ntawm Astm A178
|
Lub caij nyoog% |
ASTM A178 GR A / SA178A |
ASTM A178 GR C / SA178C |
ASTM A178 GR D / SA178D |
|
Tsawg Daim Hlau |
Nruab Nrab Cov Hlau |
Manganess Steel |
|
|
C |
0.06-0.18 |
0.35 max |
0.27 Max |
|
Mn |
0.27-0.63 |
0.80 max |
1.00-1.50 |
|
P |
0.035 |
0.035 |
0.030 |
|
S |
0.035 |
0.035 |
0.015 |
|
Si |
... |
... |
0.10 min. |
Neeg kho tshuab ntawm Astm A178
|
Yam |
ASTM A178 GR A / SA178A |
ASTM A178 GR C / SA178C |
ASTM A178 GR D / SA178D |
|
Lub zog tensile muaj zog, min, ksi [MPA] |
47[325] |
60[415] |
70[485] |
|
Pepred lub zog, min, KSI [MPA] |
26[180] |
37[255] |
40[275] |
|
Elongation nyob rau hauv 2 hauv. Lossis 50 hli, min,% |
35 |
30 |
30 |
|
Rau kev sim ncua ntev ntev kev txiav tawm kev txiav tawm rau |
1.50A |
1.50A |
1.50A |
|
Txhua1/32-hauv [0.8mm] txo hauv phab ntsa tuab hauv qab 5/16IN. [8mm] |
|
|
|
|
Los ntawm qhov pib qhov tsawg kawg ntawm cov ntsiab lus hauv qab no yuav tsum tau ua |
|
|
|
Sab Nraum Dia Thiab Phab Ntsa Thickness kam rau ATM A178 / A178m
|
Sab Nraud Txoj Kev Uas Txoj Kev Ploj Tol |
Phab Ntsa Thickness TOL |
||
|
Od <50 |
± 0.05mm |
S <4mm |
±12.5% |
|
Qauv> 50 |
±1% |
4--20 hli |
+15/-12.5% |
|
S ntau dua los yog sib npaug rau 20mm |
±12.5% |
||
Cov Khoom Siv
Txheem: Astm
Ntu puab: Round
Qhov chaw ntawm keeb kwm: Suav
Daim Ntawv Thov: Boiler Yeeb Nkab
Txheej txheem ntau lawm: Khaub thuas
Ntawv pov thawj: CE
Daus: ± 10%
Qeb: Seamless Steel Yeeb Nkab
OD: 6mm-168mm
WT: 1mm-12mm
Ntev: 0.5Mtr-20Mr
Xaus: Square xaus / Plain Xaus (Kaw ncaj, pom txiav, lub teeb txiav), beveled / xov
Ntim & Xa Tawm
| Muag Chav Nyob | : | Metric Ton |
| Pob Hom | : | Pob lossis ntoo, ntoo rooj plaub lossis lwm yam seaworthy ntim lossis rau tus neeg yuav tsum tau ua |

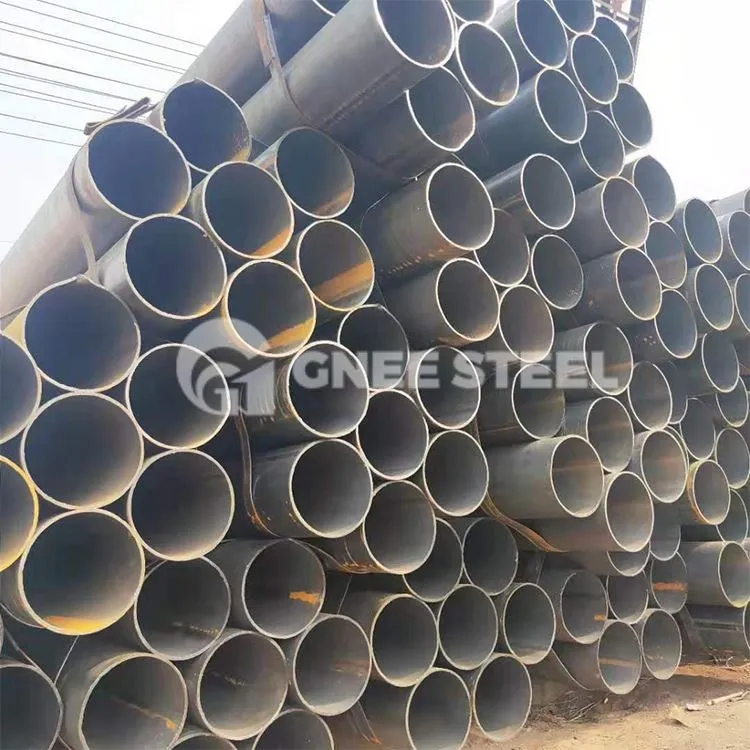

GNEE ASTM A178 Boiler Steel Tube Rau Muag
