ASTM A106 tus qauv npog seamless carbon steel nominal phab ntsa yeeb nkab rau qhov kub thiab txias kev pabcuam haum rau kev khoov, flanging thiab kev ua haujlwm zoo sib xws.
ASTM A106 Tubeyog cov pa roj carbon steel yeeb nkab uas muaj qhov tsawg kawg nkaus lub zog ntawm 240 MPa thiab lub zog tensile yam tsawg kawg nkaus ntawm 415 MPa. GNEE yog ib tus kws tshaj lij ntawm A106 / SA106 yeeb nkab, stocking ntau yam ntawm Qib B / C yeeb nkab hauv qhov ntau thiab tsawg ntawm NPS 1/2 "rau NPS 36" nrog nominal (nruab nrab) phab ntsa tuab raws li ANSI B36.10.
Khoom Qhia

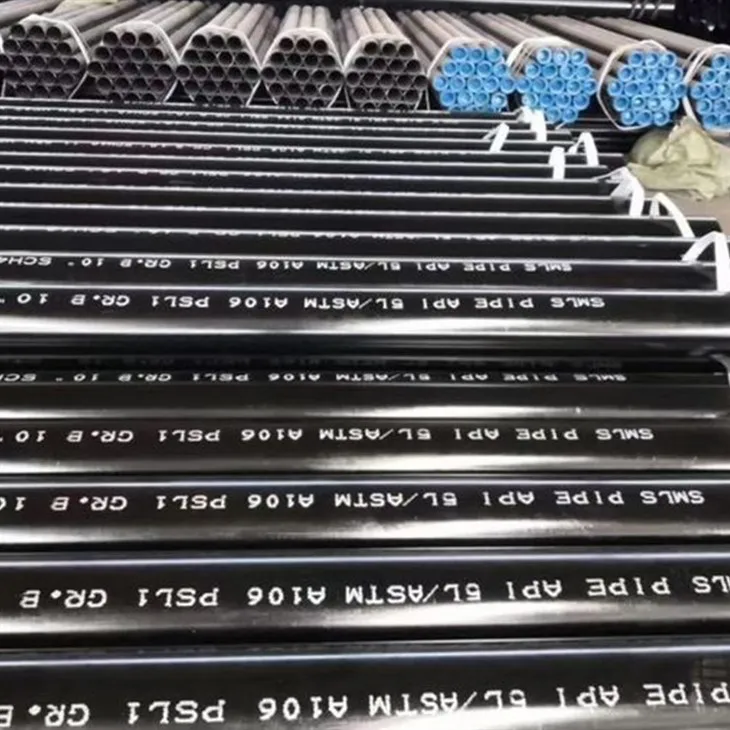

ASME SA106 Hloov Carbon Steel Tube
Cov ntaub ntawv khoom
ASTM A106 Carbon Steel Yeeb Nkab Qhia Paub meej
| Txuj | ASTM A106/A106M |
| Qib | A, B, los yog C |
| Hom | Seamless |
| Khoom siv | Carbon Steel |
| Sab nraud Diameter (OD) | Ntau yam tau teev tseg (piv txwv li, 21.3mm - 762mm) |
| Phab ntsa Thickness | Ntau yam tau teev tseg (piv txwv li, 3.0mm - 140mm) |
| Ntev | Qhia los yog txiav kom ntev |
| Ua kom tiav | Smooth, tsis muaj qhov tsis xws luag |
| Xaus Xaus | Plain xaus, beveled xaus, threaded xaus (raws li teev) |
| Ntim | Cov pob khoom, cov thawv ntoo, lossis raws li cov neeg siv khoom xav tau |
Cov khoom siv tshuaj ntawm ASTM SA / A106 Steel Pipe
| Qib | C, max. | Mn | P, max. | S, max. | Si, min. | Cr, max. | Cu, max. | Mo, max. | Nim, max. | V, max. |
|---|---|---|---|---|---|---|---|---|---|---|
| Qib B | 0.30 | 0.29 - 1.06 | 0.035 | 0.035 | 0.10 | 0.40 | 0.40 | 0.15 | 0.40 | 0.08 |
| Qib C | 0.35 | 0.28 - 1.06 | 0.035 | 0.035 | 0.10 | 0.40 | 0.40 | 0.15 | 0.40 | 0.08 |
Mechanical Properties ntawm A106 sch 40 carbon steel yeeb nkab
| Cov khoom | Qib B | Qib C | |
|---|---|---|---|
| Tensile zog, min., psi, (MPa) | 60,000 (415) | 70,000 (485) | |
| Yield zog, min., psi, (MPa) | 35,000 (240) | 40,000 (275) | |
Qhov Zoo Ntawm Kev Xaiv GNEE A106 pipeline
A106 seamless kav uas tsim los ntawm GNEE tau raug muag rau ntau pua lub nroog loj thiab nruab nrab hauv Suav teb. Lawv kuj raug xa tawm mus rau Is Nrias teb, Thaib, Nyab Laj, Iran, Qaib ntxhw, Brazil, Egypt thiab lwm lub tebchaws. Lub tuam txhab tau dhau ISO9001 daim ntawv pov thawj kev tswj hwm zoo, American Petroleum Institute API-5CT, API-5L daim ntawv pov thawj, daim ntawv tso cai tshwj xeeb tsim khoom, BV ntawv pov thawj thiab lwm daim ntawv pov thawj thib peb.
Yog tias koj tab tom nrhiav welded yeeb nkab, thov hu rau peb hauv lub sijhawm kom tau txais nqe lus!sales@gneetube.com
Tuam Tshoj A106 HF Seamless yeeb nkab
Gnee Cov neeg tuaj xyuas
FAQ
Q.Koj puas muaj kev tswj xyuas zoo?
A. Yog, peb tau txais BV.SGS ntawv pov thawj.
Q. Koj lub sijhawm ua haujlwm yog dab tsi?
A. Feem ntau, peb lub sijhawm xa khoom yog nyob rau hauv 7-45 hnub.
Q. Koj qhov kev pab cuam tom qab muag yog dab tsi?
A. Peb muab kev pab cuam tom qab muag thiab 100% kev ruaj ntseg zoo rau peb cov khoom.
Cim npe nrov: astm sa/a106 seamless carbon steel yeeb nkab, Tuam Tshoj astm sa/a106 seamless carbon steel yeeb nkab manufacturers, lwm tus neeg, Hoobkas
