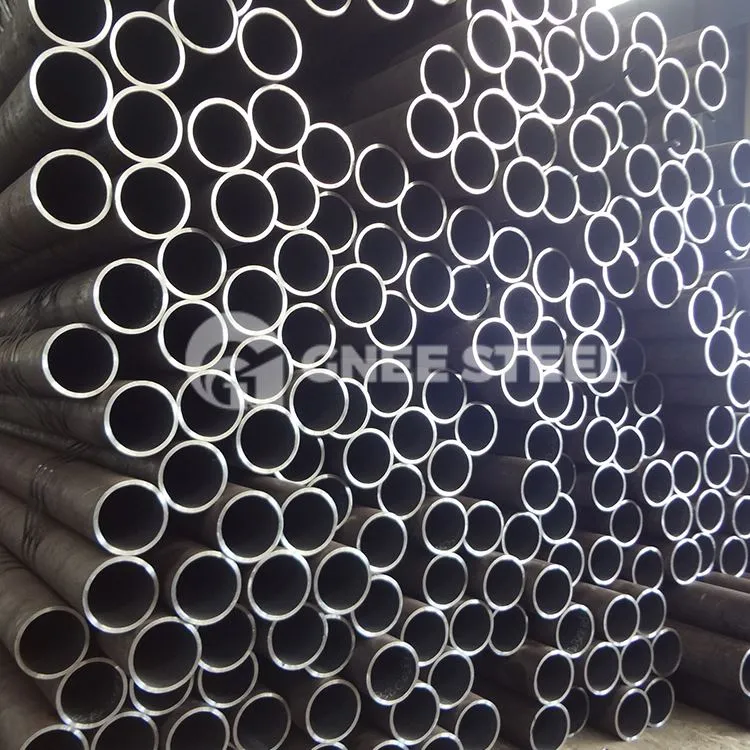

DIN 17204 C45 seamless carbon steel yeeb nkab yog sib npaug rau Tuam Tshoj 45 # steel yeeb nkab, cov ntsiab lus carbon: 0.42-0.5%, Si cov ntsiab lus tsawg dua lossis sib npaug rau {{8 }}.4%, Mn ntsiab lus 0.5-0.8%.
GNEE Group yog ib qho ntawm kaum sab saum toj steel yeeb nkab tuam ntxhab thiab cov muag khoom hauv Suav teb, peb tuaj yeem muab koj cov pa roj carbon steel yeeb nkab raws li DIN17204 tus qauv, yog tias koj muaj lus nug txog carbon steel yeeb nkab, thov koj xav tiv tauj peb.
DIN 17204 C45 Seamless Steel Carbon Pipe Specification
|
Khoom npe |
Carbon Steel Yeeb Nkab |
|
Khoom siv |
A53 Gr.B, A36, ST52, ST35, ST42, ST45, X42, X46, X52, X60, X65X70 |
|
Txuj |
API 5L, ASTM A106 Gr.B, ASTM A53 Gr.B, ASTM A179 / A192, ASTM A513, ASTM A671, ASTM A672, BS EN 10217, BS EN10296, BS EN 39, BS6323, DIN7 EN102 |
|
Daim ntawv pov thawj |
API 5L, ISO9001, SGS, BV, CCIC |
|
Sab nraud |
15mm -1200 hli |
|
Phab ntsa Thickness |
SCH 10 SCH 20 SCH 30 TSI SCH 40 SCH 60 SCH 80 SCH 100 SCH 120 SCH 160 XS XXS |
|
Ntev |
1m, 4m, 6m, 8m, 12m raws li tus neeg yuav khoom thov |
|
Cov txheej txheem |
Kub Rolled lossis Cold Rolled ERW |
khoom ntiag tug
| lub sij hawm | Kev kho cua sov lossis kev mob | tensile zog σb Mpa |
yield point σs Mpa |
Elongation ntawm tawg los yog elongation δ % |
Tshooj shrinkage ψ % |
tawv HBW |
|---|---|---|---|---|---|---|
| Cov kav dej kub-dhau thiab txias-daws kav | annealing | Tsawg dua lossis sib npaug li 207 | ||||
|
Cov yeeb nkab t Tsawg dua lossis sib npaug rau 16 |
hluav taws kub (N) | 610~760 | Ntau dua lossis sib npaug li 350 | Ntau dua lossis sib npaug li 16(ntev.); Ntau dua lossis sib npaug rau 14(tr.) | ||
| yeeb nkab 16＜t Tsawg dua lossis sib npaug li 40 | hluav taws kub (N) | 590~740 | Ntau dua lossis sib npaug rau 330 | Ntau dua lossis sib npaug li 17(ntev.); Ntau tshaj lossis sib npaug rau 15 (tr.) | ||
| yeeb nkab 40＜t Tsawg dua lossis sib npaug li 80 | hluav taws kub (N) | 570~720 | Ntau dua lossis sib npaug rau 320 | Ntau dua lossis sib npaug li 17(ntev.); Ntau tshaj lossis sib npaug rau 15 (tr.) | ||
| yeeb nkab t Tsawg dua los yog sib npaug 8 | Squeeze + Temper (V) | 700~900 | Ntau dua lossis sib npaug li 490 | Ntau dua lossis sib npaug li 14(ntev.); Ntau tshaj los yog sib npaug rau 12(tr.) | Ntau dua lossis sib npaug li 35 | |
| yeeb nkab 8＜t Tsawg dua lossis sib npaug li 20 | Squeeze + Temper (V) | 650~850 | Ntau dua lossis sib npaug li 430 | Ntau dua lossis sib npaug li 16(ntev.); Ntau dua lossis sib npaug rau 14(tr.) | Ntau dua lossis sib npaug li 40 | |
| yeeb nkab 20＜t Tsawg dua lossis sib npaug li 50 | Squeeze + Temper (V) | 630~830 | Ntau dua lossis sib npaug rau 370 | Ntau dua lossis sib npaug li 17(ntev.); Ntau tshaj lossis sib npaug rau 15 (tr.) | Ntau dua lossis sib npaug li 45 | |
| yeeb nkab 50＜t Tsawg dua lossis sib npaug li 80 | Squeeze + Temper (V) | 600~800 | Ntau dua lossis sib npaug rau 340 | Ntau dua lossis sib npaug li 17(ntev.); Ntau tshaj lossis sib npaug rau 15 (tr.) | Ntau dua lossis sib npaug li 45 |
GNEE Service
GNEE Certification
Hais txog GNEE
GNEE Group tau koom nrog kev lag luam steel yeeb nkab rau ntau tshaj kaum xyoo thiab muaj kev lag luam nplua nuj.
Xyoo 2008, peb tau qhib kev lag luam txawv teb chaws. Peb lub tuam txhab yog ib lub tuam txhab kev koom ua ke kev ua thiab kev ua haujlwm. Muaj ntau tshaj 10, 000 tonnes hauv Tshuag thiab ntau tshaj 800 specifications. Cov khoom no tsim nyog rau engineering, thee, textile, hluav taws xob fais fab thiab lwm yam lag luam.GNEE Group insists ntawm kev muab kev pabcuam ib-nres rau cov neeg siv khoom.
Cim npe nrov: din 17204 c45 carbon steel seamless yeeb nkab, Tuam Tshoj din 17204 c45 carbon steel seamless yeeb nkab manufacturers, lwm tus neeg, Hoobkas
