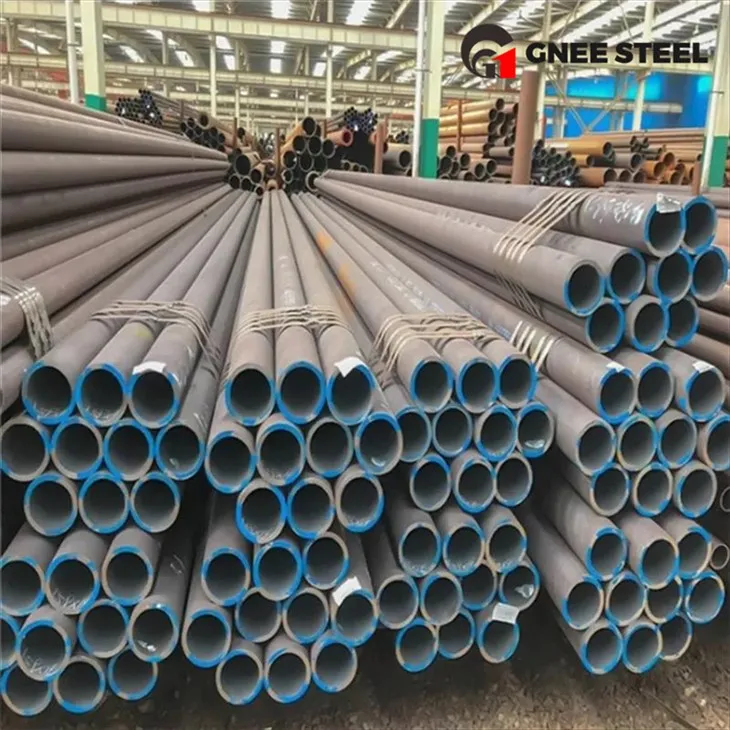

P235TR1 Cov Hlau Yeeb Nkab yog cov qib yooj yim seamless yeeb nkab qib hauv European tus qauv EN 10216-1. P235TR1 yog sib npaug rau kuv lub teb chaws cov khoom Q235. EN 10216-1 P235TR1 seamless yeeb nkab feem ntau yog siv rau kev tsim cov raj xa dej, ntim khoom, khoom tsim khoom, cov yeeb nkab fittings thiab steel qauv.
P hauv EN 10216-1P235TR1 seamless yeeb nkab sawv cev rau lub zog tawm los, uas yog sib npaug rau Q hauv kuv lub teb chaws Q235, txhais tau hais tias lub zog tawm los yog 235MPa, thiab TR1 qab nws txhais tau hais tias tsis tas yuav tsum muaj cov ntsiab lus txhuas. , thiab tsis tas yuav muaj kev cuam tshuam lub zog ntawm P235TR1 steel yeeb nkab.
Cov ntaub ntawv khoom
Chemical Properties Of EN 10216-1 P235TR1 Seamless Steel Tube
| Cov khoom | Cov pa roj carbon | Silicon | Manganese | Phosphorous | Sulfur | Molybdenum |
|---|---|---|---|---|---|---|
| EN 10216-1 Qib P235TR1 | max 0.16 | max 1.20 Nws | 0.025 | 0.02 | max 0.30 | max 0.30 |
Tensile Strength Ntawm EN 10216-1 P235TR1 Khoom Tube
| Cov khoom | Yield zog | Tensile zog | Elongation A5 min | |||
|---|---|---|---|---|---|---|
| MPa min | qis min | MPa min | MPa min | qis min | Feem pua | |
| EN 10216-1 Qib P235TR1 | 360 | 500 | – | 25 | ||
EN 10216-1 Carbon Seamless Steel Tubes Phab Ntsa Thickness Tolerances
| Sab nraum | Tolerance ntawm D |
Tolerances ntawm T rau T / D piv |
|||
| diam D | | <= 0.025 | > 0.025 | > 0.050 | > 0.10 |
| <= 0.050 | <= 0.10 | ||||
| D <= 219.1 mm | ± 1% los yog ± 0.5 hli | ± 12.5% lossis ± 0.4 hli qhov twg yog qhov ntau dua | |||
| D> 219.1 hli | qhov twg yog qhov loj dua | ± 20 % | ± 15 % | ± 12.5 % | ± 10 %* |
Cov khoom tso tawm
EN 10216-1 Seamless Steel Tube Rau Siab
Vim li cas thiaj xaiv GNEE
GNEE tuaj yeem tsim ntau yam qauv, xws li: DIN, ASTM, ASME / ANSI, BS thiab lwm yam qauv. Peb cov khoom siv dav siv hauv tshuab, petrochemical thiab lwm yam kev lag luam. Peb muaj cov khoom zoo, muaj peev xwm ntau lawm, khoom xa tuaj raws sijhawm thiab kev soj ntsuam zoo tom qab muag.
Yog tias muaj lus nug, thov hu rau peb dawb los ntawm E-mail lossis Xov Tooj.sales@gneetube.com
GNEE Cov neeg siv khoom tuaj xyuas
GNEE GROUP PARTICIPATED IN THE NECC EXHIBITION
GNEE Factory Environment
GNEE packaging thiab Shipping
FAQ
Q.Koj puas tuaj yeem muab cov qauv?
A. Tau kawg, peb tuaj yeem muab cov qauv dawb rau koj, tab sis cov neeg siv khoom yuav tsum tau them tus nqi thauj khoom.
Q. Koj lub sijhawm xa khoom ntev npaum li cas?
A.Tshwj xeeb, yuav tsum xav txog qhov ntau thiab qhov tshwj xeeb ntawm koj qhov kev txiav txim.
Q.Koj puas muaj kev tswj xyuas zoo?
A. Yog, peb tau txais BV.SGS ntawv pov thawj.
Cim npe nrov: en 10216-1 p235tr1 carbon steel seamless raj, Tuam Tshoj en 10216-1 p235tr1 carbon steel seamless raj manufacturers, lwm tus neeg, Hoobkas
