Taw qhia ntawm EN10297 E315 seamless carbon steel yeeb nkab
E315 qib seamless carbon rajrau mechanical processing, general applications thiab machine parts. Qhov tsawg kawg nkaus lub zog ntawm E315 cov khoom siv yeeb nkab yog 420MPa thiab lub zog tensile yam tsawg kawg nkaus yog 600MPa.
E315 Seamless Carbon Tube muaj 0.16% carbon, silicon, 1.3% manganese, phosphorus, sulfur, chromium, nickel thiab molybdenum, nrog me me ntawm tooj liab thiab vanadium.
E315 seamless mechanical yeeb nkab muaj ntau yam ntawm sab nraud diameters, piv txwv li, sab nraud txoj kab uas hla tuaj yeem ncav cuag 610MM, thiab phab ntsa tuab ntawm 6MM txog 35MM.
Daim ntawv thov ntawm EN 10297-1 E315 Seamless ncig steel raj
E315 structural yeeb nkab feem ntau yog siv nyob rau hauv ib puag ncig uas yuav tsum tau tiv taus siab kub, siab kub los yog corrosive media. Tsis tas li ntawd, nws yog dav siv nyob rau hauv machinery manufacturing kev lag luam.
Tshuaj muaj pes tsawg leeg ntawm EN10297 E315 steel yeeb nkab
| Qib Steel | C | Si | Mn | P | S | Lwm tus | ||||
| Lub npe hlau | Hlau No. | min. | max. | sib tov. | max. | min. | max. | min. | max. | |
| E315 | 1.0236 | - | 0.21 | - | 0.3 | - | 1.5 | 0.03 | 0.035 | |
Mechanical zog ntawm EN10297 E315 carbon steel yeeb nkab
| Qib Steel | Yam tsawg kawg nkaus Mechanical Properties | ||||||||||
| Yield Strength(ReH)Mpaa | Tensile zog (Rm) Mpa | Elongation A% | |||||||||
| Thickness (hli) | Thickness (hli) | | | | | ||||||||
| Tsawg dua los yog sib npaug li 16 | ＞16 | ＞40 | ＞65 | ＞80 | Tsawg dua los yog sib npaug li 16 | ＞16 | ＞40 | ＞80 | |||
| Tsawg dua los yog sib npaug li 40 | Tsawg dua los yog sib npaug li 65 | Tsawg dua los yog sib npaug li 80 | Tsawg dua los yog sib npaug li 100 | Tsawg dua los yog sib npaug li 40 | Tsawg dua los yog sib npaug li 65 | Tsawg dua los yog sib npaug li 100 | |||||
| E315 | 315 | 305 | 295 | 280 | 270 | 450 | 450 | 450 | 420 | 21 | 19 |

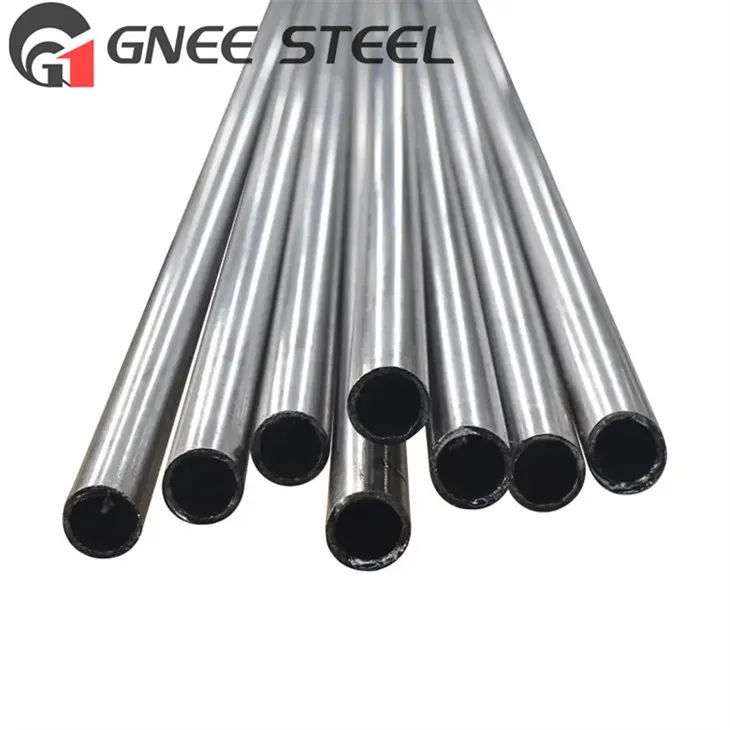

E315 Carbon Steel Hollow yeeb nkab
Qhov zoo ntawm Kev Xaiv GNEE EN10297 E315 kav
E315 seamless steel yeeb nkab tsim los ntawm GNEE yog tsuas yog siv nyob rau hauv lub xeev annealed los yog quenched. Txawm li cas los xij, kev kho cua sov, quenching thiab tempering kuj ua tau. Peb kuj tuaj yeem npaj cov kev tshuaj xyuas thib peb, xws li BV, TUV, SGS, thiab lwm yam. Lub EN 10297-1 E315 Steel Pipe muab los ntawm peb yog cov khoom zoo thiab yuav tsum tau ua haujlwm.
Yog tias koj muaj kev xav tau rau koj qhov project, thov xa email rau peb hauv lub sijhawm! sales@gneetube.com
Lub Hoobkas ib puag ncig ntawm E315 precision steel yeeb nkab
FAQ
Q.Dab tsi yog E355 steel siv rau?
A.E355 yog ib qho yooj yim zoo steel rau ntau yam kev tsim kho thiab engineering lub hom phiaj, siv hauv eg. mining daim ntaub ntawv raws li laum raj.
Q. Koj muab kev pabcuam dab tsi?
A. Kev pabcuam customized rau txhua tus neeg siv khoom, thov koj xav tiv tauj peb!
Q.Koj puas muaj kev tswj xyuas zoo?
A. Yog, peb tau txais BV.SGS ntawv pov thawj.
Cim npe nrov: en10297 e315 seamless mechanical yeeb nkab, Tuam Tshoj en10297 e315 seamless txhua yam yeeb nkab manufacturers, lwm tus neeg, Hoobkas
