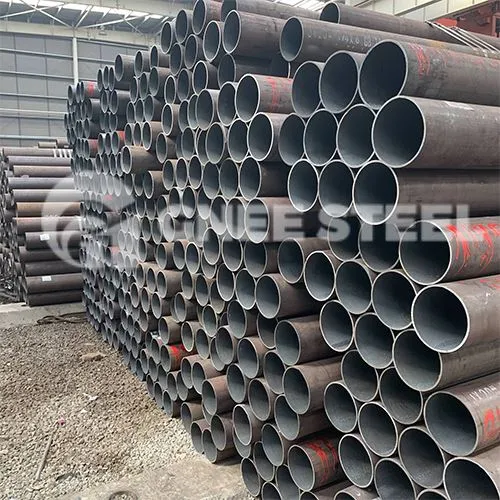

P195GH Seamless Carbon Steel Pipe ua tau raws li EN 10216-2 tus qauv, OD 21.3mm ~ 1016mm, phab ntsa thickness 2.0 ~ 140mm, tsim rau kev tsim cov kav dej, ntim, khoom siv, fittings thiab steel qauv.
GNEE Group tuaj yeem tsim ntau yam kev qhia tshwj xeeb ntawm P195GH carbon steel yeeb nkab rau koj, yog tias koj xav tau cov yeeb nkab steel yeeb nkab, peb kuj tuaj yeem muab rau koj, ntxiv rau, peb kuj tuaj yeem muab koj cov yeeb nkab steel kuaj thiab ntim cov kev pabcuam. Yog tias koj xav tau P195GH seamless yeeb nkab rau siab, thov hu rau peb tam sim ntawd.
P195GH roj av cracking seamless steel yeeb nkab specification
|
Khoom npe |
Carbon Steel Yeeb Nkab |
|
Khoom siv |
P195TR1, P195TR2, P235TR1, P235TR2, P265TR1, P265TR2, P195GH, P235GH, P265GH,13CrMo4-5,10CrMo{4}} |
|
Daim ntawv pov thawj |
API 5L, ISO9001, SGS, BV, CCIC |
|
Sab nraud |
15mm -1200 hli |
|
Phab ntsa Thickness |
SCH 10 SCH 20 SCH 30 TSI SCH 40 SCH 60 SCH 80 SCH 100 SCH 120 SCH 160 XS XXS |
|
Ntev |
1m, 4m, 6m, 8m, 12m raws li tus neeg yuav khoom thov |
|
Kev kho saum npoo |
xim dub, kua roj vanish, roj, galvanized, anti-corrosion coated |
|
Kos npe |
Cov cim cim, lossis raws li koj qhov kev thov.Kev kos npe: Txau xim dawb |
|
Kev kho mob kawg |
Plain End / Beveled End / Grooved End / Threaded End With Plastic Caps |
|
Cov txheej txheem |
Kub Rolled lossis Cold Rolled ERW |
|
Daim ntawv thov |
Kev xa khoom ua kua, qauv yeeb nkab, kev tsim kho, roj av tawg, roj yeeb nkab, roj yeeb nkab |
| Qib hlau | Hlau tus lej |
C | Si | Mn | P max |
S max |
Cr | Mo | Ni | Al tot | Cu | Nb | Ti max |
V | Cr+Cu +Mo+Ni |
Lwm tus |
| 195 HHH | 1.0348 | Tsawg dua lossis sib npaug rau 0,13 | Tsawg dua lossis sib npaug rau 0,35 | Tsawg dua lossis sib npaug rau 0,70 | 0,025 | 0,020 | Tsawg dua lossis sib npaug rau 0,30 | Tsawg dua los yog sib npaug rau 0,08 | Tsawg dua lossis sib npaug rau 0,30 | Ntau dua lossis sib npaug rau 0,020 b | Tsawg dua los yog sib npaug rau 0,30 c | Tsawg dua lossis sib npaug rau 0,010 d | 0,040 d |
Tsawg dua lossis sib npaug rau 0,02 d | Tsawg dua lossis sib npaug rau 0,70 | - |
Mechanical zog ntawm EN 10216-2 P195GH
| Qib hlau | Upper yield zog los yog pov thawj zog R eH lossis Rp 0,2 rau Phab ntsa Thickness T min. |
Tensile Lub zog Rm |
Elongation Ib min. % a |
Yam tsawg kawg nruab nrab absorbed zog KV J ntawm qhov kub thiab txias degree |
|||||||||
| Steel npe | Hlau tus lej |
T Tsawg dua los yog sib npaug rau 16 | 16 | 40 | 60 | l |
t |
l |
t |
| ||||
| MPa * | MPa * | MPa * | MPa * | MPa * | 20 | 0 | -10 | 20 | 0 | ||||
| P195GH | 1.0348 | 195 | - | - | - | 320-440 Nws | 27 | 25 | - | 40 c | 28 d | - | 27 |
FAQ
Q. Koj tswj qhov zoo li cas?
Mill Test Certification yog muab nrog cov khoom xa tuaj, Kev Tshawb Fawb Thib Peb muaj.
Q. Dab tsi yog qhov zoo ntawm koj lub tuam txhab?
Peb muaj ntau tus kws tshaj lij, cov kws tshaj lij, cov nqi sib tw thiab cov kev pabcuam zoo tshaj plaws tomqab muag ntau dua li lwm lub tuam txhab stainless hlau.
Q. Muaj pes tsawg coutries koj twb exported?
Exported rau ntau tshaj 50 lub teb chaws feem ntau yog los ntawm America, UK, Kuwait, Egypt, Iran, Qaib ntxhw, Jordan, Is Nrias teb, thiab lwm yam.
Cim npe nrov: p195gh seamless carbon steel raj rau siab, Tuam Tshoj p195gh seamless carbon steel raj rau siab manufacturers, lwm tus neeg, Hoobkas
