EN 10216-2 P235GH yeeb nkab yog cov hlau tsis-alloy nrog cov kev ua haujlwm siab kub, zoo plasticity, toughness, txias dabtsi yog khoov thiab vuam kev ua tau zoo, raws li European qauv EN10216 thiab EN 10028.
EN10216-2 P235GH carbon steel yeeb nkab yog tshwj xeeb tshaj yog haum rau qhov kub thiab txias ib puag ncig, tuaj yeem tiv taus qhov kub thiab txias, thiab feem ntau yog siv rau hauv kev tsim cov boilers, siab hlab ntsha thiab lwm yam khoom siv uas yuav tsum tau kub thiab siab ua hauj. .
Tsis tas li ntawd, EN10216-2 P235GH txias drawn yeeb nkab muab los ntawm GNEE kuj muaj cov kev pabcuam sib sib zog nqus, suav nrog stamping, dabtsi yog khoov, thiab lwm yam, nrog rau cov kev pabcuam ntxhib xws li qhib thiab stripping. cov
Tshuaj muaj pes tsawg leeg ntawm EN 10216-2 Seamless Steel Boiler Tube
| Element |
% los ntawm huab hwm coj |
Element |
% los ntawm huab hwm coj |
|
Cov pa roj carbon (C) |
Tsawg dua lossis sib npaug rau 0.16 |
Silicon (Si) |
Tsawg dua lossis sib npaug rau 0.35 |
|
Manganese (Mn) |
0.60 rau 1.20 |
Phosphorous (P) (max) |
0.025 |
|
Sulfur (S) (max) |
0.015 |
Aluminium (Al) |
Tsawg dua lossis sib npaug rau 0.020 |
|
Nitrogen (N) |
Tsawg dua lossis sib npaug rau 0.012 |
Chromium (Cr) |
Tsawg dua lossis sib npaug rau 0.30 |
|
Copper (Cu) |
Tsawg dua lossis sib npaug rau 0.30 |
Molybdenum (hli) |
Tsawg dua lossis sib npaug rau 0.08 |
|
Niobium (Nb) |
Tsawg dua lossis sib npaug rau 0.020 |
Nickel (Ni) |
Tsawg dua lossis sib npaug rau 0.30 |
|
Titanium (Ti) (max) |
0.03 |
Vanadium (V) |
Tsawg dua lossis sib npaug rau 0.02 |
Mechanical zog ntawm EN 10216-2 P235GH Seamless Tube
| Qib |
Hom |
Thickness |
Yield zog |
Tensile zog |
Elongation |
Impact Zog |
||
|
-20 degree |
0 degree |
+20 degree |
||||||
|
P235GH |
Li qub |
Tsawg dua los yog sib npaug li 16 |
235 |
360-480 Nws |
24 |
27 |
34 |
40 |
|
|
|
16>kom tsawg dua los yog sib npaug li 40 |
225 |
360-480 Nws |
24 |
27 |
34 |
40 |
|
|
|
40>kom tsawg dua los yog sib npaug li 60 |
215 |
360-480 Nws |
24 |
27 |
34 |
40 |
|
|
|
60>kom tsawg dua los yog sib npaug li 100 |
200 |
360-480 Nws |
24 |
27 |
34 |
40 |
|
|
|
100>los tsawg dua los yog sib npaug li 150 |
185 |
350-480 Nws |
24 |
27 |
34 |
40 |
|
|
|
150>mus tsawg dua los yog sib npaug li 250 |
170 |
350-480 Nws |
24 |
27 |
34 |
40 |

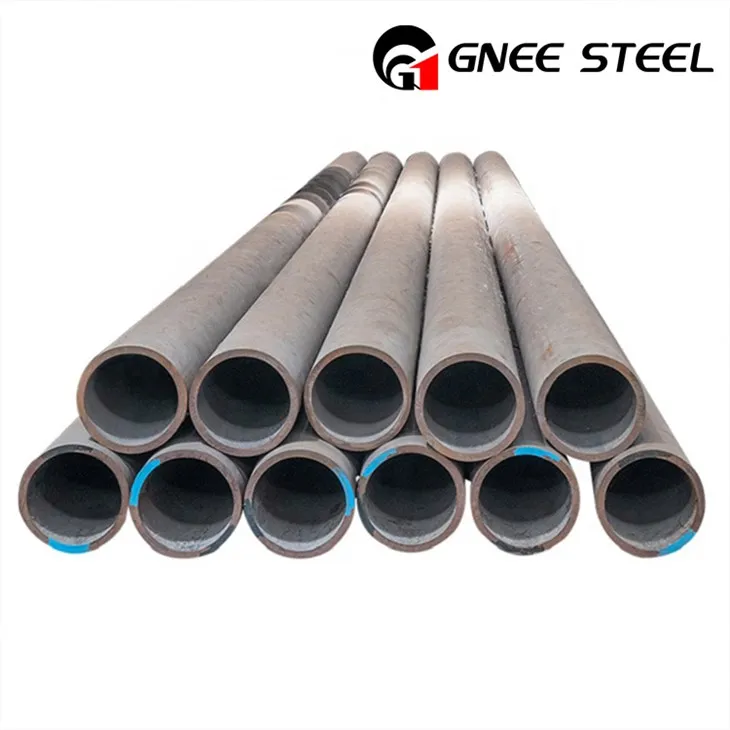

EN 10216-2 P235GH Seamless Carbon Steel Tube
EN 10216-2 P235GH Seamless steel kav rau cov ntawv thov siab - Cov txheej txheem kev xa khoom: Cov kav hlau tsis muaj hlau thiab hlau alloy nrog cov khoom kub siab
Dimensions tolerances ntawm EN 10216-2
Tolerances ntawm sab nraud txoj kab uas hla thiab phab ntsa tuab
| Sab nraud txoj kab uas hla D mm | Tolerances rau D |
Tolerances ntawm T rau T / D piv | |||
| Tsawg dua lossis sib npaug rau 0,025 | > 0,025 Tsawg dua lossis sib npaug rau 0,050 |
> 0,050 Tsawg dua lossis sib npaug rau 0,10 |
> 0,10 | ||
| D Tsawg dua lossis sib npaug rau 219,1 | ± 1% lossis ± 0.5mm qhov twg yog qhov loj dua |
± 12,5% lossis ± 0.4mm qhov twg yog qhov ntau dua | |||
| D > 219,1 | ± 20% | ± 15% | ± 12,5% | ± 10% a | |
| a Rau sab nraud txoj kab uas hla D Ntau dua lossis sib npaug li 355,6 hli nws raug tso cai kom dhau ntawm phab ntsa sab saud hauv zos los ntawm 5% ntawm phab ntsa thickness T | |||||
1.SGS thiab ISO9001 tau ntawv pov thawj.
2.Extra ntev lub sij hawm kev lag luam kev
3.Management system - hauv-tsev software
4.Cov khoom tiav cov khoom muag-tshaj 450 tonnes.
5.Raw cov khoom muag-tshaj 700 tonnes.
Gnee Factory ib puag ncig
Gnee Cov neeg tuaj xyuas
FAQ
1.Q.Vim li cas thiaj xaiv Gnee?
A. Nrog peb, koj yuav tau txais tus nqi sib tw tshaj plaws, lav zoo, lav kev xa khoom thiab kev pab cuam tom qab muag.
2.Q.Koj puas muaj kev tswj xyuas zoo?
A. Yog, peb tau txais BV.SGS ntawv pov thawj.
3.Q: Kuv puas tuaj yeem tau txais qee qhov qauv?
A: Peb zoo siab los muab cov qauv dawb rau koj, tab sis peb tsis muab cov khoom thauj.
Cim npe nrov: EN 10216-2 P235GH Carbon Steel Yeeb Nkab, Tuam Tshoj EN10216-2 P235GH Carbon Steel Pipes manufacturers, lwm tus neeg, Hoobkas
