EN 10216-4 P255QL seamless kavmuab los ntawm GNEE feem ntau yog siv rau hauv cov kev pabcuam nrog qhov kub thiab txias qis li -46 degree . P255QL, steel tooj 1.0452, yog ib qho ntawm cov hlau tsis muaj hlau zoo uas tau teev tseg hauv EN 10216-4. Rau cov ntawv thov cryogenic, EN 10216-4 P255QL yuav tsum tau ua kom tsis muaj menyuam. Tsab ntawv loj "P" sawv cev rau lub hom phiaj siab; "255" sawv cev rau qhov tsawg kawg nkaus tawm lub zog ntawm 255MPa; "Q" sawv cev rau kev kho cua sov rau quenching thiab tempering; "L" sawv cev rau lub hom phiaj kub qis.
Nquag, P255QL qib seamless kav lossis kav dej yuav tsum tau quenched thiab tempered. quenching kub (quenching kub) yog 890 degree rau 930 degree, thiab tempering kub yog 600 degree mus rau 680 degree.
Tshuaj muaj pes tsawg leeg ntawm EN 10216-4 P255QL / 1.0452 yeeb nkab
| Element | Cov ntsiab lus los ntawm pawg,% |
|---|---|
| Cov pa roj carbon (C) | Tsawg dua lossis sib npaug rau 0.17 |
| Silicon (Si) | Tsawg dua lossis sib npaug rau 0.35 |
| Manganese (Mn) | 0.40~1.20 |
| Phosphorus (P) | Tsawg dua lossis sib npaug rau 0.025 |
| Sulfur (S) | Tsawg dua lossis sib npaug rau 0.020 |
| Chromium (Cr) | Tsawg dua lossis sib npaug rau 0.30 |
| Nickel (Ni) | Tsawg dua lossis sib npaug rau 0.30 |
Txhua yam khoom ntawm EN 10216-4 P255QL carbon yeeb nkab
| Lub npe hlau | Hlau Number | Yield zog, MPa |
Tensile zog, MPa |
Elongation A Ntev,% |
Elongation B Hloov pauv,% |
|---|---|---|---|---|---|
| P255QL | 1.0452 | Ntau dua lossis sib npaug li 255 | 360~490 | Ntau dua lossis sib npaug 23 | Ntau dua lossis sib npaug li 21 |

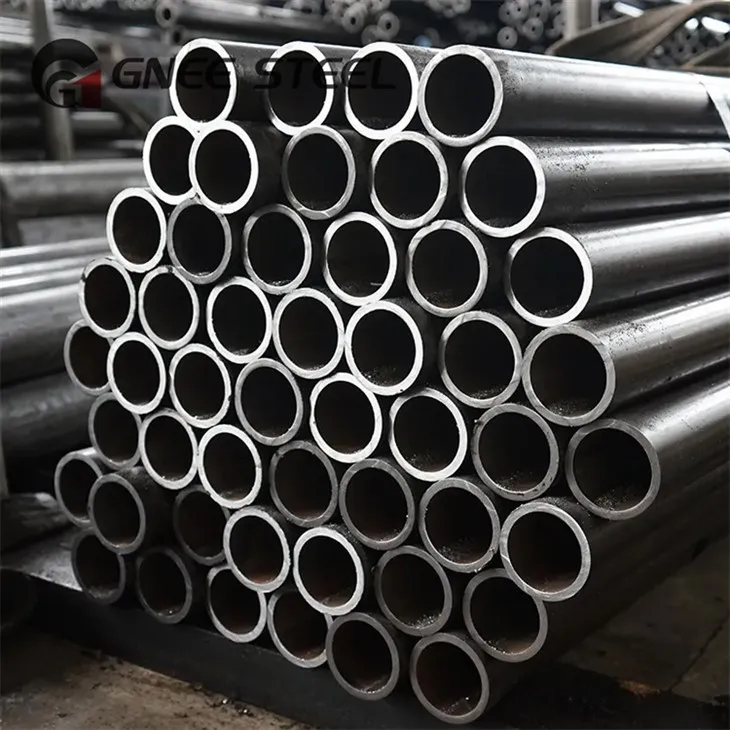

P255QL seamless carbon steel kav
| Specification | Phab ntsa Thickness (t) | Sab nraud txoj kab uas hla (d) | Ntev (l) | Yield zog | Tensile zog |
|---|---|---|---|---|---|
| P255QL | |||||
| Hom 1 | 0.120" | 2.875" | 21' | Ntau dua lossis sib npaug li 255 MPa | Ntau dua lossis sib npaug rau 410-580 MPa |
| Hom 2 | 0.188" | 5.563" | 21' | Ntau dua lossis sib npaug li 255 MPa | Ntau dua lossis sib npaug rau 410-580 MPa |
| Hom 3 | 0.188" | 6.625" | 21' | Ntau dua lossis sib npaug li 255 MPa | Ntau dua lossis sib npaug rau 410-580 MPa |
Peb qhov zoo dua
GNEE yog ib tug thawj coj stockist ntawm P255QL Steel Pipe. Muaj cov khoom zoo tshaj plaws thiab ua rau lawv muaj rau txhua tus ntawm tus nqi tsim nyog.
Tsis tas li ntawd, GNEE lub lag luam tshwj xeeb suav nrog xoom txiav, sib dhos, square txiav, txiav tshwj xeeb zoo li tus, castings, thiab forgings. Cov khoom tuab tuaj yeem ncav cuag 150mm, thiab ntau yam khoom tshwj xeeb thiab cov lus qhia tshwj xeeb tuaj yeem hloov kho.
Yog tias koj tab tom nrhiav P255QL seamless yeeb nkab, thov hu rau peb hauv lub sijhawm kom tau txais nqe lus!sales@gneetube.com
Gnee Factory ib puag ncig
FAQ
Q.Yog kub dov yeeb nkab seamless?
A. Cov kav dej kub dov yog cov yeeb nkab fittings uas tsim los ntawm cov txheej txheem kub dov thiab yog cov khoom siv sib xyaw ua ke.
Q. Koj muab kev pabcuam dab tsi?
A. Kev pabcuam customized rau txhua tus neeg siv khoom, thov koj xav tiv tauj peb!
Q.Koj puas muaj kev tswj xyuas zoo?
A. Yog, peb tau txais BV.SGS ntawv pov thawj.
