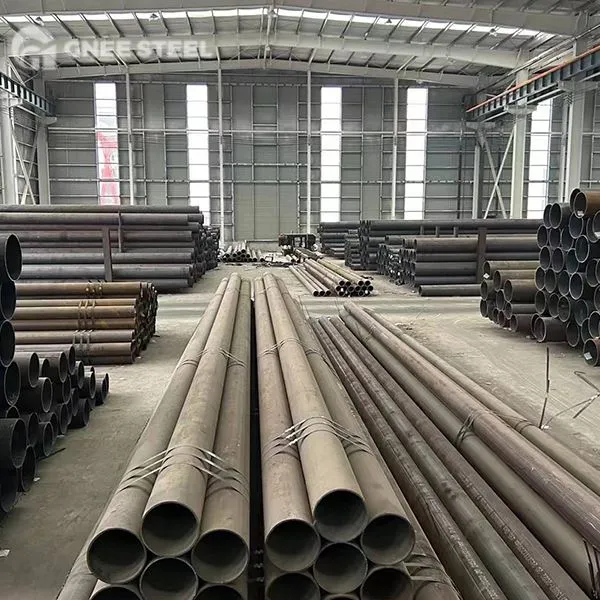

S235jr kub dov cov kav dej piav qhia

S235JR yog European Cov Qauv unalloyed qauv qauv hlau, uas yog sib npaug rau Suav Q235B carbon qauv hlau. Cov hlau no feem ntau yog siv hauv kev tsim kho, kev tsim kho tshuab, kev lag luam automotive, muaj zog siv vim nws lub zog zoo, nrog rau kev siv vuam thiab txiav.

S235JR MS Txheej Txheem Hlau Yeeb Nkab Specification

Khoom npe	S235jr ms qauv steel yeeb nkab
Qhov loj me kom tau	±1%
Od	10-700 hli
Qhov tuab	Kub Rolled: 4mm ~ 20mm
Qho ntev	1-12M
Tej txuj ci tshiab	Kub yob, ect.
Khoom	S235JR, S235JR, S235JR, S235JR, S235JR, S235JR,}}, s235j2, s275Jr, s275Jr, s275Jr, s275Jr, s275J2, s45 {m} j} {13}}, s355J {19}}, s185, s [55JR, S355K {21}}, s275j0, s355j0
Tus qauv	EN10025
Ntawv muaj	MTC ISO9001
Yam ntim	Kev lag luam qauv ntim lossis raws li cov neeg xav tau
Nyiaj them	T / T, L / C, Western Union, Paypal, Apple Pay, Google Them Nyiaj, D / P, MoneyGram
Lub sijhawm khoom xa tuaj	Feem ntau 15 hnub ua haujlwm, koj cov khoom ntim txiav txim siab rau peb lub sijhawm khoom xa tuaj

S235JR cov teeb meem hluav taws xob cov hlau yeeb tshuaj muaj pes tsawg leeg (%)

	muaj pes tsawg	C	Mn	P ^②	S ^②③	CU^④	N ^⑤	Ntau dua
t tsawg dua los yog sib npaug rau 16	Lub min	-	-	-	-	-	-	⑥
t tsawg dua los yog sib npaug rau 16	Tus zuag	0.17	1.4	0.035	0.035	0.55	0.012	⑥

	muaj pes tsawg	C	Mn	P ^②	S ^②③	CU^④	N ^⑤	Ntau dua
16<>	Lub min	-	-	-	-	-	-	⑥
16<>	Tus zuag	0.17	1.4	0.035	0.035	0.55	0.012	⑥

	muaj pes tsawg	C ^①	Mn	P ^②	S ^②③	CU^④	N ^⑤	Ntau dua
t>40	Lub min	-	-	-	-	-	-	⑥
t>40	Tus zuag	0.2	1.4	0.035	0.035	0.55	0.012	⑥

① For profiles with nominal thickness >100 hli, c ntsiab lus yog kev sib ceg.
② Rau cov khoom lag luam ntev, p thiab s cov ntsiab lus yog 0. 005% lossis siab dua.
Rau cov khoom lag luam ntev, yog tias daim ntawv ntawm sulphide hauv cov hlau hloov, cov nqi siab tshaj plaws}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}. Yam tsawg kawg nkaus ntawm 0.0020% CA.
④ Yog tias CU cov ntsiab lus tshaj 0. 40%, thermal embrittlement tuaj yeem ntxias thaum lub thermoforming.
⑤ Nitrogen tsis siv yog tias cov tshuaj lom neeg muaj pes tsawg yam tsawg kawg ntawm 0.015}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}}. tam sim no nyob rau hauv cov xwm txheej ntawm nitrogen ntau tshaj plaws. Nyob rau hauv cov ntaub ntawv no lub nitrogen binder yuav tsum tau sau cia hauv cov ntaub ntawv tshuaj ntsuam xyuas.
(Vi) Yog tias muaj lwm cov ntsiab lus ntxiv, qhov no yuav tsum tau xav txog hauv cov ntaub ntawv tshuaj ntsuam xyuas.

S235JR Cov Khoom Siv Neeg Kho Tshuab

Qhov tuab t lub hli	Lub zog tensile σ_b MPa	paib σ_s MPa	Elongation thaum tawg lossis elongation δ %
t＜3	360~510	Ntau dua los yog sib npaug rau 235	Raws li cov lus qhia
3 tsawg dua lossis sib npaug rau t tsawg dua lossis sib npaug rau 16	360~510	Ntau dua los yog sib npaug rau 235	Ntau dua los yog sib npaug rau 26
16	360~510	Ntau dua los yog sib npaug rau 225	Ntau dua los yog sib npaug rau 26
40	360~510	Ntau dua los yog sib npaug rau 215	Ntau dua los yog sib npaug rau 25
63	360~510	Ntau dua los yog sib npaug rau 215	Ntau dua los yog sib npaug rau 24
80	360~510	Ntau dua los yog sib npaug rau 215	Ntau dua los yog sib npaug rau 24
100	350~500	Ntau dua los yog sib npaug rau 195	Ntau dua los yog sib npaug rau 22
150	340~490	Ntau dua los yog sib npaug rau 185	Ntau dua los yog sib npaug rau 21
200	340~490	Ntau dua los yog sib npaug rau 175	Ntau dua los yog sib npaug rau 21

① Nominal tuab t tsawg dua los yog sib npaug rau 1, elongation tom qab tawg Δ ntau dua los yog sib npaug rau 17
Nominal tuab 1
Nominal tuab 1.5
Nominal tuab 2
⑤ Nominal tuab 2.5

S235JR Vide Hollow Ntu Hlau Raj

S235JR Cov Khoom Siv Hluav Taws Xob Hlau

S235jr kub ua tiav cov leeg

S235JR Hot Formed Circular Hollow Sections

S235jr kub tsim cov kab hollow
