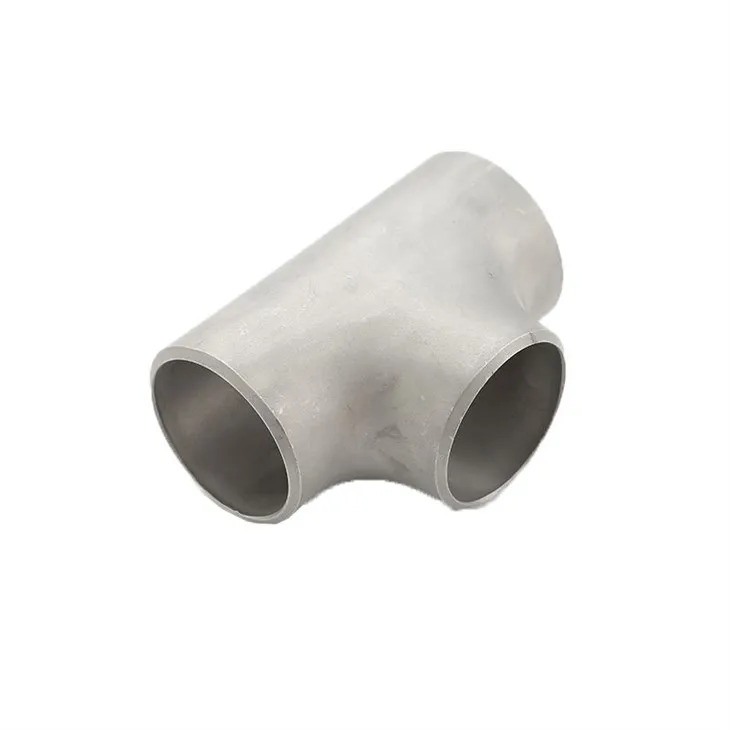

A234 WP5 teehom muaj xws li sib npaug txoj kab uas hla tees, txo tees, thiab lwm yam. Cov khoom ntawm A234 WP5 tees yog alloy steel.
Nws cov specifications thiab phab ntsa thickness tuaj yeem xaiv raws li qhov xav tau tiag tiag thiab siv. Feem ntau hais lus, qhov loj ntawm A234 WP5 tee yog 1/2 "~ 28", phab ntsa tuab yog 3mm ~ 40mm, thiab cov qib siab muaj xws li SCH5, SCH10, thiab SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, thiab lwm yam.
Qhov chaw ua haujlwm kub ntawm A234 WP5 sib npaug ntawm txoj kab uas hla tee feem ntau yog nruab nrab ntawm -29 degree thiab 650 degree .
Alloy Steel ASTM A234 WP5 tee tshuaj muaj pes tsawg leeg
| Element | C | Mn | Si | S | P | Cr | Mo |
| A234 WP5 | Tsawg dua lossis sib npaug rau 0.15 | Tsawg dua lossis sib npaug rau 0.6 | Tsawg dua lossis sib npaug rau 0.5 | Tsawg dua lossis sib npaug rau 0.04 | Tsawg dua lossis sib npaug rau 0.03 | 4-6 | 0.44-0.65 |
Alloy Steel ASTM A234 WP5 Yeeb Nkab Fittings Mechanical Properties
| Element | Lub zog tensile | Yield zog (0.2% Offset) | Elongation | ||||
| A234 WP5 | 415 – 585 | Ntau dua lossis sib npaug rau 205 | Ntau tshaj los yog sib npaug rau 20 |
ASTM A234 Carbon Hlau Tee
| HOM | Socketweld Fittings, Screwed-Threaded Fittings / Seamless / Welded / Fabricated |
| Forged Fittings Chav Kawm | 2000 hli, 3000 hli, 6000 hli, 9000 hli |
| Yeeb Nkab Fittings Thickness | Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch & XXS. |
| Khoov Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D lossis Custom |
| Qib | Alloy hlau ASTM A234 WP5 |
Gnee Steel Lub Tuam Txhab yog lub tuam txhab kev tshaj lij steel kev koom ua ke R & D, tsim khoom, muag thiab kev pabcuam. Nrog rau kev muag khoom txhua xyoo ntawm ze li ntawm US $ 1 nphom thiab txhua xyoo export ntim ntau tshaj 50, 000 tons, nws yog ib lub zeb zeb steel nyob hauv Anyang City, Henan Province nrog kev thauj mus los yooj yim. Lub Hoobkas npog thaj tsam ntawm 35, 000 square meters, lub tuam txhab muaj ntau tshaj 200 tus neeg ua haujlwm, thiab xa tawm mus rau 150 lub teb chaws txhua xyoo.
Gnee Factory ib puag ncig
FAQ
1.Q.Vim li cas thiaj xaiv Gnee?
A. Nrog peb, koj yuav tau txais tus nqi sib tw tshaj plaws, lav zoo, lav kev xa khoom thiab kev pab cuam tom qab muag.
2.Q.Koj puas muaj kev tswj xyuas zoo?
A. Yog, peb tau txais BV.SGS ntawv pov thawj.
3.Q: Kuv puas tuaj yeem tau txais qee qhov qauv?
A: Peb zoo siab los muab cov qauv dawb rau koj, tab sis peb tsis muab cov khoom thauj.
Cim npe nrov: Tuam Tshoj astm a234 wp5 vaj huam sib luag tee manufacturers, lwm tus neeg, Hoobkas
