Dab tsi yog carbon steel flanges?
Carbon Steel Flange Hom thiab Specifications - Octal Flange
Carbon Steel Flange thiab kawg flange connectors yog tsim los ntawm carbon steel. Cov qauv txheem muaj xws li ASTM A694, ASTM A105N (SA105N), MSS SP-44, DIN 2533. Cov kev ntsuas siab ua ke yog los ntawm chav kawm 150 txog 2500. Carbon steel yog cov hlau uas muaj cov pa roj carbon ntau txog 2.1% los ntawm qhov hnyav.
P250GH flange khoom yog dab tsi?
P250gh Flange|1.0460 Dig muag- Slip On- Weld caj dab flange khoom
P250GH Flanges yog kub resistant thiab non-alloyed steel qauv uas ua hauj lwm nyob rau hauv high kub thiab tau yooj yim welded. Nws yog siv rau hauv kev tsim kho valve thiab kev tsim cov flanges thiab couplings.
Flange P250gh tshuaj muaj pes tsawg leeg
| C | Si | Mn | Ni | P | S | Cr | V | Nb | Ti | Al | - |
| 0.18 - 0.23 | max 0.4 | 0.3 - 0.9 | max 0.3 | max 0.025 | max 0.015 | max 0.3 | max 0.02 | max 0.01 | max 0.03 | 0.015 - 0.05 | Cr+Cu+Mo+Ni < 0.7 |
Cov khoom siv carbon steel P250gh
| Nominal thickness (hli): | rau 150 |
| Rm - Tensile zog (MPa) (+ N) | 410-540 |
| KV - Impact zog (J) longitud., | +20 degree 47 |
| Nominal thickness (hli): | rau 150 |
| A - Min. elongation ntawm pob txha (%) (+ N) | 25 |

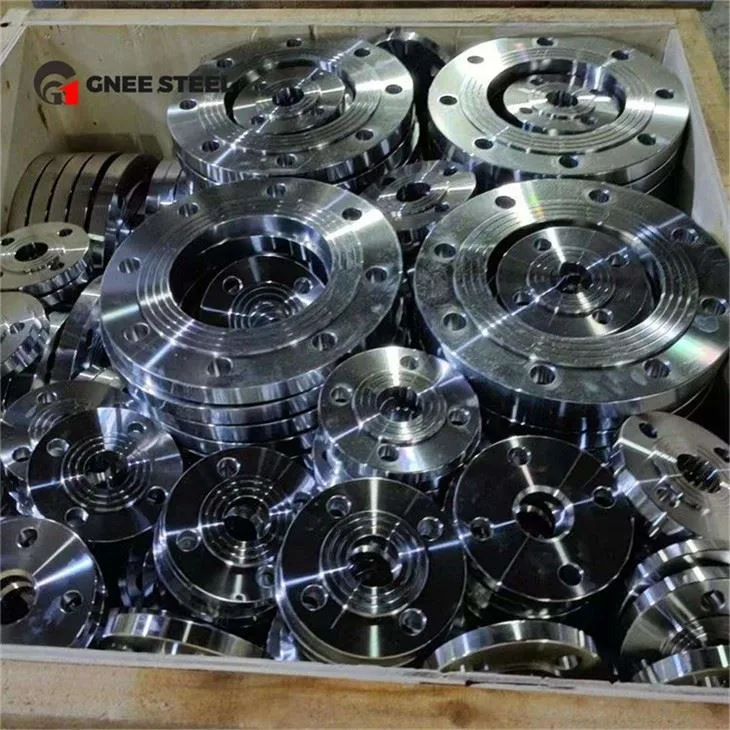

Tsawg Carbon Steel P250gh Qhov Muag Flanges
| Daim Ntawv Loj | 1/2 "(15 NB) rau 48" (1200NB) DN10 ~ DN5000 |
|---|---|
| Cov qauv | API7S-15, API7S-43, API605, ANSI/ASME B16.5, B16.47 Series A & B, B16.48, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, BS4504, BS 10, EN{13}}, DIN, ANSI Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, EN1092 |
| Kev ntsuas siab ANSI | 600 hli, 900 hli, 150 hli, 2500 hli, 300 hli, 1500 hli |
| Kev ntsuas siab hauv DIN | 16 bar 6bar 25bar 40bar 10bar / PN10 PN16 PN6 PN25 PN64 PN40 |
Gnee Steel Lub Tuam Txhab yog lub tuam txhab kev tshaj lij steel kev koom ua ke R & D, tsim khoom, muag thiab kev pabcuam. Nrog rau kev muag khoom txhua xyoo ntawm ze li ntawm US $ 1 nphom thiab txhua xyoo export ntim ntau tshaj 50, 000 tons, nws yog ib lub zeb zeb steel nyob hauv Anyang City, Henan Province nrog kev thauj mus los yooj yim.
Gnee Factory ib puag ncig
FAQ
1.Q.Vim li cas thiaj xaiv Gnee?
A. Nrog peb, koj yuav tau txais tus nqi sib tw tshaj plaws, lav zoo, lav kev xa khoom thiab kev pab cuam tom qab muag.
2.Q.Koj puas muaj kev tswj xyuas zoo?
A. Yog, peb tau txais daim ntawv pov thawj BV.SGS.
3.Q: Kuv puas tuaj yeem tau txais qee qhov qauv?
A: Peb zoo siab los muab cov qauv dawb rau koj, tab sis peb tsis muab cov khoom thauj.
Cim npe nrov: Tuam Tshoj carbon steel p250g flange manufacturers, lwm tus neeg, Hoobkas
