DIN444 eyebolts feem ntau yog ua los ntawm carbon steel, xws li Q235 thiab 45 # steel. Cov ntaub ntawv no muaj cov cuab yeej zoo thiab ua haujlwm zoo. Txhawm rau txhim kho corrosion kuj thiab zoo nkauj ntawm lub qhov muag, lawv feem ntau yog galvanized. Galvanizing tuaj yeem tsim cov kab tuab zinc nyob saum npoo ntawm cov ntsia liaj qhov rooj, yog li qeeb qeeb ntawm cov xeb thiab corrosion ntawm ntsia liaj qhov rooj.
DIN444 eyebolts muaj qhov nqa qhov muag thiab ib feem xov. Lub qhov muag qhov muag feem ntau yog siv los txuas cov hlua khi, cov hlua khi lossis lwm yam khoom siv nqa, thaum lub xov tooj yog siv los koom tes nrog cov txiv ntseej lossis lwm yam fasteners kom ua tiav cov nyhuv nruj.
Cov ntaub ntawv khoom

| Ntsia Hlau Xov d |
M5 | M6 | M8 | ||
|---|---|---|---|---|---|
| P | Suab | 0.8 | 1 | 1.25 | |
| Ntev ntawm Xov b |
L Tsawg dua lossis sib npaug li 125 | 16 | 18 | 22 | |
| 125<L Tsawg dua lossis sib npaug rau 200 | - | - | 28 | ||
| L>200 | - | - | - | ||
| d2 | min =nominal loj | 5 | 6 | 8 | |
| max | 5.03 | 6.03 | 8.036 | ||
| Sd | max | 12 | 14 | 18 | |
| Hom A | min | 10.9 | 12.9 | 16.9 | |
| Hom B thiab C | min | 11.57 | 13.57 | 17.57 | |
| r | Nominal Loj | 2.5 | 4 | 4 | |
| max | 3.75 | 6 | 6 | ||
| min | 1.875 | 3 | 3 | ||
| s | Hom A | max | 8 | 9 | 11 |
| min | 7.52 | 8.52 | 10.3 | ||
| Hom B thiab C | max | 6 | 7 | 9 | |
| min | 5.88 | 6.85 | 8.85 | ||
Cov khoom tso tawm

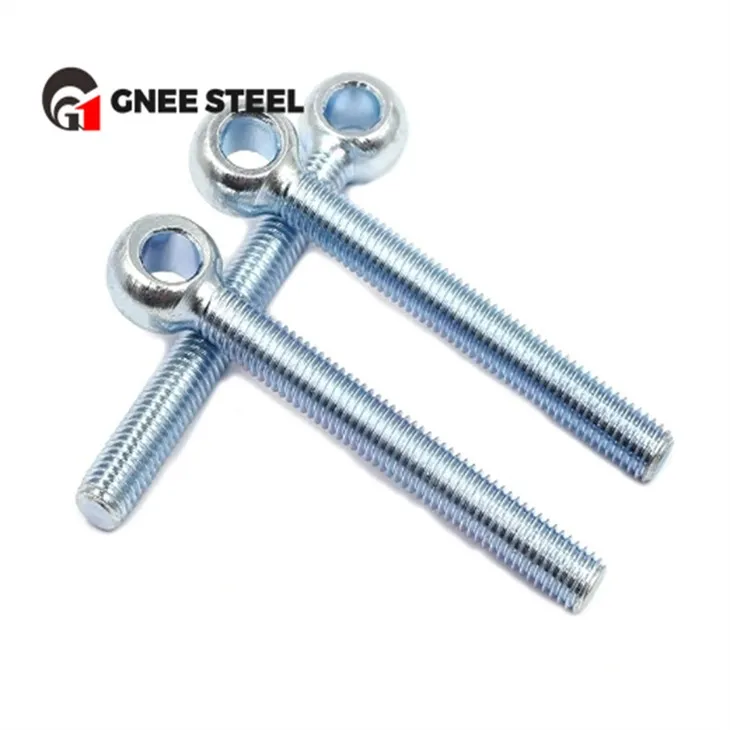

Hlau Yellow Zinc Plated DIN444 Qhov Muag Bolts
