Lub cev ntawm DIN6923 flange txiv ntoo yog hexagonal, uas yog yooj yim rau zawm thiab loosening nrog ib tug ciaj ntswj los yog pliers. Ib qho kawg ntawm cov txiv ntoo muaj qhov loj ntawm flange nto, uas tuaj yeem muab qhov chaw sib cuag loj dua thiab txhim khu kev ruaj ntseg thiab kev sib khi ntawm kev sib txuas. Qee qhov DIN6923 hexagonal flange ceev yuav muaj cov hniav los tiv thaiv cov hniav lossis cov qauv tiv thaiv kom tsis txhob xoob ntawm qhov chaw vibrating.
Lub DIN6923 flange ceev muab los ntawm GNEE yog ua los ntawm ntau yam ntaub ntawv, xws li cov pa roj carbon tsawg, nruab nrab carbon steel, stainless hlau (xws li 304, 316, 316L, thiab lwm yam), titanium alloy, aluminium, thiab lwm yam. Kev kho deg muaj xws li zinc. plating (xws li zinc dawb, xiav thiab dawb zinc, dub zinc, xim zinc, thiab lwm yam), blackening, silver plating, tooj liab plating, nickel plating, thiab lwm yam.
Cov ntaub ntawv khoom
| Txoj kab uas hla D | Xov Pitch P | dc max | m | s | ||
| max | min | max | min | |||
| M5 | 0.8 | 11.8 | 5 | 4.7 | 8 | 7.78 |
| M6 | 1 | 14.2 | 6 | 5.7 | 10 | 9.78 |
| M8 | 1/1.25 | 17.9 | 8 | 7.6 | 13 | 12.73 |
| M10 | 1/1.25/1.5 | 21.8 | 10 | 9.6 | 15 | 14.73 |
| M12 | 1.25/1.5/1.75 | 26 | 12 | 11.6 | 18 | 17.73 |
| M14 | 1.5/2 | 29.9 | 14 | 13.3 | 21 | 20.67 |
| M16 | 1.5/2 | 34.5 | 16 | 15.3 | 24 | 23.67 |
| M20 | 1.5/2.5 | 42.8 | 20 | 18.9 | 30 | 29.67 |
Cov khoom tso tawm

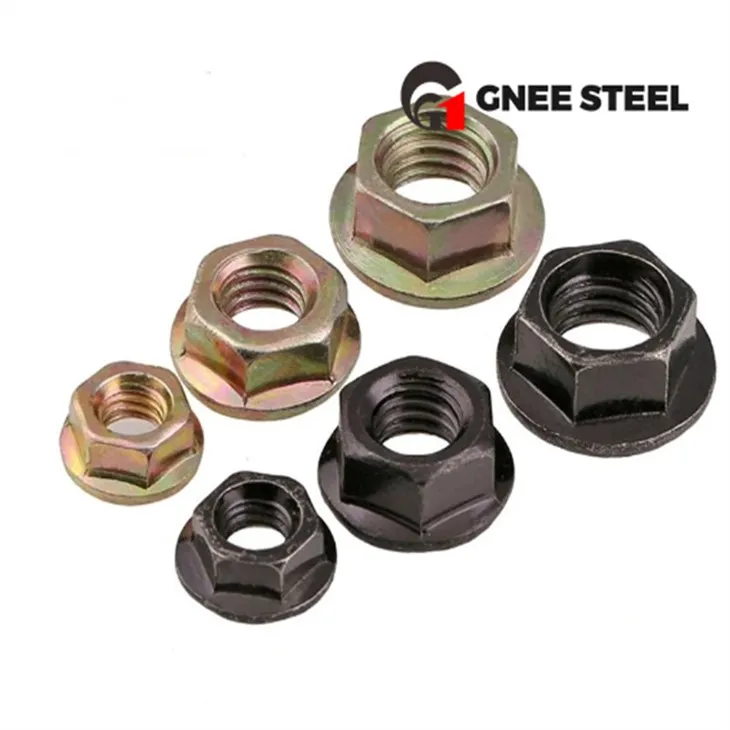

Stainless hlau Hex Flange ceev
Vim li cas thiaj xaiv GNEE
GNEE yog tus thawj coj hauv kev lag luam fastener, muab cov kev pabcuam dav dav suav nrog kev tsim, kev tsim kho, kev tsim khoom, kev muag khoom thiab kev txhawb nqa tom qab muag.
Peb tshwj xeeb hauv kev tsim cov ntsia hlau, thauj tog rau nkoj, bolts, ceev thiab formwork accessories, ntxhua khaub ncaws, ntsia hlau rivets thiab lwm yam khoom siv, thiab nruj me ntsis ua raws li cov qauv kev tswj hwm zoo thoob plaws hauv cov txheej txheem tsim khoom.
Cov khoom raug xa tawm mus rau ntau tshaj 70 lub teb chaws suav nrog Middle East, Russia, Asia, Europe, Africa thiab America.
Yog tias muaj lus nug, thov hu rau peb dawb los ntawm E-mail lossis Xov Tooj.sales@gneetube.com
GNEE Cov neeg siv khoom tuaj xyuas
GNEE GROUP PARTICIPATED IN THE NECC EXHIBITION
GNEE Factory Environment
GNEE packaging thiab Shipping
FAQ
Q.Koj puas muaj kev tswj xyuas zoo?
A. Yog, peb tau txais BV.SGS ntawv pov thawj.
Q.Koj puas tuaj yeem muab cov qauv?
A. Yog, cov qauv dawb muaj rau qhov ntau thiab tsawg, tab sis cov neeg yuav khoom yuav tsum them tus nqi thauj khoom.
Q. Koj nyob qhov twg? Kuv tuaj yeem tuaj xyuas koj?
A.Sure, koj tuaj yeem tuaj xyuas peb lub Hoobkas txhua lub sijhawm.
