DIN7340 galvanized steel rivet ceev yog ib hom fastener dav siv nyob rau hauv chassis txee thiab ntawv hlau industries.
Raws li cov khoom siv, lawv suav nrog S-hom ceev-txiav steel rivet ceev, CLS-hom stainless hlau rivet txiv ntoo, SP-hom stainless hlau rivet txiv ntoo, thiab CLA-hom tooj liab thiab txhuas rivet ceev kom tau raws li qhov xav tau ntawm kev siv sib txawv. . DIN7340 rivet txiv ntseej yog ncig hauv cov duab, nrog embossed hniav thiab qhia grooves ntawm ib kawg. Cov hniav embossed yog nias rau hauv lub preset qhov ntawm daim ntawv hlau, thiab cov hniav ntawm cov rivet ceev yog nyem rau hauv lub phaj los ntawm lub siab, ua rau cov yas deformation nyob ib ncig ntawm lub preset qhov, yog li ua ib tug locking nyhuv. Qhov kev tsim no ua kom lub nraub qaum ntawm lub phaj tag nrho, uas yog ob qho tib si zoo nkauj thiab siv tau.
Cov ntaub ntawv khoom
| Metric Technical Data & Muaj | |||||||
| Xov Txoj kab uas hla |
Grip Range GR (mm) |
Lub qhov taub D (mm) |
Lub cev Dia (mm) |
Lub taub hau taub DK (hli) |
Lub taub hau Thickness K (mm) |
Ntev L (mm) |
Muaj |
| M3 | 0.5 – 1.5 | 4.8 | 4.7 | 5.4 | 0.4 | 9.0 |
| M4 | 0.5 – 2.0 | 6.4 | 6.3 | 7.1 | 0.5 | 10.5 |
| M5 | 0.5 – 3.0 | 7.2 | 7.1 | 8.1 | 0.6 | 12.0 |
| M6 | 0.5 – 3.5 | 9.6 | 9.5 | 10.3 | 0.6 | 15.0 |
| M8 | 0.7 – 3.8 | 10.6 | 10.5 | 11.5 | 0.6 | 16.0 |
| M10 | 1.0 – 4.0 | 12.8 | 12.7 | 13.9 | 0.7 | 20.0 |
Cov khoom tso tawm

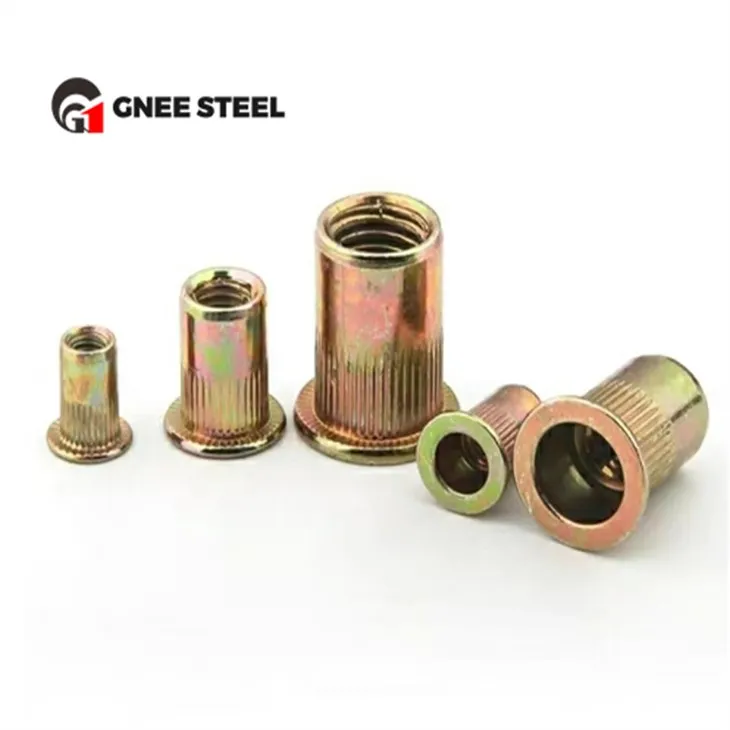

Galvanized Zinc Plated DIN7340 Rivet txiv ntoo
Vim li cas thiaj xaiv GNEE
Cov qauv khoom: DIN, BS, ASME, ANSI, GB, Q, kuj txhawb cov khoom tsis yog tus qauv, cov khoom siv kho mob.
Cov khoom tseem ceeb: hexagonal bolts, hexagonal txiv ntseej, cov yam ntxwv bolts, wedge anchors, hexagon socket bolts, flange bolts, flange ceev, U-bolts, T-bolts, threaded rods, studs thiab ntau yam hlau qhov chaw.
DIN933 DIN931 FDIN92 DIN934 DIN985 DIN982 DIN7991 ISO7380 DIN6923 DIN125 DIN127 DIN975 yog txhua yam hauv Tshuag.
Yog tias muaj lus nug, thov hu rau peb dawb los ntawm E-mail lossis Xov Tooj.sales@gneetube.com
GNEE Cov neeg siv khoom tuaj xyuas
GNEE GROUP PARTICIPATED IN THE NECC EXHIBITION
GNEE Factory Environment
GNEE packaging thiab Shipping
FAQ
Q. Koj puas yog lub Hoobkas lossis tuam txhab lag luam?
A. Peb yog cov chaw tsim khoom nrog cov ntawv pov thawj ntshuam thiab xa tawm. Peb lub tuam txhab muaj kev nplua nuj nyob rau hauv fastener export.
Q. Koj puas tuaj yeem muab cov qauv dawb?
A. Yog, peb tuaj yeem muab cov qauv dawb rau cov khoom lag luam, tsuas yog them tus nqi thauj khoom, thiab nws yuav xa rov qab rau koj qhov kev txiav txim.
Q. Koj tus nqi zoo li cas?
A. Tus nqi sib tw thiab tsim nyog.
High efficiency efficiency, siab zoo thiab zoo stability.
