DIN7984 lub taub hau qis hexagon socket bolts yog hom tshwj xeeb ntawm bolts, nws cov yam ntxwv muaj xws li lub taub hau qis thiab cov duab hexagonal, thiab feem ntau yog siv rau hauv cov ntawv thov uas xav tau kev sib txuas siab.
DIN7984 bolts feem ntau yog ua los ntawm cov ntaub ntawv muaj zog, xws li hlau alloy lossis stainless hlau, kom tau raws li cov khoom siv tshwj xeeb. Cov bolts no tuaj yeem ncav cuag qib 8.8 lossis siab dua kom ntseeg tau tias muaj kev ntseeg siab thiab ruaj khov nyob rau hauv cov xwm txheej hnyav.
Vim lub zog siab thiab zoo heev torque kis tau tus yam ntxwv ntawm DIN7984 bolts, lawv tau dav siv nyob rau hauv ntau yam kev lag luam teb, xws li tab sis tsis txwv rau kev tsim kho, machinery manufacturing, aerospace, thiab kev thauj mus los.
Cov ntaub ntawv khoom
| Xov specification | M3 | M4 | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M18 | M20 | M22 | M24 | |
| d | ||||||||||||||
| P | suab | 0.5 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | 2.5 | 2.5 | 3 |
| b | L Tsawg dua lossis sib npaug li 125 | 12 | 14 | 16 | 18 | nees nkaum ob | 26 | 30 | 34 | 38 | 42 | 46 | 50 | 54 |
| 125＜L Tsawg dua lossis sib npaug li 200 | - | - | - | - | 28 | 32 | 36 | 40 | 44 | 48 | 52 | 56 | 60 | |
| L＞200 | - | - | - | - | - | - | - | - | 57 | 61 | 65 | 69 | 73 | |
| ua dk | max=nominal | 5.5 | 7 | 8.5 | 10 | 13 | 16 | 18 | nees nkaum ib | nees nkaum plaub | 27 | 30 | 33 | 36 |
| yam tsawg kawg nkaus | 5.32 | 6.78 | 8.28 | 9.78 | 12.73 | 15.73 | 17.73 | 20.67 | 23.67 | 26.67 | 29.67 | 32.61 | 35.61 | |
| ds | max=nominal | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | nees nkaum ob | nees nkaum plaub |
| yam tsawg kawg nkaus | 2.86 | 3.82 | 4.82 | 5.82 | 7.78 | 9.78 | 11.73 | 13.73 | 15.73 | 17.73 | 19.67 | 21.67 | 23.67 | |
Cov khoom tso tawm

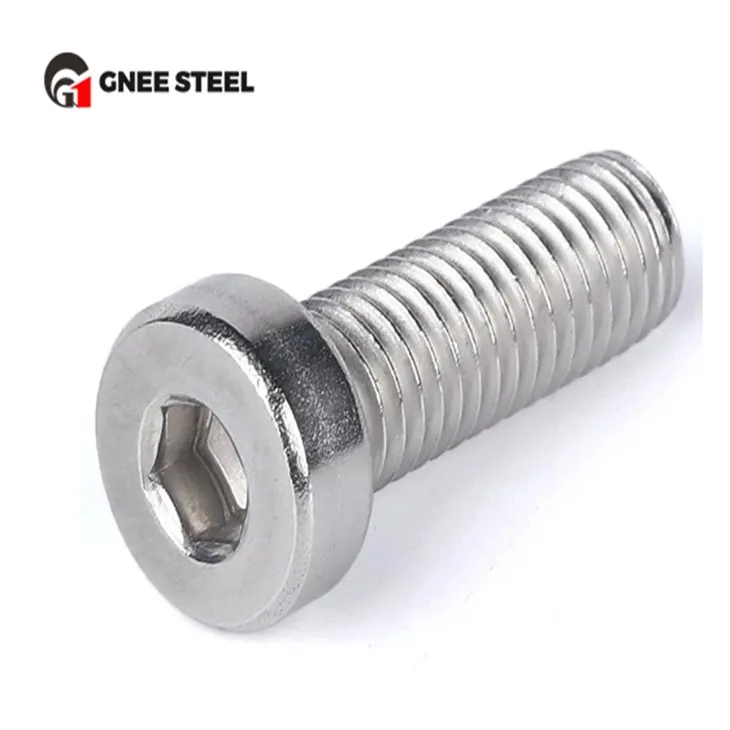

DIN7984 Stainless hlau khob taub hau ntsia hlau
Vim li cas thiaj xaiv GNEE
GNEE yog lub tuam txhab nrog ntau tshaj 16 xyoo ntawm kev paub hauv kev lag luam fastener. Peb tuaj yeem muab cov kev pabcuam tshaj lij thiab cov khoom siv rau koj.
Peb tuaj yeem tsim ntau yam qauv, xws li: DIN, ASTM, ASME / ANSI, BS thiab lwm yam qauv. Peb cov khoom siv dav siv hauv tshuab, petrochemical thiab lwm yam kev lag luam. Peb muaj cov khoom zoo, muaj peev xwm ntau lawm, khoom xa tuaj raws sijhawm thiab kev soj ntsuam zoo tom qab muag.
Yog tias muaj lus nug, thov hu rau peb dawb los ntawm E-mail lossis Xov Tooj.sales@gneetube.com
GNEE Cov neeg siv khoom tuaj xyuas
GNEE GROUP PARTICIPATED IN THE NECC EXHIBITION
GNEE Factory Environment
FAQ
Q: Puas tuaj yeem muab kev pabcuam OEM / ODM?
A: Yog. Thov koj xav tiv tauj peb kom paub meej ntxiv sib tham.
Q: Koj Lub Sijhawm Them Nqi Li Cas?
A: Ib qho yog 30% tso nyiaj los ntawm TT ua ntej ntau lawm thiab 70% sib npaug tiv thaiv daim B / L.
Q: Peb puas tuaj yeem tuaj xyuas koj lub Hoobkas?
A: Zoo siab txais tos. Thaum peb muaj koj lub sijhawm, peb yuav npaj pab pawg muag khoom los ua raws li koj qhov xwm txheej.
Cim npe nrov: Tuam Tshoj din7984 lowhead hex socket bolts manufacturers, lwm tus neeg, Hoobkas
