Ntxig txiv ntseej, tseem hu ua embedded ceev, embedded ceev, inlaid tooj liab ceev los yog embedded ceev, yog fasteners uas embed inserts nrog internal threads thiab knurling los yog lwm yam qauv nyob rau hauv lub sab nrauv rau hauv yas los yog lwm yam khoom alloy. Lawv feem ntau yog siv los ntawm cov khoom yas los tsim cov xov zoo ntawm cov khoom tseem ceeb.
Cov txheej txheem tsim khoom ntawm SS316 ntxig cov txiv ntseej muab los ntawm GNEE feem ntau siv cov tshuab dhos tsis siv neeg precision, suav nrog knurling, drilling, tapping, chamfering thiab lwm cov kauj ruam los xyuas kom meej tias txhua tus txiv ntoo tsis eccentric lossis tsis muaj cov hniav. Nws yog dav siv hauv aerospace, khoom siv hluav taws xob, kev ntsuas, khoom siv sib txuas lus thiab lwm yam lag luam.
Cov ntaub ntawv khoom
| Technical Data & Muaj | ||||||
| Xov Txoj kab uas hla |
Ntev (mm) |
D1 (mm) |
D2 (mm) |
Qhov (socket) A/F (mm) |
Pilot Qhov (mm) |
Suab (mm) |
| M4 | 8.0 | 8.5 | 5.5 | 4 | 5.6 rau 6. 0 | 0.70 |
| M5 | 10.0 | 10.9 | 6.7 | 5 | 7.5 rau 7.9 | 0.80 |
| M6 | 10.0 | 11.7 | 7.5 | 6 | 8.7 rau 9.1 | 1.00 |
| M8 | 20.0 | 14.2 | 9.5 | 8 | 11.1-11.5 Nws | 1.25 |
Cov khoom tso tawm

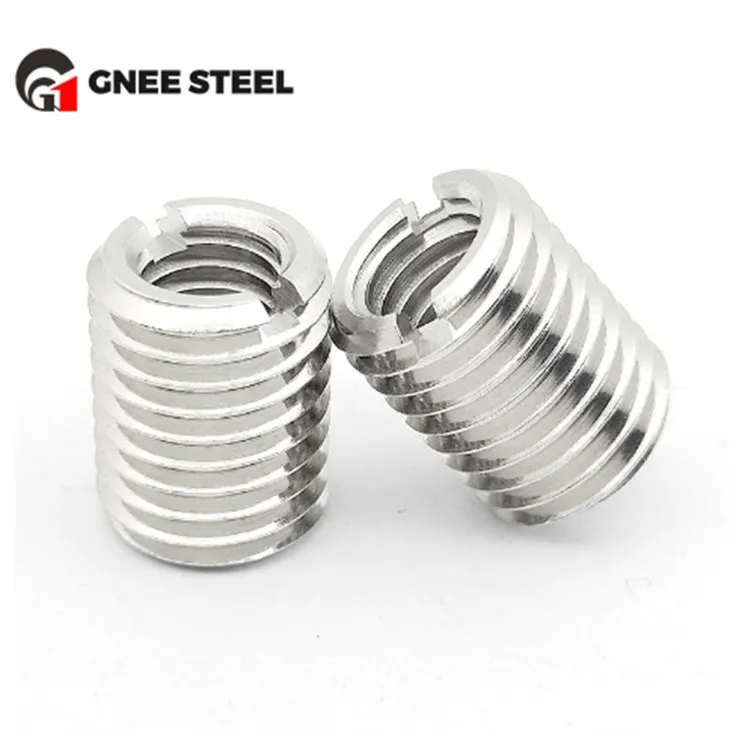

SS304 SS316 Stainless hlau Insert txiv ntseej
Vim li cas thiaj xaiv GNEE
GNEE yog ib lub tuam txhab OEM fastener manufacturing, plating / tiav thiab muaj ntau lawm tuam txhab. Nrog rau ntau tshaj 16 xyoo ntawm stainless hlau fastener manufacturing kev, kev lag luam kev thiab lub xeev-of-the-art chaw. Peb tuaj yeem muab cov hlau tsis muaj steel ntau tshaj plaws los yog tsim tshwj xeeb fasteners.
Cov khoom raug xa tawm mus rau ntau tshaj 60 lub teb chaws thiab cheeb tsam suav nrog Russia, Canada, Is Nrias teb, Brazil, thiab Southeast Asia.
Yog tias muaj lus nug, thov hu rau peb dawb los ntawm E-mail lossis Xov Tooj.sales@gneetube.com
GNEE CUSTOMER VAJTSWV
GNEE GROUP PARTICIPATED IN THE NECC EXHIBITION
GNEE Factory Environment
GNEE packaging thiab Shipping
FAQ
Q. Koj tus nqi zoo li cas?
A. Cov khoom zoo, tus nqi tsim nyog. Thov muab ib qho lus nug rau kuv thiab peb yuav muab ib nqe lus rau koj tam sim ntawd.
Q. Koj tswj qhov zoo li cas?
A. Peb xav kom lub tuam tsev tswj xyuas qhov zoo los tshuaj xyuas txhua qhov kev sib txuas ntawm txhua pawg ntawm cov khoom. Tom qab cov khoom tiav lawm, peb tuaj yeem muab koj nrog MTC thiab daim ntawv pov thawj Hoobkas.
