ASTM A210 yog tus qauv npog seamless nruab nrab-carbon steel boiler thiab superheater raj. Seamless nruab nrab carbon steel yeeb nkab rau boiler raj thiab boiler flue yeeb nkab, nrog rau ib tug tsawg kawg nkaus phab ntsa thickness ntawm kev ruaj ntseg sab, lub dome thiab cov kev txhawb nqa raj thiab superheater raj.
Cov qib ntau lawm ntawm ASTM A210 high-pressure alloy kav suav nrogA210A1thiabA210C.
Tsis tas li ntawd, ASTM A210 alloy kav kuj tau kho tshwj xeeb, xws li passivation thiab txheej, ntxiv dag zog rau lawv cov corrosion kuj, yog li txuas ntxiv lawv lub neej kev pab thiab kev ntseeg tau.

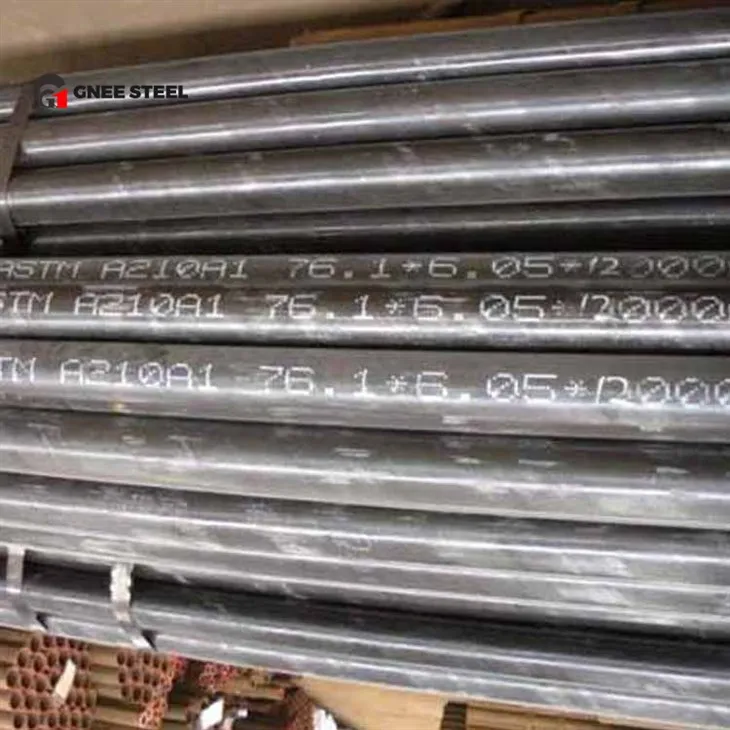

ASTM A210 Gr A1 / C Seamless Carbon Boiler Tube
Tshuaj muaj pes tsawg leeg ntawm ASTM A210 yeeb nkab
| Hlau Standard | Qib Steel | ASTM A210 Tshuaj Compostion | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| C | Si | Mn | P | S | Cr | Mo | Cu | Ni | V | ||
| ASTM A 210 Cov Lus Qhia | A-1 | Tsawg dua lossis sib npaug rau 0.27 | Ntau dua lossis sib npaug rau 0.10 | Tsawg dua lossis sib npaug rau 0.93 | Tsawg dua lossis sib npaug rau 0.035 | Tsawg dua lossis sib npaug rau 0.035 | |||||
| C | Tsawg dua lossis sib npaug rau 0.35 | Ntau dua lossis sib npaug rau 0.10 | 0.291.06 | Tsawg dua lossis sib npaug rau 0.035 | Tsawg dua lossis sib npaug rau 0.035 | ||||||
Mechanical Property ntawm ASTM A210 Boiler Tube
| ASTM A210 Steel Qib | Yield zog (Mpa) | Tensile zog (Mpa) | Elongation (%) |
|---|---|---|---|
| A-1 | Ntau dua lossis sib npaug li 255 | Ntau dua lossis sib npaug li 415 | Ntau tshaj los yog sib npaug rau 30 |
| C | Ntau dua lossis sib npaug li 275 | Ntau dua lossis sib npaug rau 485 | Ntau tshaj los yog sib npaug rau 30 |
Specification ntawm ASTM A210 Seamless Alloy Tubes
OD: 48mm -720mm
WT: 4mm -58mm
Ntev: 2m-12m lossis raws li xav tau
Nto: Roj-dip, kua roj vanish, Passivation, Phosphating, txhaj tshuaj blasting.
Lub xeev tus me nyuam: Annealed, Normalized, Normalized thiab Tempered.
Qib Steel: Qib A -1, Qib C
Vim li cas thiaj xaiv GNEE ASTM A210 Steel raj
A210 Seamless Tubes uas tsim los ntawm GNEE tuaj yeem ua los ntawm kev sib xyaw ua ke los yog isothermal annealed tej yam kev mob. Normalized thiab tempered tej yam kev mob kuj muaj. Muaj ntau qhov ntau thiab tsawg, qauv, specifications thiab qib siab muaj. Qhov loj me yog los ntawm 1/2NB txog 36NB. Thiab cov khoom zoo nrog cov chaw tsim khoom lub Hoobkas kuaj daim ntawv pov thawj.
Tsis tas li ntawd, peb kuj muab kev pabcuam xws li decoiling, txiav, vuam, pleev xim, thiab lwm yam.
Yog tias koj tab tom nrhiav seamless raj, thov xa email rau peb!sales@gneetube.com
Factory ib puag ncig ntawm Seamless A210 Steel Pipe
Gnee Cov neeg tuaj xyuas
FAQ
Q.Koj puas muaj kev tswj xyuas zoo?
A. Yog, peb tau txais BV.SGS ntawv pov thawj.
Q. Koj lub sijhawm ua haujlwm yog dab tsi?
A. Feem ntau, peb lub sijhawm xa khoom yog nyob rau hauv 7-45 hnub.
Q: Koj puas muaj kev paub dhau los rau cov haujlwm loj?
A: Yog, peb ua .peb muaj kev paub zoo rau ntau qhov haujlwm loj, xws li cov chaw tsim hluav taws xob, Nuclear fais fab chaw nres tsheb, roj refining project, natural gas project .Abillity ua hauj lwm nrog loj project.
