A249 TP 316Ti steel yeeb nkab yog austenitic stainless hlau uas muaj titanium hauv nws cov tshuaj muaj pes tsawg leeg.
Qhov sib ntxiv ntawm titanium ua rau 316Ti stainless hlau welded yeeb nkab ntau corrosion thiab kub resistant dua li cov hlau zoo sib xws. Ua ke nrog cov pa roj carbon los tsim titanium carbide, nws pab kom ruaj khov ntawm cov khoom siv los ntawm kev nkag siab, txheej txheem ntawm kev tiv thaiv chromium-nplua nuj nplej los ntawm depleted los ntawm cov hlau microstructure ntawm qhov kub thiab txias, yog li txhim kho nws corrosion kuj.
ASME SA249 TP 316Ti stainless hlau boiler raj yog dav siv hauv boilers thiab cov khoom siv zoo sib xws hauv kev lag luam xws li petrochemicals, zaub mov, tshuaj, thiab lub zog.
Daim ntawv thov ntawm SA249 TP 316Ti Boiler Tube
Cov ntaub ntawv khoom
ASTM A249 TP 316Ti Boiler Tube Chemical Composition
| Qib | C | Si | Mn | Cr | Ni | Mo | S | P | N | Ti |
|---|---|---|---|---|---|---|---|---|---|---|
| TP 316 Ti | 0.08 | 0.75 | 2.00 | 16 – 18 | 10 – 14 | 2 – 3 | 0.03 | 0.045 | 0.10 | 5X (C + N)– 0.70 |
316Ti Stainless Hlau Tubing Mechanical Properties
| Qib | Tensile zog, Min, Mpa (Ksi) | YieldMin, Mpa (Ksi) | Elongation, Min (%) | Hardness, HRB |
|---|---|---|---|---|
| 316 Ti | 515 (75) | 205 (30) | 35 | 90 |
ASME SA249 TP 316Ti Welded Tube Tolerances
| OD | Toleracne |
|---|---|
| 25.40 hli | ± 0.10mm |
| Ntau dua lossis sib npaug li 25.4mm ~ 38.1mm | ± 0.15 hli |
| Ntau dua lossis sib npaug li 38.1mm ~ 50.8mm | ± 0.20mm |
| Ntau dua lossis sib npaug li 50.8mm ~ 63.5mm | ± 0.25 hli |
| Ntau dua lossis sib npaug li 63.5mm ~ 76.2mm | ± 0.30mm |
| Ntau dua lossis sib npaug li 76.2mm ~ 101.6mm | ± 0.38mm |
| Ntau dua lossis sib npaug li 101.6mm ~ 190.5mm | +0.38mm -0.64mm |
| Ntau dua lossis sib npaug li 190.5mm ~ 228.6mm | +0.38mm -1.14mm |
Cov khoom tso tawm

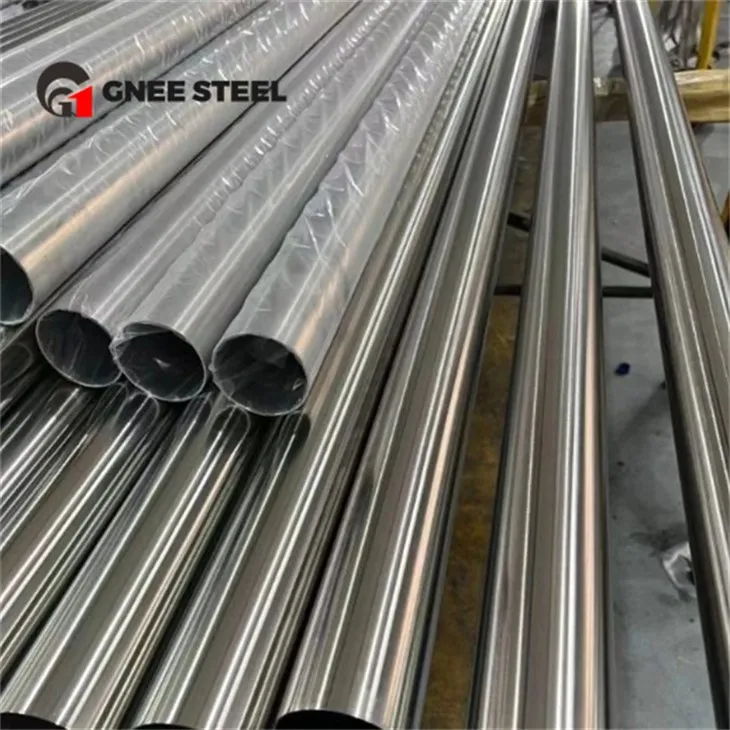

ASME SA249 TP 316Ti Welded Tube
Vim li cas thiaj xaiv GNEE
GNEE yog tus kws tshaj lij cov yeeb nkab xa tawm nrog 12 cov kab ntau lawm thiab cov khoom tsim tawm txhua xyoo ntawm 50, 000 tons. Nws tau txais daim ntawv pov thawj ISO9001 thoob ntiaj teb kev tswj hwm kev ua haujlwm zoo.
Tsis tas li ntawd, peb tseem tuaj yeem muab ntau yam kev pabcuam ua haujlwm: txiav, chamfering, xuas nrig ntaus, vuam, dabtsi yog khoov, txiav, pickling.
Peb cov neeg ua haujlwm paub txog ib txwm muaj los tham txog koj cov kev xav tau thiab ua kom cov neeg siv khoom txaus siab tag nrho. Koj cov lus nug yeej ib txwm txais tos!sales@gneetube.com
GNEE CUSTOMER VAJTSWV
GNEE Factory Environment
GNEE packaging thiab Shipping
FAQ
Q.Kuv tuaj yeem ntseeg koj li cas?
A. Peb xav tias kev ncaj ncees yog qhov tseem ceeb ntawm peb lub tuam txhab, koj tuaj yeem paub nws tus kheej kom koj tuaj yeem tshawb xyuas peb cov credit.
Q. Koj puas muaj kev tswj xyuas zoo?
A. Yog, peb muaj peb tus kheej lub chaw soj ntsuam zoo.
Q. Koj lub sijhawm ua haujlwm yog dab tsi?
A. Feem ntau, peb lub sijhawm xa khoom yog nyob rau hauv 7-45 hnub.
