SUS420J2 stainless hlau seamless yeeb nkab yog tsim raws li Japanese cov qauv kev lag luam thiab belongs rau 420 series stainless hlau. Nws muaj siab hardness, lub zog thiab hnav tsis kam. Nyob rau tib lub sij hawm, nws muaj corrosion kuj zoo nyob rau hauv tej yam kev mob. Ib txheej ntawm oxide zaj duab xis yog tsim rau ntawm qhov chaw, uas tuaj yeem ua lub luag haujlwm tiv thaiv corrosion.
Tsis tas li ntawd, SUS420J2 steel yeeb nkab muaj siab hardness thiab tsim nyog rau kev tsim riam, txiav cov cuab yeej thiab lwm yam uas yuav tsum tau muaj siab hardness thiab hnav tsis kam.
Cov ntaub ntawv khoom
JIS SUS 420J2 Martensitic Stainless Steel Pipe Specifications
Chemical Composition (%)
| Qib | C | Si | Mn | P | S | Cr | Ni | Mo |
| SUS420J2 | 0.26-0.40 | 1 0 max | 1 0 max | 0.040 max | 0.030 max | 12.0-14.0 | 0.60 max | – |
Mechanical zog
| Qib hlau | Std. | 0.2% Yield zog N / mm² |
Tensile zog N / mm² |
Elongation (%) |
Hardness | |
|---|---|---|---|---|---|---|
| Hv | HRC | |||||
| SUS420J2 | JIS Standards | Ntau dua lossis sib npaug li 225 | Ntau dua lossis sib npaug li 540 | Ntau dua lossis sib npaug li 18 | Tsawg dua los yog sib npaug li 99 | Tsawg dua lossis sib npaug li 247 |
Lub cev muaj zog ntawm SUS420J2 suav nrog:
· Melting point: txog 1390 degree
· Cov peev xwm kub tshwj xeeb: txog 0.42 J/(g·K)
· Thermal conductivity: txog 15 W / (m·K) nyob rau hauv thaj tsam ntawm 100 ~ 500 degree
· Linear expansion coefficient: txog 10^-6/K hauv thaj tsam ntawm 100 ~ 500 degree
· Resistivity: txog 0.52 μΩ·mm^2/m
· Longitudinal elastic modulus: txog 200 GPa
Qhov ceev: txog 7.76 g / cm3
· Hardness: txog 235 HBW hauv lub xeev annealed, txog 217 HBW tom qab quenching thiab tempering
· Cov khoom sib nqus: sib nqus
Cov khoom tso tawm

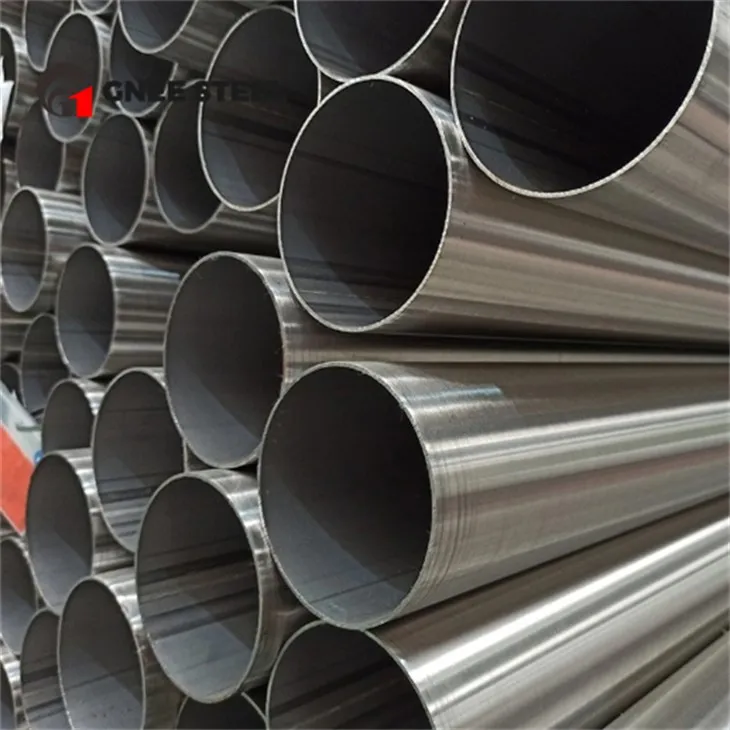

JIS SUS420J2 Stainless Hlau Round Yeeb Nkab
Vim li cas thiaj xaiv GNEE
GNEE yog nruab nrog cov khoom siv hauv chav ua ntej thiab tuaj yeem tsim ntau hom stainless hlau muaj welded kav raws li cov neeg siv khoom xav tau.
1. Cov khoom siv hauv online tsis siv neeg ntau lawm, npog 14-273 calibre stainless hlau welded yeeb nkab khoom.
2. Cov cuab yeej siv vuam tsis siv neeg, plasma vuam, submerged arc vuam, argon arc vuam thiab lwm yam vuam txoj kev los xyuas kom meej vuam zoo.
3. Nruab nrog online weld hlaws leveling, online ci annealing thiab lwm yam yeeb nkab ua khoom siv los xyuas kom meej flatness.
Peb muaj cov khoom ruaj khov, xa khoom sai thiab kev pabcuam tomqab muag, yog li peb cov khoom tau qhuas.sales@gneetube.com
GNEE CUSTOMER VAJTSWV
GNEE Factory Environment
GNEE packaging thiab Shipping
FAQ
Q. Koj lub tuam txhab cov khoom tseem ceeb yog dab tsi?
A: Peb cov khoom tseem ceeb yog stainless hlau round tubes / square tubes, thiab lwm yam.
Q. Koj lub tuam txhab qhov zoo yog dab tsi?
A: Peb muaj ntau tus kws tshaj lij, cov kws tshaj lij, cov nqi sib tw ntau dua li lwm cov tuam txhab stainless hlau, thiab cov kev pabcuam zoo tom qab muag.
Cim npe nrov: jis sus420j2 stainless hlau yeeb nkab, Tuam Tshoj jis sus420j2 stainless hlau yeeb nkab manufacturers, lwm tus neeg, Hoobkas
