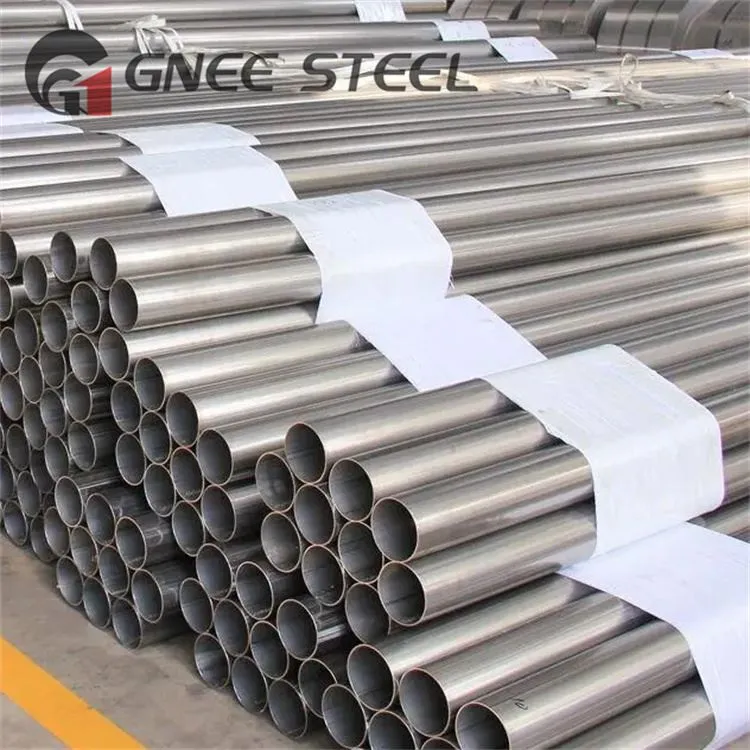

Stainless hlau UNS S31635 Fabricated Pipes
Hom 316Ti yog titanium-stabilized variant ntawm 316 alloy uas muaj molybdenum los txhim kho corrosion kuj, txhim kho tsis kam rau pitting chloride ion daws teeb meem thiab nce lub zog ntawm qhov kub thiab txias.
316Ti stainless hlau yeeb nkabyog titanium stabilized variant ntawm 316 alloy. Qhov no molybdenum-muaj austenitic chromium-nickel stainless hlau txhim kho corrosion kuj, tsub kom tsis kam rau pitting nyob rau hauv cov tshuaj chloride ion daws, thiab muab lub zog ntau dua ntawm qhov kub thiab txias. Nws cov khoom zoo ib yam li cov Alloy 316 Yeeb Nkab, tshwj tsis yog tias 316Ti Stainless Steel Clad Pipe tuaj yeem siv tau ntawm qhov kub thiab txias vim qhov sib ntxiv ntawm titanium. Txhim kho corrosion kuj, tshwj xeeb tshaj yog rau sulfuric acid, hydrochloric acid, acetic acid, formic acid thiab tartaric acid, acidic sulfates thiab alkaline chlorides.
Stainless hlau UNS S31635 Pipes sib npaug qib
| Qib | 316 Ti | |
| UNS No | S31635 | |
| Laus British | BS | 320S31 |
| En | X6CrNiMoTi17-12-2 | |
| Euronorm | Tsis muaj | 1.4571 |
| AFNOR | Z6CNDT17-12 | |
| GOST | 08Ch17N13M2T | |
| Japanese JIS | SUS 316 Ti | |
ASTM A312 UNS S31635 Pipes Mechanical Properties
| Qib | UNS S31635 | |
|---|---|---|
| Tensile zog (MPa) min | 515 | |
| Yield Strength 0.2% Pov thawj (MPa) min | 205 | |
| Elongation (% hauv 50mm) min | 35 | |
| Hardness | Rockwell B (HR B) max | 75 |
| Rockwell B (HR B) max | 205 | |
Stainless hlau UNS S31635 Pipes
lub cev muaj zog
Ceev: 0.29 lbs/in³, 7.99 g/cm³
Resistivity: Microhm-cm
68 ° F (20 degree): 29.4 (74.0)
Cov cua kub tshwj xeeb: BTU / lb / degree F (kJ / kg·K):
{{0}} degree F (0-100 degree): 0.12 (0.50)
Thermal conductivity: BTU/hr/ft²/ft/degree F (W/m·K):
Ntawm 212 degree F (100 degree): 9.4 (16.2)
Ntawm 932 degree F (500 degree): 12.4 (21.4)
Qhov nruab nrab thermal expansion coefficient, hauv / hauv / degree F (μm / m·K):
{{0}} degree F (0-100 degree): 8.9 x 10 (16.0)
{{0}} degree F (0-315 degree): 9.0 x 10 (16.2)
32-1000 degree F (0-538 degree): 9.7 x 10 (17.5)
32-1200 degree F (0-649 degree): 10.3 x 10 (18.5)
32-1500ºF (0-871ºC): 11.1 x 10 (18.5)
Modulus ntawm elasticity: KSI (MPa)
28. 0 x10³ (193 x10³) tensile zog
11.2 x Torque 10³ (77 x 10³)
Sib nqus permeability: H=200 Oersteds: Annealed:<1.02 max.
