GNEE, raws li tus kws tshaj lij kev xa khoom ntawmDIN 17175 tus qauv steel kav, xa tawm mus rau 60 lub teb chaws thiab cheeb tsam txhua xyoo.
Ntawm lawv, DIN 17175 13CrMo44 seamless steel kav yuav ua tau los ntawm kub dov, txias dov, kub nias, kub kos duab los yog txias txoj kev. Nws tuaj yeem smelted nyob rau hauv ib qho qhib hearth los yog hluav taws xob rauv raws li txoj kev oxygen tshuab, thiab tag nrho cov hlau yuav tsum tau cam khwb cia zoo li qub.
DIN 17175 13CrMo44 tshav kub-resistant steel yeeb nkab Steels uas muaj cov khoom siv zoo ntawm qhov kub thiab txias, txog 600 degree, thiab txawm tias nyob rau hauv lub sij hawm ntev loads hu ua cua sov-resistant steels.
DIN 17175 13CrMo44 chromium-molybdenum alloy steel kav yuav siv tau los tsim cov chav boilers, kav dej, cov hlab ntsha siab thiab cov cuab yeej ua haujlwm siab txog 600 degree thiab kub siab.
Cov ntaub ntawv khoom
Kev kho cua sov ntawm DIN 17175 13CrMo44 Boiler Tubes
| Qib Steel | Thermal processing ºC | NormalizingºC | Tempering | ||
| Qib | Khoom naj npawb | Quenching kub ºC | Tempering kub ºC | ||
| 13 CrMo44 | 1.7335 | 1100 txog 850 degree | - | 910-940 | 660-730 |
Dimensions kam rau ua ntawm 13CrMo44 Heat Resistant Seamless Steel Pipe
| Qhov project | Txuj | Qhov ntau thiab tsawg | Ua siab ntev | |||
| Sab nraud txoj kab uas hla | DIN17175 | Kub dov steel yeeb nkab | OD Tsawg dua lossis sib npaug li 100mm | ± {{0}}.75% (Min ± 0.5mm) | ||
| OD>100 ~ 320 hli | ± 0.9% | |||||
| Cold drawn steel yeeb nkab OD Tsawg dua los yog sib npaug rau 120mm | ± {{0}}.6% (Min ± 0.25mm) | |||||
| Phab ntsa thickness | DIN17175 | OD Tsawg dua lossis sib npaug li 130mm | WT Tsawg dua lossis sib npaug rau 2Sn | +15%~-10% | ||
| WT > 2Sn~4Sn | +12.5%~-10% | |||||
| WT > 4 Sn | ± 9% | |||||
| 130 < OD Tsawg dua lossis sib npaug li 320mm | WT Tsawg dua lossis sib npaug rau 0.05OD | +17.5%~-12.5% | ||||
| {{0}}.05OD < WT Tsawg dua lossis sib npaug rau 0.11OD | ± 12.5% | |||||
| WT > 0.11OD | ± 10% | |||||
Cov khoom tso tawm

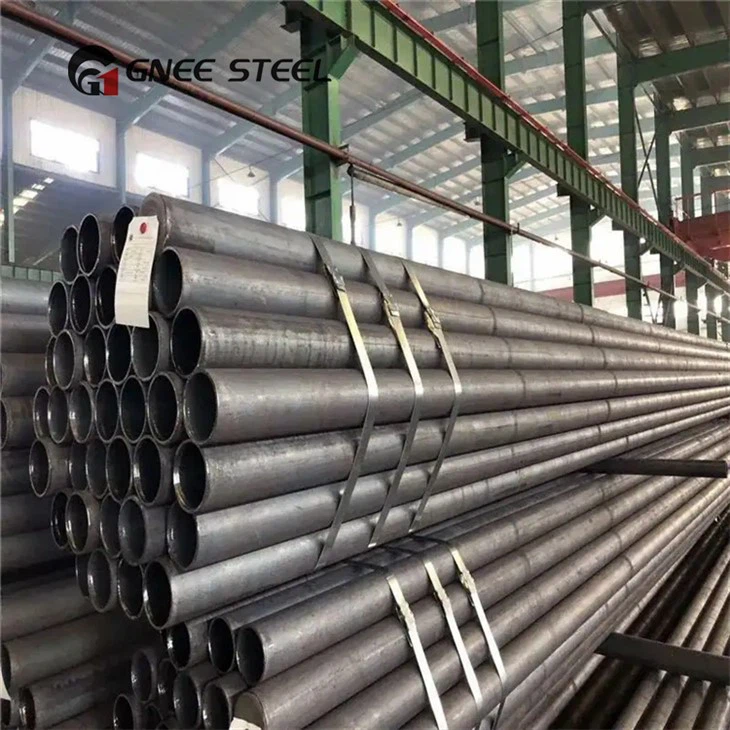

DIN 17175 13CrMo44 Siab Siab Hlau Yeeb Nkab
Vim li cas thiaj xaiv GNEE
GNEE muaj 14 steel ntau lawm kab, 10 cov khoom siv rau kev ua, dabtsi yog khoov, txheej, kev kho cua sov, txiav, drilling, beveling, tempering, nto kho, thiab lwm yam., ua tiav cov cuab yeej kuaj thiab muaj zog technical force. Lub peev xwm tsim tau txhua xyoo yog ntau dua 60, 000 tons.
Yog tias koj xav paub ntau ntxiv txog peb lub tuam txhab lossis peb cov khoom, thov koj xav tiv tauj peb.sales@gneetube.com
GNEE CUSTOMER VAJTSWV
GNEE GROUP PARTICIPATED IN THE NECC EXHIBITION
GNEE Factory Environment
GNEE packaging thiab Shipping
FAQ
Q. Koj nyob qhov twg? Kuv tuaj yeem tuaj xyuas koj?
A.Sure, koj tuaj yeem tuaj xyuas peb lub Hoobkas txhua lub sijhawm.
Q. Koj qhov kev pab cuam tom qab muag yog dab tsi?
A. Peb muab kev pab cuam tom qab muag thiab 100% kev ruaj ntseg zoo rau peb cov khoom.
Q. Koj lub sijhawm xa khoom yog dab tsi?
A. Lub sij hawm xa tuaj feem ntau yog li 1 lub hlis, yog tias peb muaj Tshuag, peb tuaj yeem xa tuaj hauv 7 hnub.
