DIN17175 10CrMo910 steel yeeb nkab yog cov yeeb nkab steel hlau ua raws li cov qauv kev lag luam hauv German, uas yog cov khoom siv kub thiab kub siab steel yeeb nkab.
GNEE tsim nyog ntxiv cov ntsiab lus hlau xws li Cr thiab Mo los ntawm lub hauv paus ntawm cov pa roj carbon zoo steel los txhim kho cov khoom siv kho tshuab, toughness thiab hardenability ntawm 10CrMo910 tshav kub-resistant steel yeeb nkab.
Lub siab tsim ntawm 10CrMo910 seamless steel yeeb nkab feem ntau yog 9.8MPa, qhov ntsuas siab yog 14.7MPa, thiab qhov ntsuas kub yog 540 ° C. Cov txheej txheem muab khoom yog feem ntau normalized + tempered, thiab nws yog tsim nyog los ntawm ultrasonic flaw detection. Nws yog tsuas yog siv los tsim superheaters nrog phab ntsa kub hauv qab 590 degree thiab headers thiab chav kav nrog phab ntsa kub txog 540 degree.
Cov ntaub ntawv khoom
Kev kho cua sov ntawm DIN 17175 10CrMo910 Seamless Steel Tubes
| Qib Steel | Thermal processing ºC | NormalizingºC | Tempering | ||
| Qib | Khoom naj npawb | Quenching kub ºC | Tempering kub ºC | ||
| 10 CrMo910 | 1.7380 | 1100 txog 850 degree | - | 900-960 | 700-750 |
Tshuaj muaj pes tsawg leeg ntawm DIN 17175 10CrMo910 khoom yeeb nkab
| Txheem: DIN 17175 | qib | Tshuaj muaj pes tsawg leeg | |||||
| C | Si | Mn | P,S | Cr | Mo | ||
| 10 CrMo910 | 0.08-0.15 | Tsawg dua lossis sib npaug rau 0.50 | 0.40-0.70 | Tsawg dua lossis sib npaug rau 0.030 | 2.00-2.50 | 0.90-1.20 | |
Cov cuab yeej cuab tam ntawm DIN 17175 10CrMo910 Seamless Alloy Steel Tube
| Txuj | qib | Tensile zog (MPa) | Yield zog (MPa) | Elongation (%) |
| TIAB SA 17175 | 10 CrMo910 | 450-600 | Ntau dua lossis sib npaug li 280 | Ntau dua lossis sib npaug li 18 |
Cov khoom tso tawm

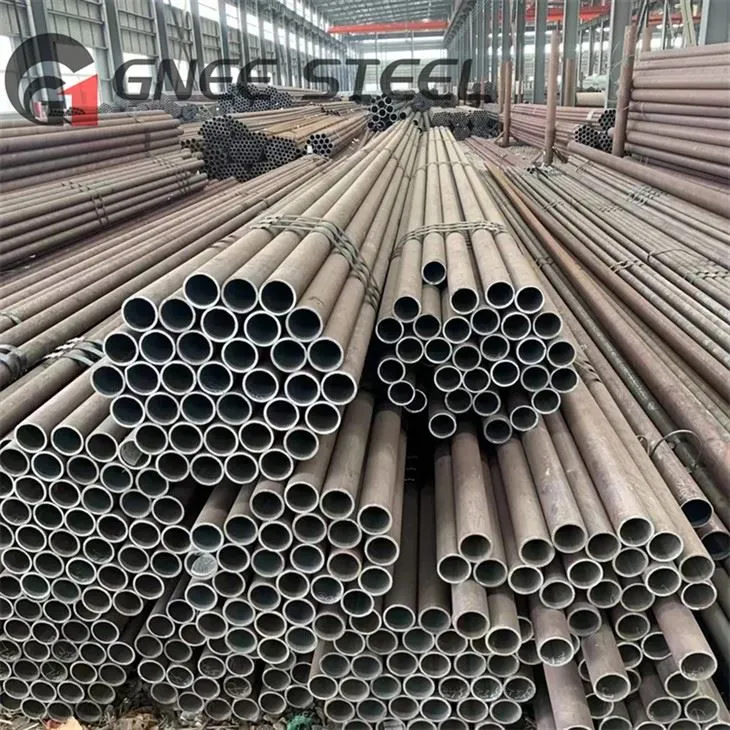

10CrMo910 High Pressure Steel Yeeb Nkab
Vim li cas thiaj xaiv GNEE
GNEE muaj 14 steel ntau lawm kab, 10 cov khoom siv rau kev ua, dabtsi yog khoov, txheej, kev kho cua sov, txiav, drilling, beveling, tempering, nto kho, thiab lwm yam., ua tiav cov cuab yeej kuaj thiab muaj zog technical force. Lub peev xwm tsim tau txhua xyoo yog ntau dua 60, 000 tons.
Nyob rau tib lub sijhawm, peb kuj muab cov neeg siv khoom nrog sandblasting, polishing, hlau kos duab, anodizing, electrophoresis, ceramic electrophoresis, flash electrophoresis, hmoov txheej, thermal rwb thaiv tsev.
Yog tias koj xav paub ntau ntxiv txog peb lub tuam txhab lossis peb cov khoom, thov koj xav tiv tauj peb.sales@gneetube.com
GNEE CUSTOMER VAJTSWV
GNEE GROUP PARTICIPATED IN THE NECC EXHIBITION
GNEE Factory Environment
GNEE packaging thiab Shipping
FAQ
Q. Koj nyob qhov twg? Kuv tuaj yeem tuaj xyuas koj?
A.Sure, koj tuaj yeem tuaj xyuas peb lub Hoobkas txhua lub sijhawm.
Q. Koj qhov kev pab cuam tom qab muag yog dab tsi?
A. Peb muab kev pab cuam tom qab muag thiab 100% kev ruaj ntseg zoo rau peb cov khoom.
Q. Koj lub sijhawm xa khoom yog dab tsi?
A. Lub sij hawm xa tuaj feem ntau yog li 1 lub hlis, yog tias peb muaj Tshuag, peb tuaj yeem xa tuaj hauv 7 hnub.
Cim npe nrov: din17175 10crmo910 kub resistant steel yeeb nkab, Tuam Tshoj din17175 10crmo910 kub resistant steel yeeb nkab manufacturers, lwm tus neeg, Hoobkas
