GNEE tsim 10CrMo5-5 steel kav raws li seamless alloy steel kav raws li EN 10216-2 thiab reheated thiab muab nyob rau hauv tag nrho annealed, isothermal annealed los yog normalized quenched thiab tempered tej yam kev mob.
EN {{0}}CrMo Qib 5 -5 alloy steel seamless yeeb nkab muaj cov tshuaj lom neeg muaj pes tsawg leeg nrog ntxiv ntawm 1.00-1.50 chromium thiab 0.45-0.65 molybdenum. Qhov tsawg kawg nkaus tensile lub zog ntawm cov kabmob yog 410 Mpa thiab lub zog tensile siab tshaj plaws yog 560 Mpa. EN 10216-2 10CrMo{11}} qib yeeb nkab muaj qhov tsawg kawg nkaus tawm lub zog ntawm 275Mpa.
Tshuaj muaj pes tsawg leeg ntawm EN 10216-210CrMo5-5 SeamlessSteelTubes
| Qib Steel | Hlau Number | C | Si | Mn | P max | Smax |
| 10CrMo5-5 | 1.7338 | Tsawg dua lossis sib npaug rau 0,15 | 0.50 rau 1.00 | {{0}},30 rau 0,60 | 0,025 | 0,010 |
| Cr | Mo | Ni | Al tot | Cu |
| 1, 00 rau 1,50 | {{0}},45 rau 0,65 | Tsawg dua lossis sib npaug rau 0,30 | Tsawg dua lossis sib npaug rau 0,040 | Tsawg dua lossis sib npaug rau 0,30 |
Mechanical zog ntawm EN 10216-2 10CrMo5-5 Tsawg Alloy Yeeb Nkab
| Qib Steel | Upper yield zog los yog pov thawj zog R eH los yog Rp 0,2 rau phab ntsa Thickness Tmin. | Tensile Lub zog Rm |
Elongation Ib min. % a |
|||||
| Lub npe hlau | Hlau Number | T Tsawg dua los yog sib npaug rau 16 | 16 | 40 | 60 | l |
t |
| |
| MPa * | MPa * | MPa * | MPa * | MPa * | ||||
| 10CrMo5-5 | 1.7338 | 275 | 275 | 265 | - | 410-560 Nws | 22 | 20 |
Kub dov steel kav EN 10216-2 10CrMo5-5
EN 10216-2 10CrMo5-5 Seamless steel tubes Paub meej
Tsim: Seamless txheej txheem
Phab ntsa thickness (WT): 2.1mm --20 hli.
Sab nraud txoj kab uas hla (OD): 21 mm--509mm
Ntev: 6M lossis ntev raws li qhov xav tau.
Xaus: Plain End, Beveled End, Treaded
Cov nqe lus them nqi: T / T, LC
Kev xa khoom: 7-15 hnub tom qab them nyiaj
Pob: Pob (hexagonal), Ntoo Box, Crates (steel / ntoo) los yog raws li xav tau
Vim li cas thiaj xaiv GNEE 10CrMo{1}} hlau raj
EN 10216-2 10CrMo5-5 cov kav dej seamless tuaj yeem ua tau los ntawm kev ua kom zoo nkauj los yog isothermal annealing. Normalizing thiab tempering tej yam kev mob kuj muaj. Muaj nyob rau hauv ntau qhov ntau thiab tsawg, qauv, specifications thiab kev ntsuas siab. Qhov ntau thiab tsawg ntawm 1/2NB txog 36NB. Phab ntsa thickness sib txawv nyob ntawm qhov txias dov los yog txias dov txoj kev.
Yog tias koj tab tom nrhiav 10CrMo5-5 yeeb nkab seamless, thov hu rau peb kom tau txais cov lus tsocai!sales@gneetube.com

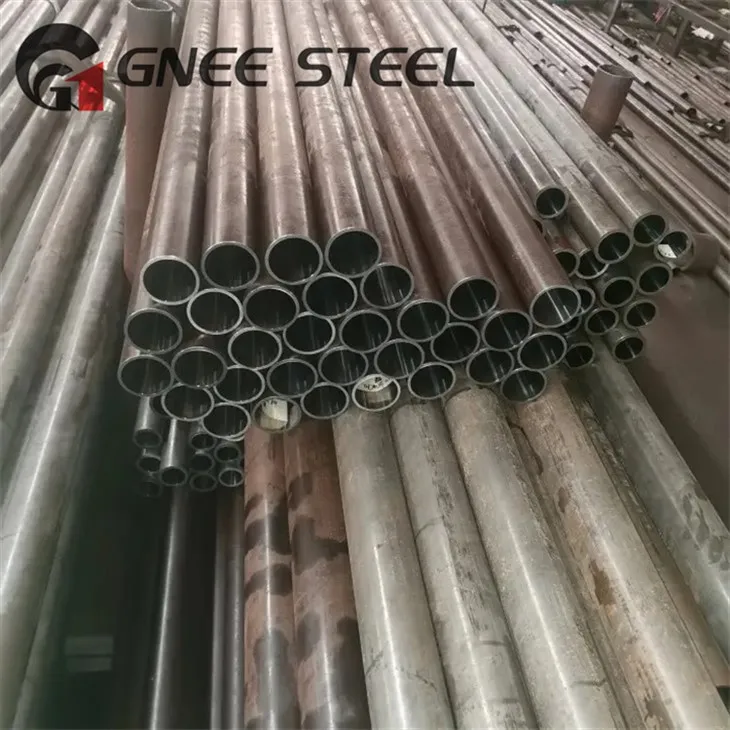

Factory ib puag ncig ntawm 10CrMo5-5 steel hlau yeeb nkab
FAQ
Q.Yog kub dov yeeb nkab seamless?
A. Cov kav dej kub dov yog cov yeeb nkab fittings uas tsim los ntawm cov txheej txheem kub dov thiab yog cov khoom siv sib xyaw ua ke.
Q. Koj muab kev pabcuam dab tsi?
A. Kev pabcuam customized rau txhua tus neeg siv khoom, thov koj xav tiv tauj peb!
Q.Koj puas muaj kev tswj xyuas zoo?
A. Yog, peb tau txais BV.SGS ntawv pov thawj.
