DIN 17175 19Mn5 seamless carbon steel yeeb nkab yog cov yeeb nkab zoo seamless steel yeeb nkab, feem ntau yog siv nyob rau hauv qhov kub thiab txias ib puag ncig, xws li chaw nres tsheb fais fab boiler nruas.
GNEE muab DIN 17175 19Mn5 seamless steel kav nrog ib txoj kab uas hla sab nraud ntawm 10mm-426mm thiab phab ntsa tuab ntawm 1mm-80mm. Tsis tas li ntawd, cov kav hlau uas tsis yog tus qauv uas muaj cua sov nthuav dav ntawm 219mm-1020mm thiab phab ntsa thicknesses ntawm 6mm{10}}mm kuj tuaj yeem muab tau.
Tsis tas li ntawd, GNEE muab cov kev pabcuam ua haujlwm suav nrog tab sis tsis txwv rau stamping, dabtsi yog khoov, flattening, slitting thiab lwm yam kev pabcuam, nrog rau kev xa mus rau lub Hoobkas kom tau raws li qhov xav tau ntawm cov neeg siv khoom.
Cov ntaub ntawv khoom
Tshuaj muaj pes tsawg leeg ntawm DIN 17175 19Mn5 tshav kub resistant yeeb nkab
|
Qib |
Chemical Composition (%) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| C | Si | Mn | P | S | Ni | Cr | Mo | Lwm tus | |
| 19mn 5 | 0.17~0.22 | 0.30~0.60 | 1.00~1.30 | 0.040Max | 0.040Max | - | 0.30Max | - | - |
Mechanical zog ntawm DIN 17175 19Mn5 alloy steel kav
|
Qib |
Khoom siv Tus lej |
MPa los yog N / mm2 | ||
|---|---|---|---|---|
| Min Yield Point |
Tensile zog |
|||
| WT: 16mm Max | WT: 16- 40mm | |||
| 19mn 5 | 1.0482 | - | 315 | 510~610 |
Txheem: DIN 17175
Qib: 19Mn5
Loj: OD ({{0}}mm) x WT (0.5-15mm)
Sab nraud Dimensions: 4.0mm - 60.0mm
Phab ntsa Thickness: 0.5mm - 8mm
Ntev: max 6000mm
Cov khoom tso tawm

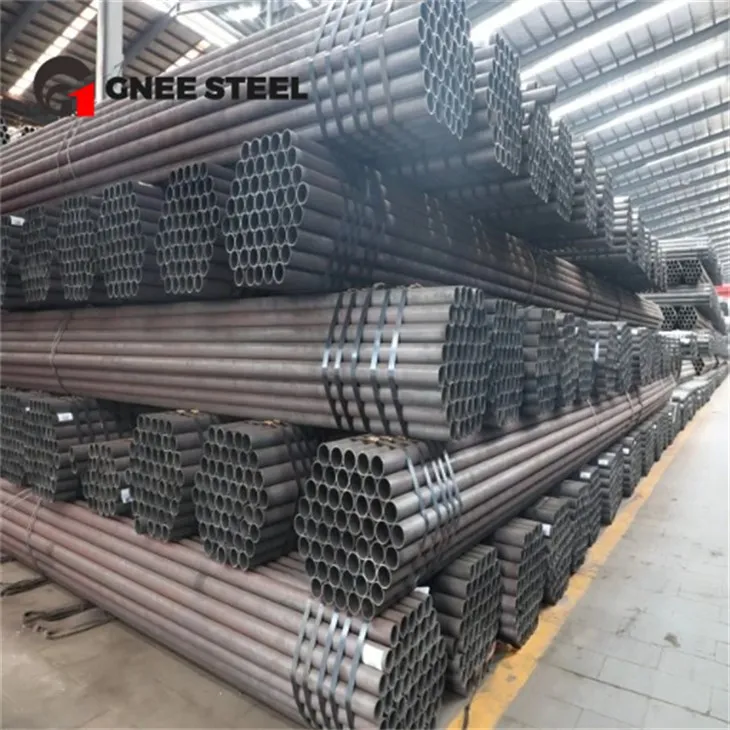

DIN 17175 19Mn5 carbon steel kav
Vim li cas thiaj xaiv GNEE
GNEE tshwj xeeb hauv kev xa tawm cov pa roj carbon zoo, galvanized, alloy steel kav, thiab lwm yam, nrog rau cov khoom lag luam customized raws li cov neeg siv khoom tshwj xeeb.
GNEE muaj ntau dua 100, 000 tons ntawm qhov chaw khaws cia txhua xyoo, uas tuaj yeem lav qhov khoom xa tuaj hauv lub sijhawm luv. Nrog cov khoom zoo, tus nqi qis thiab cov kev pabcuam zoo, nws tau txais txiaj ntsig zoo los ntawm cov neeg siv khoom.
Yog tias muaj lus nug, thov hu rau peb dawb los ntawm E-mail lossis Xov Tooj.sales@gneetube.com
GNEE Cov neeg siv khoom tuaj xyuas
GNEE GROUP PARTICIPATED IN THE NECC EXHIBITION
GNEE Factory Environment
GNEE packaging thiab Shipping
FAQ
Q. Peb tuaj yeem lav qhov zoo li cas?
A. Ib txwm ua qauv ua ntej ua ntej ntau lawm; Kev soj ntsuam zaum kawg ua ntej ua zaub mov xa tuaj;
Q.Dab tsi koj tuaj yeem yuav los ntawm peb?
A.seamless steel raj, steel phaj, Round steel, Welded yeeb nkab
Q.Koj puas muaj daim ntawv pov thawj?
A. Yog, peb muaj ISO thiab API Certificate.
Cim npe nrov: din 17175 19mn5 seamless carbon steel yeeb nkab, Tuam Tshoj din 17175 19mn5 seamless carbon steel yeeb nkab manufacturers, lwm tus neeg, Hoobkas
