E215 seamless precision raj tuaj yeem siv los tsim cov khoom siv hluav taws xob siab thiab cov kav dej xa dej, xws li tsheb, maus taus, khoom siv tub yees, hydraulic qhov chaw, pneumatic thooj voos kheej kheej, thiab lwm yam.
EN 10305-1 E215 txias-draw precision raj xa los ntawm GNEE tsis tsuas yog muaj qhov raug siab qhov tseeb thiab qhov zoo ntawm qhov tiav, tab sis kuj tuaj yeem ua tau raws li qhov yuav tsum tau muaj ntawm kev ua haujlwm siab thiab ruaj khov. Thiab nws muaj tensile zog, tawm los taw tes thiab elongation los yog elongation nyob rau hauv txawv kev kho cua sov los yog lub xeev. Piv txwv li, nyob rau hauv lub xeev normalized (+N), nws tensile lub zog yog 290 ~ 430 MPa, lub yield point yog ntau tshaj los yog sib npaug rau 215 MPa, thiab elongation los yog elongation yog ntau tshaj los yog sib npaug rau 30%.
Cov ntaub ntawv khoom
Tshuaj muaj pes tsawg leeg ntawm EN 10305-1 E215 Precision seamless yeeb nkab
| Qib Steel | Chemical Components (%) | ||||||
| Lub npe hlau | Hlau Number | C max. |
Si max. |
Mn max. |
P max. |
S max. |
AL min. |
| E215 | 1.0212 | 0.10 | 0.05 | 0.7 | 0.025 | 0.025 | 0.025 |
| Khoom npe | DIN2391 Cold Drawn Precision Seamless Carbon Steel Tubes, E215, E235, E255, | |
| OD | 1/8"--48'' | |
| Thickness | 1mm -60 hli | |
| Ntev | SRL, DRL, 5.8M, 11.8M | |
| Txheej txheem | Kub dov / kub nthuav dav / txias kos / txias dov | |
| Kev siv | Kev pabcuam kub kub | |
| Nto | Bared Dub Painting, Galvanized, Txheej | |
| Proctor | Yas cap | |
| Pob | Bundles, Bulk | |
| Kev tshuaj xyuas | Nrog Kev Ntsuas Hydraulic, Kev Ntsuas Ultrasonic lossis X-ray Test | |
| Daim ntawv pov thawj | ISO9001; 2000 | |
| Hnub xa khoom | Tsawg dua 15/20/25/30/40/50/60 Hnub Raws li Qhov Muaj | |
| Kev Them Nyiaj: | L / C los yog T / T | |
Cov khoom tso tawm

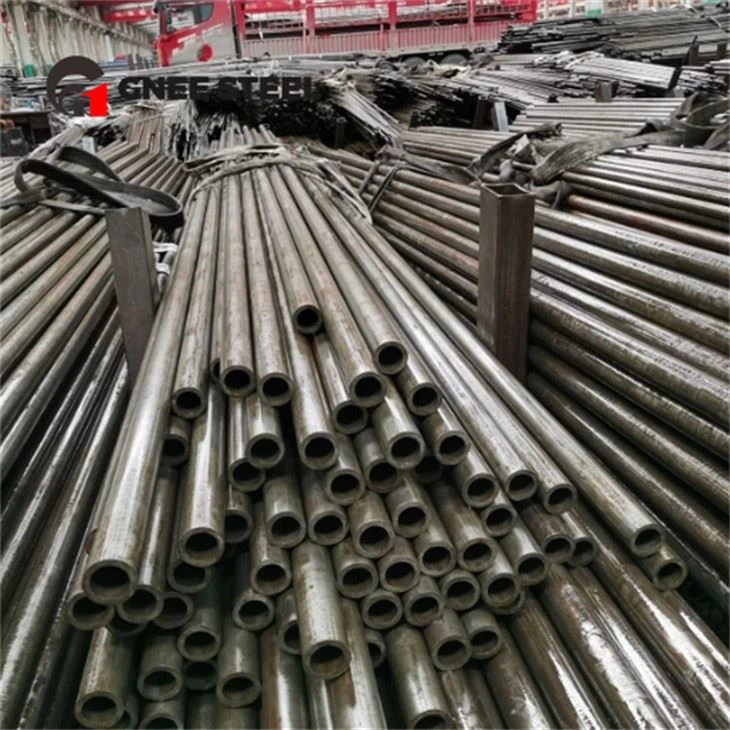

EN 10305-1 E215 High precision seamless steel yeeb nkab
Vim li cas thiaj xaiv GNEE
GNEE muaj 10 kub dov seamless steel yeeb nkab ntau lawm kab thiab 5 txias-draw seamless steel yeeb nkab ntau lawm kab, muaj peev xwm ua tau seamless kav ntawm ntau yam specifications thiab cov ntaub ntawv.
Peb cov khoom raug xa tawm mus rau ntau tshaj 60 lub teb chaws thiab cheeb tsam suav nrog Russia, Canada, Is Nrias teb, Brazil, thiab Southeast Asia.
GNEE tau tsim kom muaj kev tswj xyuas zoo raws li ISO9001: 2008 thiab tau siv tag nrho cov kev tswj kom zoo.
Yog tias koj xav paub ntau ntxiv txog peb lub tuam txhab lossis peb cov khoom, thov koj xav tiv tauj peb.sales@gneetube.com
