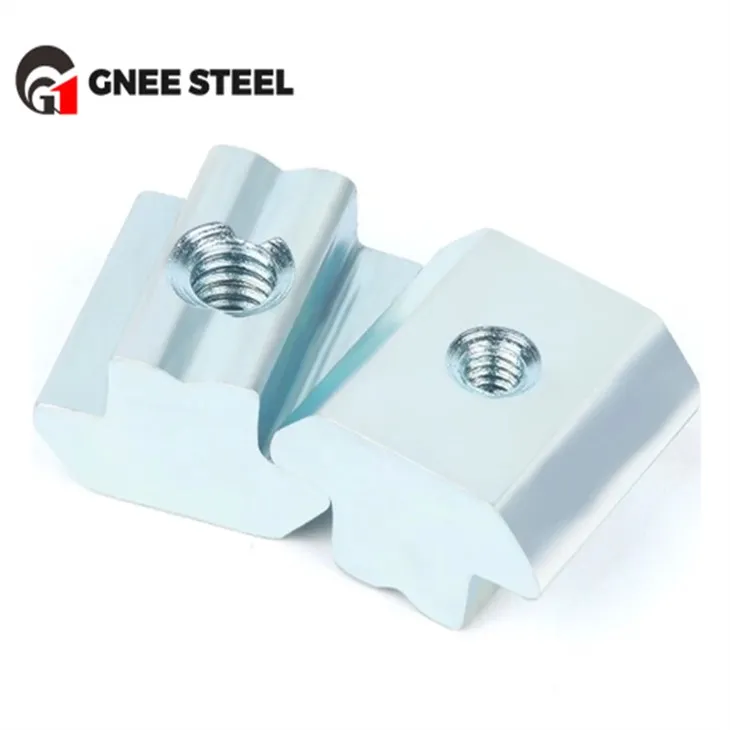

DIN 508 T-slot txiv ntoo yog German tus qauv fastener, tshwj xeeb tshaj yog tsim los siv rau hauv T-slots, nrog rau ntau yam kev siv, tshwj xeeb tshaj yog nyob rau hauv kev lag luam kev lag luam. DIN 508 T-slot txiv ntseej yog ua los ntawm stainless hlau (AISI 303 / AISI 316Ti) thiab carbon hlau (8.8 qib). DIN 508 T-slot txiv ntoo muaj ntau yam kev kho mob saum npoo, suav nrog tab sis tsis txwv rau cov zinc plating dawb, zinc plating daj, zinc plating dub, tin plating, npib tsib xee plating, tooj liab plating, thiab lwm yam.
GNEE muab DIN 508 T-slot txiv ntseej nyob rau hauv ntau qhov ntau thiab tsawg thiab specifications, nrog xov specifications los ntawm M6 mus rau M36 muaj nyob rau raws li cov kev xav tau ntawm ntau daim ntawv thov.
Cov ntaub ntawv khoom
| Ntsia Hlau Xov | M4 | M5 | M6 | M8 | M10 | M12 | M16 | |
| d | ||||||||
| P | Suab | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 |
| n | Nominal Loj | 5 | 6 | 8 | 10 | 12 | 14 | 18 |
| max | 4.7 | 5.7 | 7.7 | 9.7 | 11.7 | 13.7 | 17.7 | |
| min | 4.5 | 5.5 | 7.5 | 9.5 | 11.4 | 13.4 | 17.4 | |
| s | max | 9 | 10 | 13 | 15 | 18 | 22 | 28 |
| min | 8.5 | 9.5 | 12.5 | 14.5 | 17.5 | 21.5 | 27.5 | |
| h | 6.5 | 8 | 10 | 12 | 14 | 16 | 20 | |
| k | max | 3 | 4 | 6 | 6 | 7 | 8 | 10 |
| min | 2.7 | 3.5 | 5.5 | 5.5 | 6.5 | 7.5 | 9.5 | |
Cov khoom tso tawm
Ceev rau T-slots DIN 508 txhim kho
Vim li cas thiaj xaiv GNEE
GNEE yog ib lub tuam txhab OEM fastener manufacturing, plating / tiav thiab muaj ntau lawm tuam txhab. Nrog rau ntau tshaj 16 xyoo ntawm stainless hlau fastener manufacturing kev, kev lag luam kev thiab lub xeev-of-the-art chaw. Peb tuaj yeem muab cov hlau tsis muaj steel ntau tshaj plaws los yog tsim tshwj xeeb fasteners.
Cov khoom raug xa tawm mus rau ntau tshaj 60 lub teb chaws thiab cheeb tsam suav nrog Russia, Canada, Is Nrias teb, Brazil, thiab Southeast Asia.
Yog tias muaj lus nug, thov hu rau peb dawb los ntawm E-mail lossis Xov Tooj.sales@gneetube.com
GNEE CUSTOMER VAJTSWV
GNEE GROUP PARTICIPATED IN THE NECC EXHIBITION
GNEE Factory Environment
GNEE packaging thiab Shipping
FAQ
Q. Koj tus nqi zoo li cas?
A. Cov khoom zoo, tus nqi tsim nyog. Thov muab ib qho lus nug rau kuv thiab peb yuav muab ib nqe lus rau koj tam sim ntawd.
Q. Koj tswj qhov zoo li cas?
A. Peb xav kom lub tuam tsev tswj xyuas qhov zoo los tshuaj xyuas txhua qhov kev sib txuas ntawm txhua pawg ntawm cov khoom. Tom qab cov khoom tiav lawm, peb tuaj yeem muab koj nrog MTC thiab daim ntawv pov thawj Hoobkas.
Cim npe nrov: Tuam Tshoj din 508 t-slot txiv ntseej stainless hlau, Tuam Tshoj din 508 t-slot txiv ntseej stainless hlau manufacturers, lwm tus neeg, Hoobkas
