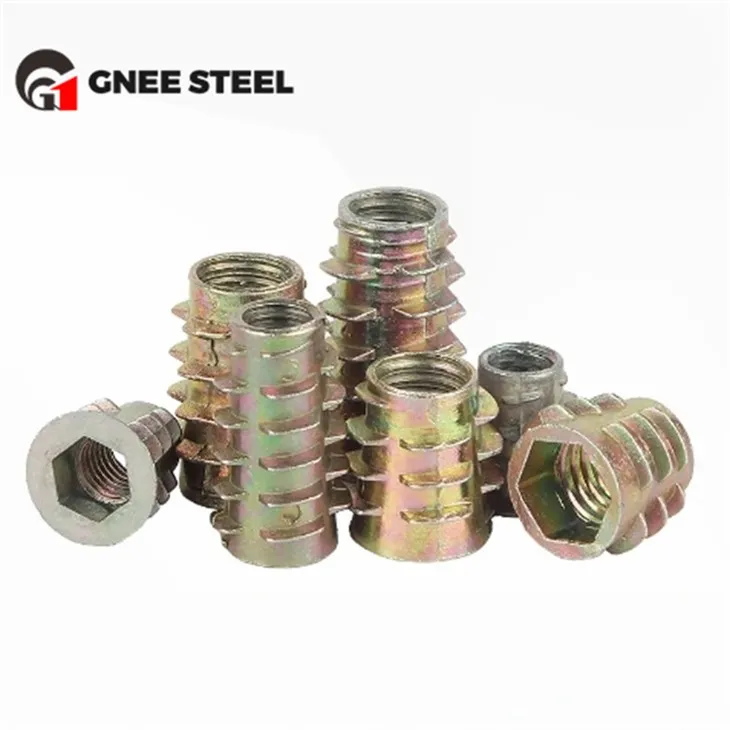

DIN 7965 slotted thread inserts yog tus kheej-tapping ntsia hlau inserts uas tau dav siv nyob rau hauv ntau yam lag luam, nrog rau kev lag luam tsheb, tsheb ciav hlau kev lag luam, shipbuilding kev lag luam, khoom siv hauv tsev, siv machinery, chaw ua hauj lwm machinery, electronics, engineering plastics, modular rooj tog, txhuas. tuag-casting, thiab lwm yam.
GNEE tuaj yeem muab ntau yam khoom siv xws li stainless hlau, carbon hlau, thiab tooj dag kom tau raws li qhov xav tau ntawm cov ntawv thov sib txawv. Haum rau kev kho cov xov puas lossis raws li txoj kev sib txuas tshiab, muab cov kev xaiv hloov yooj yim.
Cov ntaub ntawv khoom
| Technical Data & Muaj | ||||
| Xov Diameter | Ntev (mm) | Qhov (socket) A/F (mm) | Pilot Qhov (mm) | Pitch (mm) |
| M4 | 10.0 | 4 | – | 0.70 |
| M5 | 10.0 | 5 | – | 0.80 |
| M6 | 13.0 | 6 | 8.5 rau 8.7 | 1.00 |
| M8 | 13.0 | 8 | – | 1.25 |
| M8 | 20.0 | 8 | – | 1.25 |
Cov khoom tso tawm
DIN 7965 Screwed Inserts (Screw Plugs)
Thaum txhim kho DIN 7965 slotted threaded inserts, cov ntsiab lus hauv qab no yuav tsum raug sau tseg:
1. Pre-drilling: Nyob ntawm cov khoom siv, nws yog ib qho tsim nyog yuav tsum tau xa mus rau qhov drilling loj specifications rau pre-drilling. Rau cov ntaub ntawv uas muaj zog dua, nws raug nquahu kom nce me ntsis hauv qab lub qhov hauv qhov drilling ntau.
2. Vertical installation: Lub slotted kawg ntawm lub tes tsho ntsia hlau yog tig los thiab tag nrho ntsia rau hauv pem hauv ntej kawg ntawm lub cuab tam. Nws yuav tsum tau hu rau lub workpiece vertically. Thaum txhim kho ({{1} } pitches), nws yog ib qho tsim nyog kom paub meej tias nws yog raws li hauv qab lub qhov thiab yuav tsum tsis txhob tilted. Thaum tilting pom, nws yuav tsum tau nres tam sim ntawd thiab rov kho dua ua ntej siv. Tom qab nkag mus rau 1/3-1/2, nws tsis tuaj yeem hloov kho.
3. Cov kev xav tau los ua ke: Tom qab sib dhos, tus kheej tapping ntsia hlau yuav tsum muaj tsawg kawg yog 1 hli hauv qab ntawm qhov chaw kom ntseeg tau tias nws ua haujlwm tau zoo thiab tiv thaiv kev puas tsuaj los ntawm kev sib tsoo.
Vim li cas thiaj xaiv GNEE
GNEE yog ib lub tuam txhab OEM fastener manufacturing, plating / tiav thiab muaj ntau lawm tuam txhab. Nrog rau ntau tshaj 16 xyoo ntawm stainless hlau fastener manufacturing kev, kev lag luam kev thiab lub xeev-of-the-art chaw. Peb tuaj yeem muab cov hlau tsis muaj steel ntau tshaj plaws los yog tsim tshwj xeeb fasteners.
Cov khoom raug xa tawm mus rau ntau tshaj 60 lub teb chaws thiab cheeb tsam suav nrog Russia, Canada, Is Nrias teb, Brazil, thiab Southeast Asia.
Yog tias muaj lus nug, thov hu rau peb dawb los ntawm E-mail lossis Xov Tooj.sales@gneetube.com
GNEE Cov neeg siv khoom tuaj xyuas
GNEE GROUP PARTICIPATED IN THE NECC EXHIBITION
GNEE Factory Environment
GNEE packaging thiab Shipping
FAQ
Q. Koj tus nqi zoo li cas?
A. Cov khoom zoo, tus nqi tsim nyog. Thov muab ib qho lus nug rau kuv thiab peb yuav muab ib nqe lus rau koj tam sim ntawd.
Q. Koj tswj qhov zoo li cas?
A. Peb xav kom lub tuam tsev tswj xyuas qhov zoo los tshuaj xyuas txhua qhov kev sib txuas ntawm txhua pawg ntawm cov khoom. Tom qab cov khoom tiav lawm, peb tuaj yeem muab koj nrog MTC thiab daim ntawv pov thawj Hoobkas.
Cim npe nrov: din 7965 slotted threaded inserts, Tuam Tshoj din 7965 slotted threaded inserts manufacturers, lwm tus neeg, Hoobkas
