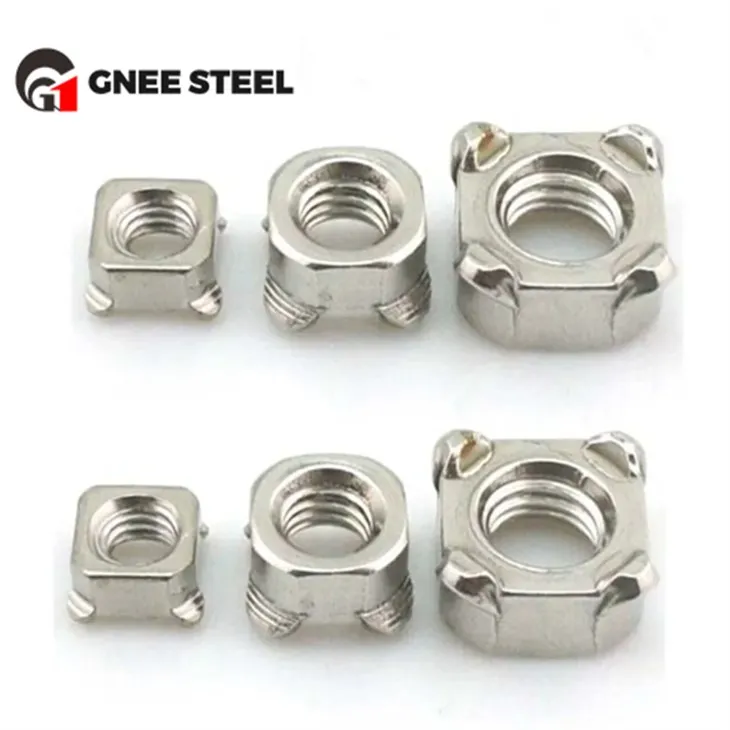

DIN928 square weld txiv ntoo ua raws li German kev lag luam tus qauv DIN 928. Cov txiv ntoo muaj ntau yam ntawm nominal diameters, xws li M2.5 txog M56.
DIN928 square weld ceev feem ntau yog ua los ntawm cov hlau, thiab tseem muaj cov qauv stainless hlau.
Kev kho saum npoo yog muab los ntawm GNEE tuaj yeem yog xiav-dawb zinc-plated los txhim kho nws cov corrosion kuj thiab zoo nkauj. Tsis tas li ntawd, muaj kev kho deg xws li blackening.
DIN928 square weld ceev yog tsuas yog siv rau vuam ntawm qhov chaw uas yuav tsum tau fastened, thiab yog tsau los ntawm vuam. Lawv tsim nyog rau kev sib txuas ntawm ntau yam khoom siv tshuab thiab cov qauv. Siv dav hauv tshuaj, tshuab, kev tsim kho thiab lwm yam.
Cov ntaub ntawv khoom
| Xov loj | M4 | M5 | M6 | M8 | M10 | 7/16 UNF-2B ① |
7/16 UNF-2B ① |
M12 | M14 | M16 | ||
| D | ||||||||||||
| P | cov hniav ntxhib | 0.7 | 0.8 | 1 | 1.25 | 1.5 | / | / | 1.75 | 2 | 2 | |
| b | Nominal | 0.8 | 1 | 1.2 | 1.5 | 1.8 | 1.8 | 2 | 2 | 2.5 | 2.5 | |
| d 1 | min=npe | 5 | 6 | 7.5 | 10 | 12.5 | 12.5 | 13.5 | 13.5 | 16.8 | 18.8 | |
| tus nqi siab tshaj | 5.18 | 6.18 | 7.72 | 10.22 | 12.77 | 12.77 | 13.77 | 13.77 | 17.07 | 19.13 | ||
| d 2 | tus nqi siab tshaj | 4.2 | 5.25 | 6.3 | 8.4 | 10.5 | 11.7 | 11.7 | 12.6 | 14.7 | 16.8 | |
| d 3 | yam tsawg kawg nkaus | 6.4 | 8.2 | 9.1 | 12.8 | 15.6 | 15.6 | 17.4 | 17.4 | 20.4 | 22.4 | |
| h 1 | Nominal | 0.6 | 0.8 | 0.8 | 1 | 1.2 | 1.2 | 1.4 | 1.4 | 1.4 | 1.6 | |
| h 2 | yam tsawg kawg nkaus | 0.4 | 0.6 | 0.7 | 1.1 | 1.25 | 1.25 | 1.75 | 1.75 | 1.75 | 2 | |
| m | yam tsawg kawg nkaus | 3.2 | 3.9 | 4.7 | 6.14 | 7.64 | 8.64 | 8.64 | 9.14 | 10.97 | 12.57 | |
Cov khoom tso tawm
Stainless hlau DIN928 Square Weld Ceev
Vim li cas thiaj xaiv GNEE
GNEE yog tus thawj coj hauv kev lag luam fastener, muab cov kev pabcuam dav dav suav nrog kev tsim, kev tsim kho, kev tsim khoom, kev muag khoom thiab kev txhawb nqa tom qab muag.
Peb tshwj xeeb hauv kev tsim cov ntsia hlau, thauj tog rau nkoj, bolts, ceev thiab formwork accessories, ntxhua khaub ncaws, ntsia hlau rivets thiab lwm yam khoom siv, thiab nruj me ntsis ua raws li cov qauv kev tswj hwm zoo thoob plaws hauv cov txheej txheem tsim khoom.
Cov khoom raug xa tawm mus rau ntau tshaj 70 lub teb chaws suav nrog Middle East, Russia, Asia, Europe, Africa thiab America.
Yog tias muaj lus nug, thov hu rau peb dawb los ntawm E-mail lossis Xov Tooj.sales@gneetube.com
GNEE CUSTOMER VAJTSWV
GNEE GROUP PARTICIPATED IN THE NECC EXHIBITION
GNEE Factory Environment
GNEE packaging thiab Shipping
FAQ
Q.Koj puas muaj kev tswj xyuas zoo?
A. Yog, peb tau txais BV.SGS ntawv pov thawj.
Q.Koj puas tuaj yeem muab cov qauv?
A. Yog, cov qauv dawb muaj rau qhov ntau thiab tsawg, tab sis cov neeg yuav khoom yuav tsum them tus nqi thauj khoom.
Q. Koj nyob qhov twg? Kuv tuaj yeem tuaj xyuas koj?
A.Sure, koj tuaj yeem tuaj xyuas peb lub Hoobkas txhua lub sijhawm.
Cim npe nrov: Tuam Tshoj din928 square weld ceev manufacturers, lwm tus neeg, Hoobkas
