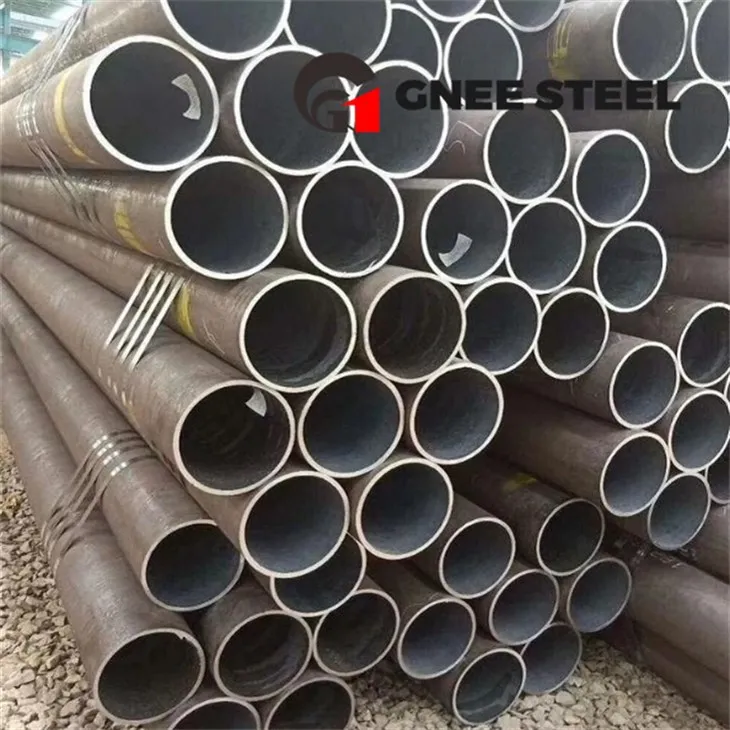

DIN17175 13CrMo44 seamless boiler raj xa los ntawm GNEE yog tsim raws li tus qauv kev lag luam German (DIN 17175). 13CrMo44 steel raj feem ntau yog xa hauv lub xeev zoo, thiab tseem tuaj yeem ua tau zoo + tempered + quenched raws li cov neeg siv khoom xav tau. Txhawm rau kom ntseeg tau qhov zoo thiab kev nyab xeeb ntawm lub raj steel, yuav tsum tau kho qhov tsis zoo, xws li kev tshawb nrhiav ib-theem, ob-theem nrhiav pom, thiab peb-theem nrhiav tau.
Qhov ntau thiab tsawg ntawm 13CrMo44 Boiler Seamless Tube muaj xws li tuab 8mm-100mm, dav 1600mm-2500mm, ntev 6000mm-12000mm, thiab lwm yam. Nws qhov ntom yog li 7.85g / cm³.
Cov ntaub ntawv khoom
Qauv: DIN17175
Cov qauv sib xws: GB5310
Sab nraud txoj kab uas hla: 4.0-76 {2}} hli
Phab ntsa thickness: 0 5-0.8 hli
Ntev: 5. 8-12m
Chemical Composition thiab Mechanical Property of DIN 17175 13CrMo44 boiler steel yeeb nkab
| Qib | Khoom siv | C | Si | Mn | P | S | Cr | Mo |
| 13 CrMo44 | 1.7335 | 0.10-0.18 | 0.10-0.35 | 0.40-0.70 | 0.035 | 0.035 | 0.70-1.10 | 0.45-0.65 |
| Qib | Khoom siv | Tensile zog N / mm2 | Yield zog thickness, mm | Elongation (L=5ua) | Ntsig cuam tshuam lub zog | |||
| Tsawg dua los yog sib npaug li 16 | >16 Tsawg dua lossis sib npaug li 40 | >40 Tsawg dua los yog sib npaug rau 60 | ||||||
| N/mm2 min | ||||||||
| 13 CrMo44 | 1.7335 | 440-590 | 290 | 290 | 280 | 22 | 20 | 34 |
Cov khoom tso tawm
13CrMo44 Carbon Steel Boiler Tubes
Vim li cas thiaj xaiv GNEE
GNEE muaj 14 steel ntau lawm kab, 10 ua khoom siv rau kev ua, khoov, txheej, kho cua sov, txiav, drilling, beveling, quenching thiab tempering, nto kho, thiab lwm yam., ua tiav cov cuab yeej kuaj thiab muaj zog technical force. Lub peev xwm tsim tau txhua xyoo yog ntau dua 60, 000 tons. GB, ASTM, JIS, DIN thiab lwm yam qauv tuaj yeem siv tau.
Txhawm rau pab koj daws cov kev tsis txaus siab thiab muab cov kev daws teeb meem, thov hu rau peb kom tau txais cov lus tsocai!sales@gneetube.com
GNEE CUSTOMER VAJTSWV
GNEE Factory Environment
GNEE packaging thiab Shipping
FAQ
Q. Koj nyob qhov twg? Kuv tuaj yeem tuaj xyuas koj?
A.Sure, koj tuaj yeem tuaj xyuas peb lub Hoobkas txhua lub sijhawm.
Q.Koj qhov kev pab cuam tom qab muag yog dab tsi?
A. Peb muab kev pab cuam tom qab muag thiab 100% kev ruaj ntseg zoo rau peb cov khoom.
Q. Koj lub sijhawm xa khoom yog dab tsi?
A. Lub sij hawm xa tuaj feem ntau yog li 1 lub hlis, yog tias peb muaj Tshuag, peb tuaj yeem xa tuaj hauv 7 hnub.
Cim npe nrov: din17175 13crmo44 boiler steel yeeb nkab, Tuam Tshoj din17175 13crmo44 boiler steel yeeb nkab manufacturers, lwm tus neeg, Hoobkas
