EN 10217 welded steel kav muaj tsib qhov kev siv siab sib txawv. 10217-1 yog rau chav tsev kub, -2 yog rau qhov kub thiab txias, -3 yog rau cov kav dej zoo, -4 yog rau qhov kub thiab txias, thiab -5 yog rau kev pabcuam kub.
GNEE yog cov chaw tsim khoom thiab cov chaw muag khoom ntawm EN10217-2 P235GH steel kav thiab lwm yam steel kav. Cov kav dej tuaj yeem welded, seamless, ERW, EFW, prefabricated los yog cais los ntawm txoj kev tsim khoom.
Lub P235GH alloy steel kav muab los ntawm GNEE feem ntau smelted nyob rau hauv hluav taws xob arc furnaces thiab oxygen top- blown converters. Rau cov kev xav tau siab, lawv tseem yuav siv txoj hauv kev xws li kev ua kom zoo sab nraum lub qhov cub, lub tshuab nqus tsev induction rauv smelting lossis ob chav nqus smelting. P235GH ncaj seam steel kav yog dav siv nyob rau hauv ntau industries, xws li roj av, tshuaj, fais fab mov, boilers, thiab lwm yam.
Cov ntaub ntawv khoom
EN 10217-2 Pipe Specification
| Hom | ERW (Electric Resistance Welded Pipes) |
| Txuj | TS EN 10217 |
| Sab nraud | 1-24 ntiv tes (33. {2}}.6mm) |
| Ntev | Min 3 Meters, Max18 Meters, los yog raws li tus neeg yuav tsum tau muaj. |
| Loj | NPS 1 TO NPS 24 [DN25 txog DN 600], nrog nominal (nruab nrab) phab ntsa tuab raws li muab hauv ASME B 36.10M lossis raws li cov neeg siv khoom xav tau. |
| Thickness | 3-12 hli |
Tshuaj muaj pes tsawg leeg ntawm EN 10217-2 P235GH hlau raj
| Tshuaj muaj pes tsawg leeg | Qhov siab tshaj plaws (%) |
|---|---|
| Cov pa roj carbon (C) | 0.16 |
| Silicon (Si) | 0.35 |
| Manganese (Mn) | 1.2 |
| Phosphorus (P) | 0.025 |
| Sulfur (S) | 0.02 |
| Chromium (Cr) | 0.3 |
| Nickel (Ni) | 0.3 |
| Copper (Cu) | 0.3 |
| Molybdenum (hli) | 0.08 |
| Titanium (Ti) | 0.03 |
| Vanadium (V) | 0.02 |
| Niobium (Nb) | 0.01 |
| Aluminium (Al) | 0.02 |
Cov khoom tso tawm

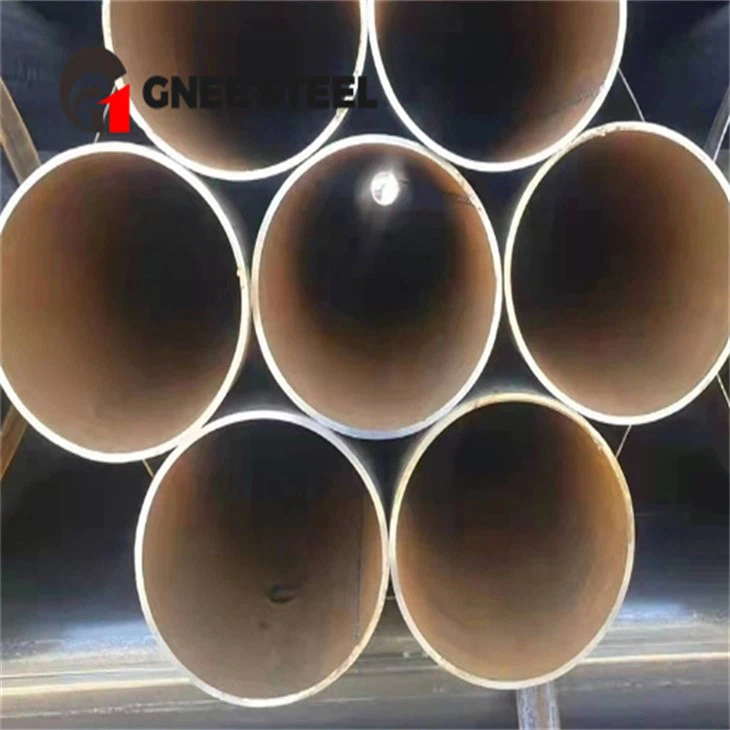

EN 10217-2 P235GH steel yeeb nkab
Vim li cas thiaj xaiv GNEE
GNEE muaj peev xwm tsim tau txhua xyoo ntau dua 500, 000 tons, ua haujlwm rau ntau yam kev lag luam thiab kev lag luam xws li roj thiab roj rho tawm thiab kev thauj mus los, shipbuilding thiab mechanical engineering, thiab kev tsim kho vaj tse.
GNEE cov kev pabcuam ntxiv suav nrog kev txiav, kev kho saum npoo, sib sau, ntawv hlau, vuam, machining, thiab lwm yam, uas pab txhawb kev xav tau ntawm ntau tus neeg siv khoom.
Yog tias koj tab tom nrhiav P235GH cov kav dej, thov hu rau peb rau kev tsocai!sales@gneetube.com
GNEE CUSTOMER VAJTSWV
GNEE Factory Environment
GNEE packaging thiab Shipping
FAQ
Q: Koj puas muaj kev tswj xyuas zoo?
A: Yog lawm, peb muaj peb tus kheej lub chaw soj nstuam zoo. Peb tog kuaj kev pabcuam kuj muaj.
Q: Koj muab kev pabcuam dab tsi?
A: Kev pabcuam customized rau txhua tus neeg siv khoom, thov hu rau peb!
Q. Koj lub sijhawm ua haujlwm yog dab tsi?
A. Cov Tshuag tsis tu ncua feem ntau yog 10 hnub. Nyob ntawm cov khoom.
