DIN6334 Hex Coupling Nut yog German standardized hexagonal txiv ntoo, uas yog dav siv nyob rau hauv ntau yam mechanical thiab lub tsev sib txuas. DIN 6334 Hex Coupling Nut feem ntau yog ua los ntawm carbon steel, stainless hlau (xws li 304, 316) thiab lwm yam ntaub ntawv los xyuas kom meej nws lub zog thiab corrosion kuj. Kev kho deg muaj xws li zinc dawb, Dacromet, Geomet, polishing, thiab lwm yam. Raws li daim ntawv thov, qib ntawm cov txiv ntoo tuaj yeem yog qib 6, A2-70/A4-70, thiab lwm yam. Cov xov specifications muaj xws li M6 mus rau M48 kom tau raws li cov kev cai sib txawv. Dav siv nyob rau hauv choj engineering, machinery manufacturing, kev tsim kho thiab lwm yam teb raws li fasteners.
Cov ntaub ntawv khoom
| Xov specification | M6 | M8 | M10 | M12 | M14 | M16 | M18 | M20 | M22 | M24 | M27 | M30 | M33 | M36 | ||
| d | ||||||||||||||||
| P | suab | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3.5 | 3.5 | 4 | |
| s | 10 | 13 | 17 | 19 | nees nkaum ob | nees nkaum plaub | 27 | 30 | 32 | 36 | 41 | 46 | 50 | 55 | ||
| L | 18 | nees nkaum plaub | 30 | 36 | 42 | 48 | 54 | 60 | 66 | 72 | 81 | 90 | 99 | 108 | ||
| thiab | 11.05 | 14.38 | 18.9 | 21.1 | 24.49 | 26.75 | 29.56 | 33.53 | 35.03 | 39.98 | 45.2 | 50.85 | 55.37 | 60.79 | ||
| Ntau txhiab daim (steel) ≈kg | 7 | 18 | 42 | 63 | 95.5 | 122 | 140 | 240 | 300 | 412 | 608 | 825 | 1100 | 1470 | ||
Cov khoom tso tawm

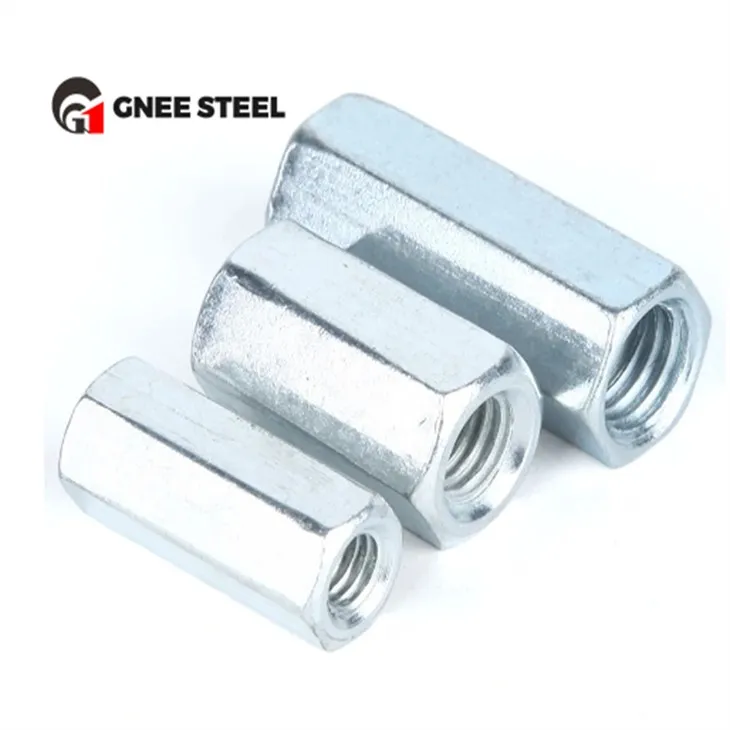

DIN 6334 Hexagon coupling ceev
Vim li cas thiaj xaiv GNEE
GNEE yog ib lub tuam txhab OEM fastener manufacturing, plating / tiav thiab muaj ntau lawm tuam txhab. Nrog rau ntau tshaj 16 xyoo ntawm stainless hlau fastener manufacturing kev, kev lag luam kev thiab lub xeev-of-the-art chaw. Peb tuaj yeem muab cov hlau tsis muaj steel ntau tshaj plaws los yog tsim tshwj xeeb fasteners.
Cov khoom raug xa tawm mus rau ntau tshaj 60 lub teb chaws thiab cheeb tsam suav nrog Russia, Canada, Is Nrias teb, Brazil, thiab Southeast Asia.
Yog tias muaj lus nug, thov hu rau peb dawb los ntawm E-mail lossis Xov Tooj.sales@gneetube.com
GNEE CUSTOMER VAJTSWV
GNEE GROUP PARTICIPATED IN THE NECC EXHIBITION
GNEE Factory Environment
GNEE packaging thiab Shipping
FAQ
Q. Koj tus nqi zoo li cas?
A. Cov khoom zoo, tus nqi tsim nyog. Thov muab ib qho lus nug rau kuv thiab peb yuav muab ib nqe lus rau koj tam sim ntawd.
Q. Koj tswj qhov zoo li cas?
A. Peb xav kom lub tuam tsev tswj xyuas qhov zoo los tshuaj xyuas txhua qhov kev sib txuas ntawm txhua pawg ntawm cov khoom. Tom qab cov khoom tiav lawm, peb tuaj yeem muab koj nrog MTC thiab daim ntawv pov thawj Hoobkas.
Cim npe nrov: din6334 ntev hex coupling ceev, Tuam Tshoj din6334 ntev hex coupling ceev manufacturers, lwm tus neeg, Hoobkas
